IL50-112/5Tx1.5-M24x2

Maintenance-Free Bearing With Integrated Flange For Harsh Working Environments

Application: Disc Harrow

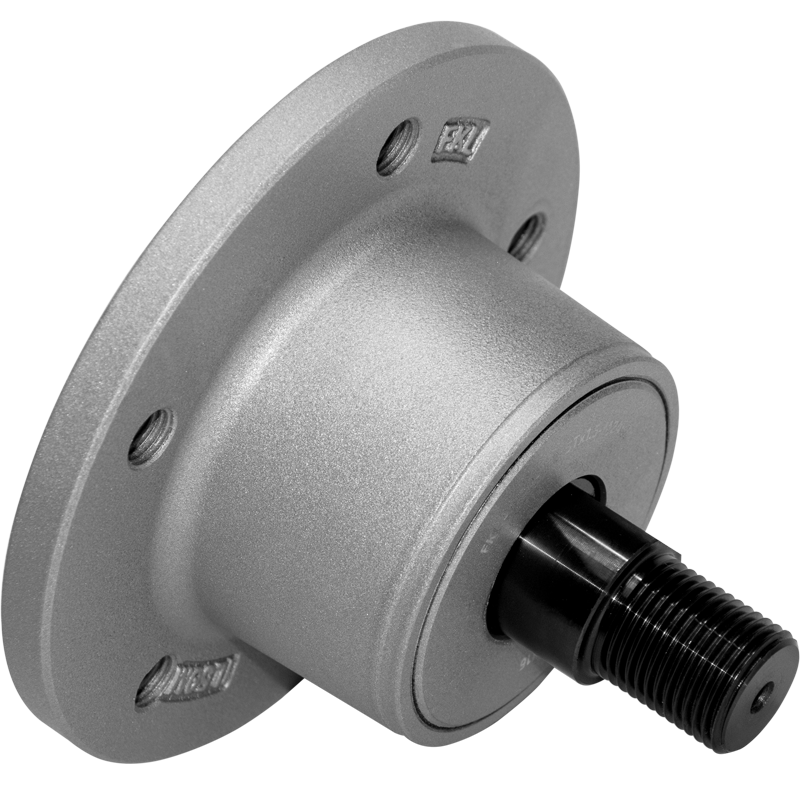

3D view

Technical Specification
JPitch circle diameter112mm
DOutside diameter 145mm
H/THole/Thread5xM12x1.5mm
dBore diameter30mm
CD-shape hole cut out dimension28mm
MOuther ThreadM24x2mm
LTotal length106mm
L1Total flange length60mm
ELength of D shape18mm
FLength of threaded part28mm
kgMass2.99kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.924kN

Tehnical Drawing

Sealing

O-RING + SHEET METAL SHIELD + RS SEAL / RS SEAL + DIRTBLOCK SEAL + DOUBLE SEAL + FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal, Double seal and Forged cover plate on the front side which is exposed to contaminants.

O-ring, Sheet metal shield and RS seal together with attached special disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

Additional double seal protects the bearing from contaminant penetration and ensures a longer service life of the bearing.

Sealing Drawing

IL50-112/5Tx1.5-M24x2

×

IL50-112/5Tx1.5-M24x2

×

Sealing Type:

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal, Double seal and Forged cover plate on the front side which is exposed to contaminants.

IL50-112/5Tx1.5-M24x2

×
