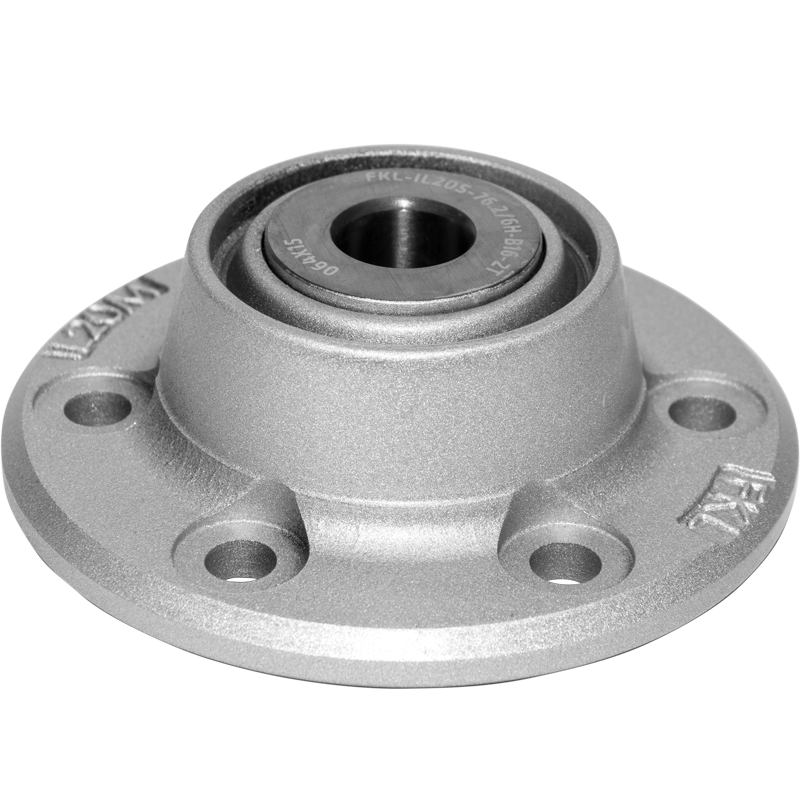

IL20S-76.2/6H-B16-2T
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine
3D view
| J | Pitch circle diameter | 76.2 | mm |
| D | Outside diameter | 100 | mm |
| H/T | Hole/Thread | 6x8.5 | mm |
| d1 | Bore diameter | 16 | mm |
| L | Overall length | 35 | mm |
| L1 | Total flange length | 30 | mm |
| L2 | Bearing width | 35 | mm |
| kg | Mass | 0.68 | kg |
| Cdyn | Dynamic load rating | 22 | kN |
| Co | Static load rating | 15.2 | kN |
| Pu | Fatigue load limit | 0.638 | kN |
Tehnical Drawing

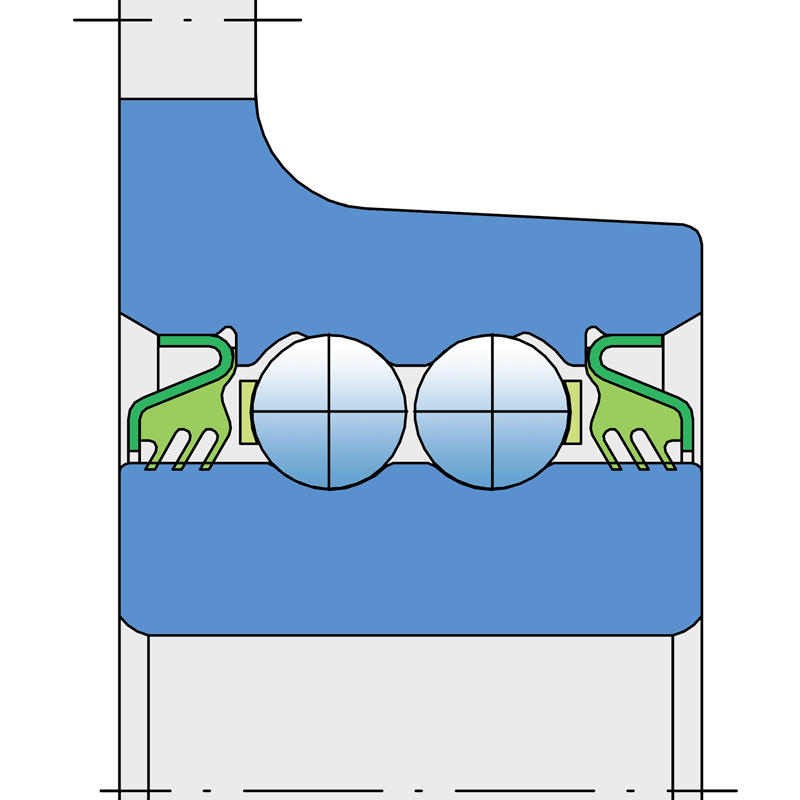

Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
