PL-7516-SM
Bearing Unit (Double row angular contact ball bearing in pressed steel housing)
Application: Seeding Machine
![](img/products/PL-7516-SM.png)
![](img/image.png)
3D view
![](img/3D/PL-7516-SM.png)
d | Bore diameter | 16 | mm |
D | Outside diameter | 92 | mm |
J | Pitch circle diameter | 75 | mm |
L1 | Total flange length | 34 | mm |
L | Total length | 41.55 | mm |
N | Hole diameter | 6.7 | mm |
kg | Mass | 0.54 | kg |
Cdyn | Dynamic load rating | 16.5 | kN |
Co | Static load rating | 11 | kN |
Pu | Fatigue load limit | 0.462 | kN |

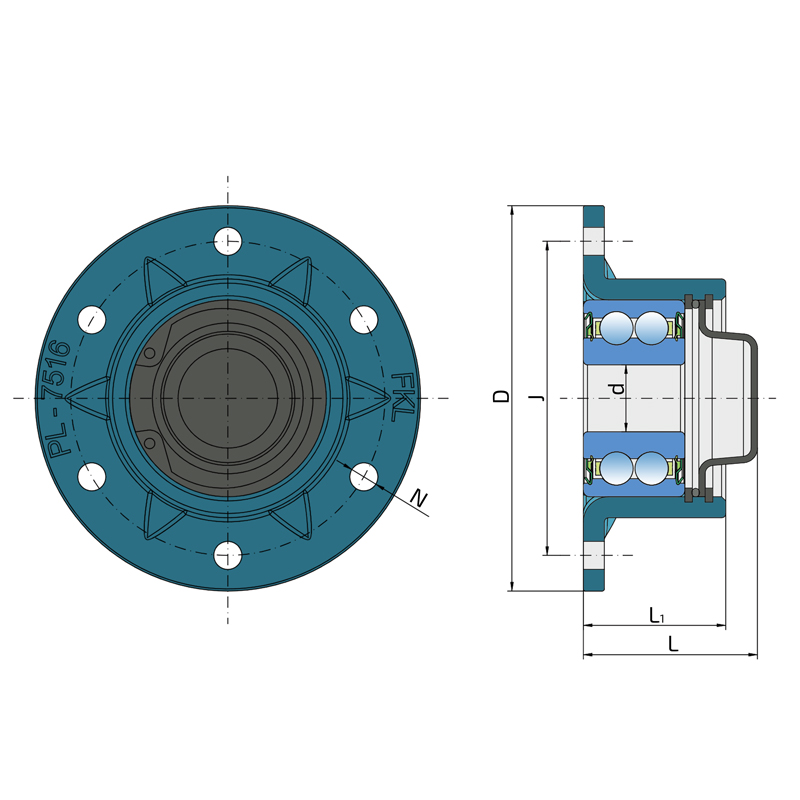

Tehnical Drawing
![](img/Drawings/PL-7516-SM.jpg)
Sealing
S SEAL / S SEAL + O-RING + METAL CAP
S seal on the base side and S seal, O-ring and Metal cap on the front side which is exposed to the environment.
Metal cap protects the nut and reduces the penetration of contaminants.
Sealing Drawing
![](img/seal_hub/PL-7516-SM.png?16032024)
