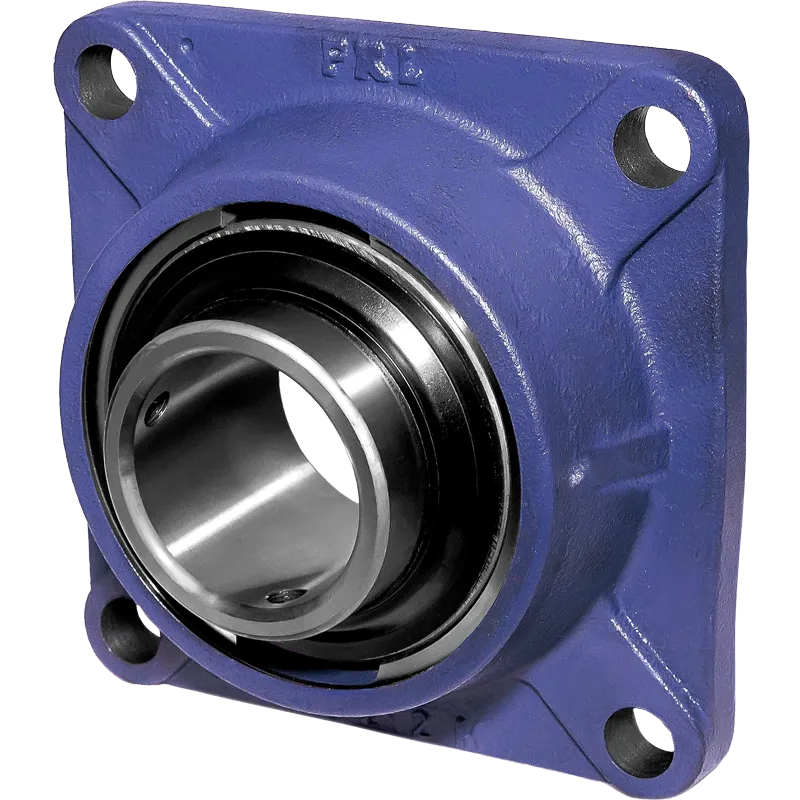

LEFN 210 2TB.H

Bearing Unit

Application: Universal Solution

3D view

Technical Specification
dBore diameter50mm
d1Outer diameter inner ring 62.5mm
LTotal length143mm
JDistance between the holes111mm
NHole diameterO 16H13mm
AOverall width54.6mm
A1Total housing width40mm
A2Housing flange thickness11mm
BWidth inner ring 51.6mm
kgMass2.6kg
CoStatic load rating23.2kN
CdynDynamic load rating35.1kN
PuFatigue load limit0.974kN

Tehnical Drawing

Sealing

PB SEAL / PB SEAL (2PB)

A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.

Sealing Drawing

LEFN 210 2TB.H

×

LEFN 210 2TB.H

×

Sealing Type:

5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination.
