W 208PPB2
Round Bore Series With Spherical Outer Ring - Non-Relubricable Type

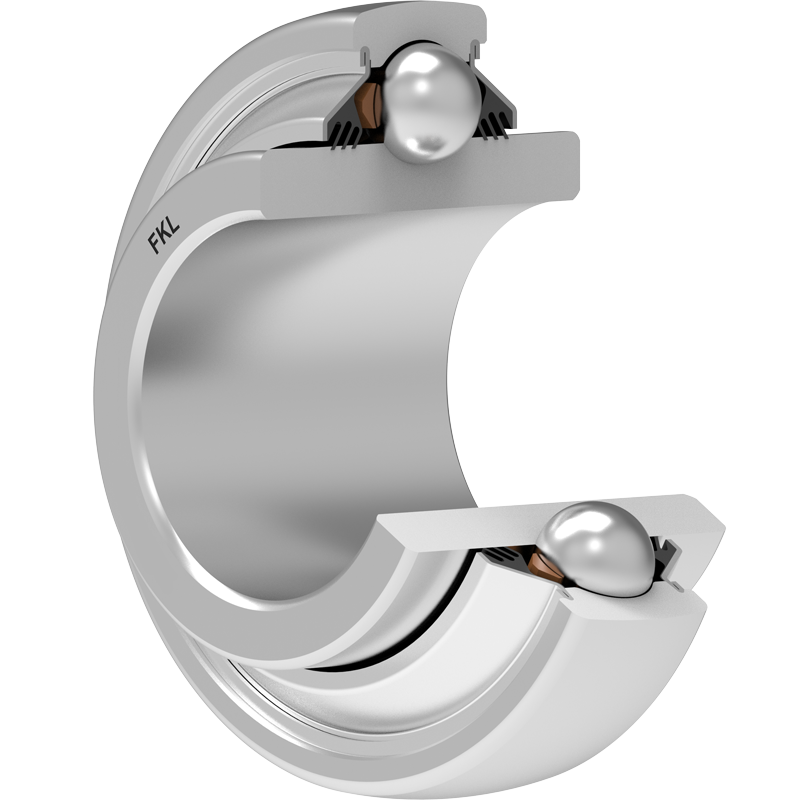

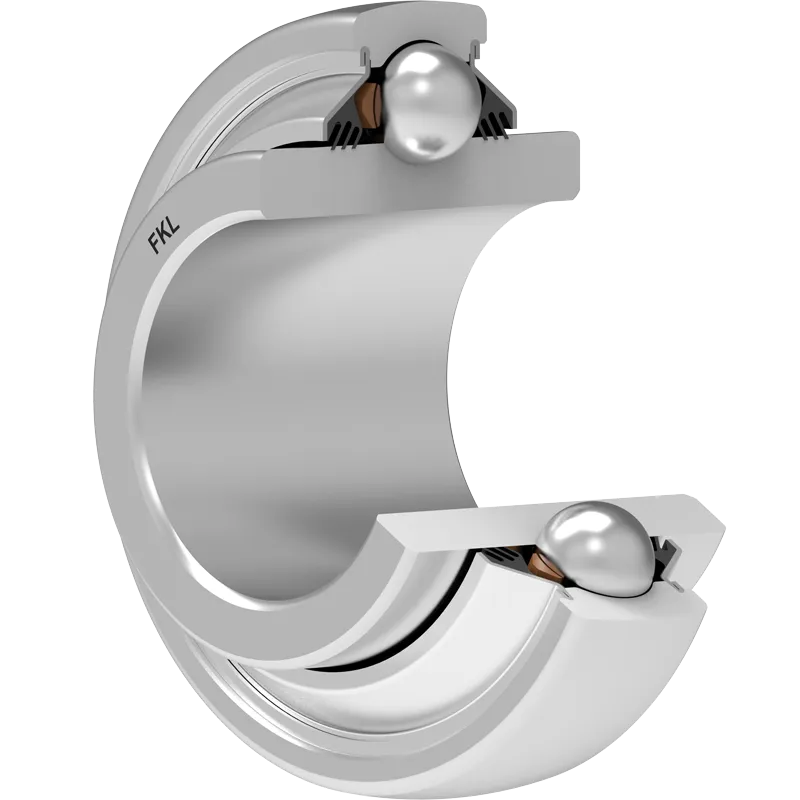

3D view
| d | Bore diameter | 1.5004 | inch |
| d | Bore diameter | 38.11 | mm |
| D | Outside diameter | 3.1496 | inch |
| D | Outside diameter | 80 | mm |
| B | Width inner ring | 1.691 | inch |
| B | Width inner ring | 42.96 | mm |
| C | Width outer ring | 0.709 | inch |
| C | Width outer ring | 18 | mm |
| d1 | Outer diameter inner ring | 2.047 | inch |
| d1 | Outer diameter inner ring | 52 | mm |
| kg | Mass | 0.72 | kg |
| Cdyn | Dynamic load rating | 32.5 | kN |
| Co | Static load rating | 19.8 | kN |
| Pu | Fatigue load limit | 0.832 | kN |

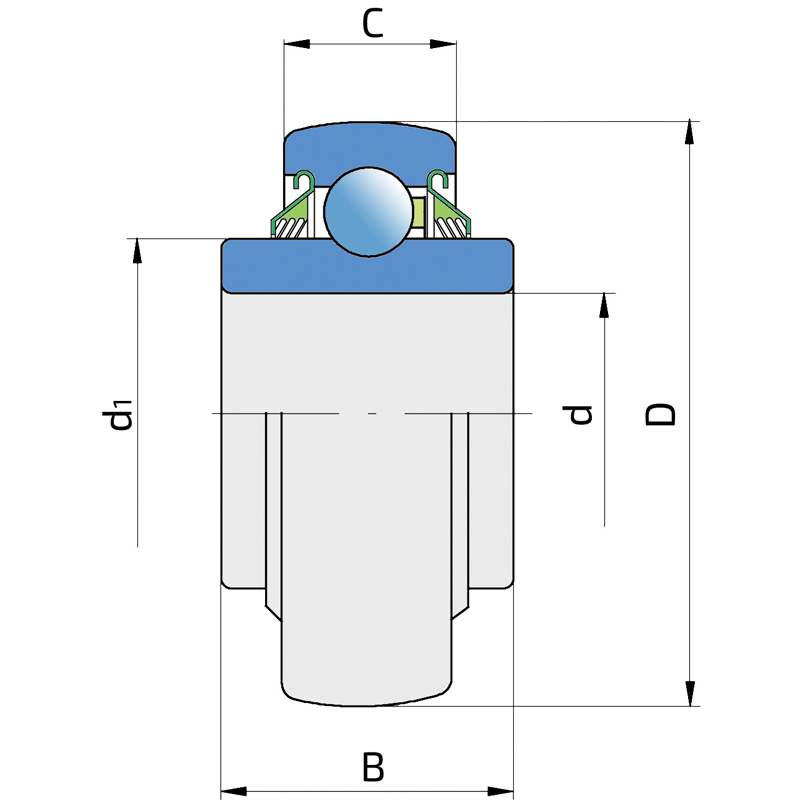

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

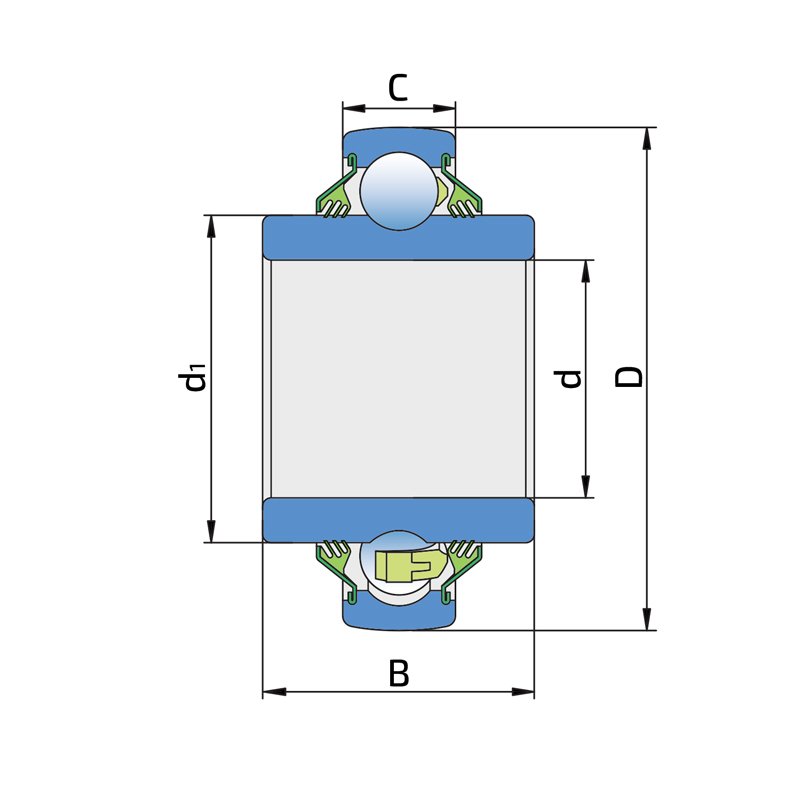

Sealing Drawing
