LESQFS 212 TDT.H

Bearing Unit

Application: Cultivator, disc seed drill

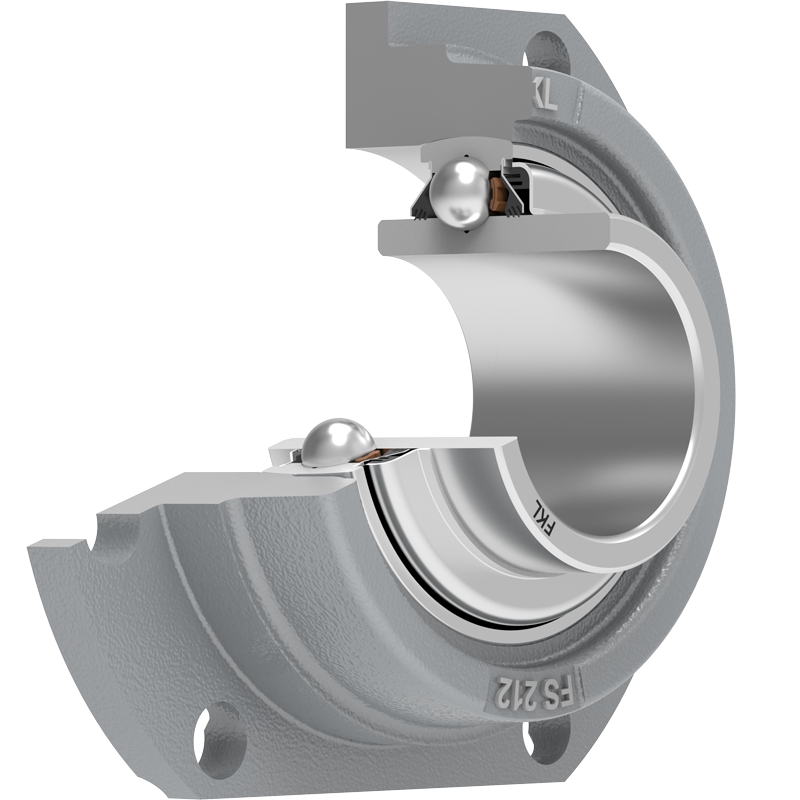

3D view

Technical Specification
dBore diameter60mm
DOutside diameter 205mm
JPitch circle diameter180mm
AOverall width73.7mm
A1Total housing width54mm
A2Housing flange thickness28.7mm
BWidth inner ring 65.1mm
H/THole/Thread14.5mm
kgMass5.3kg
CoStatic load rating67.2kN
CdynDynamic load rating79.3kN
PuFatigue load limit2.82kN

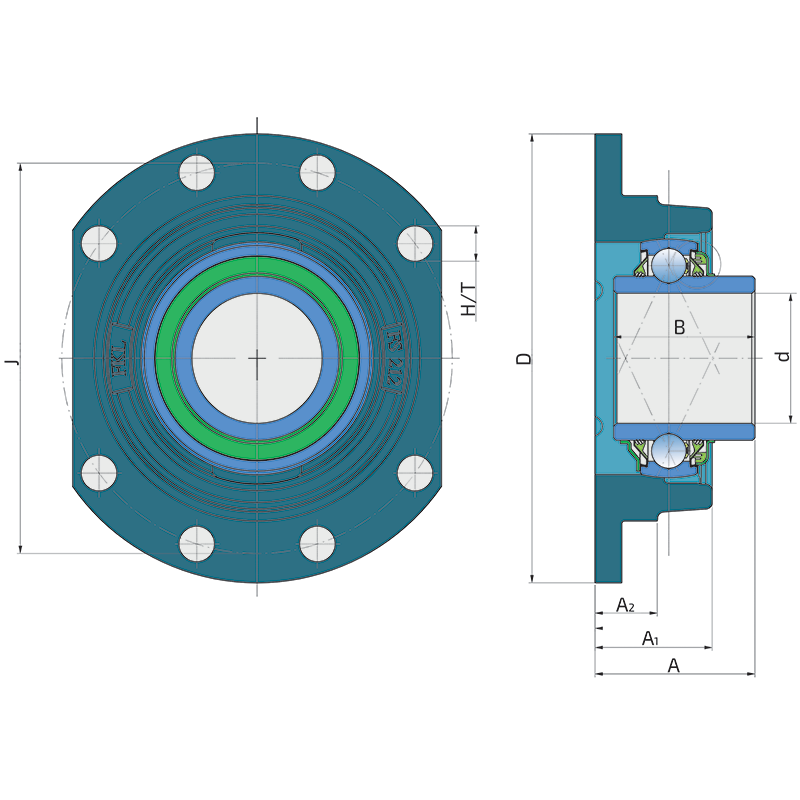

Tehnical Drawing

Sealing

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.

The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.

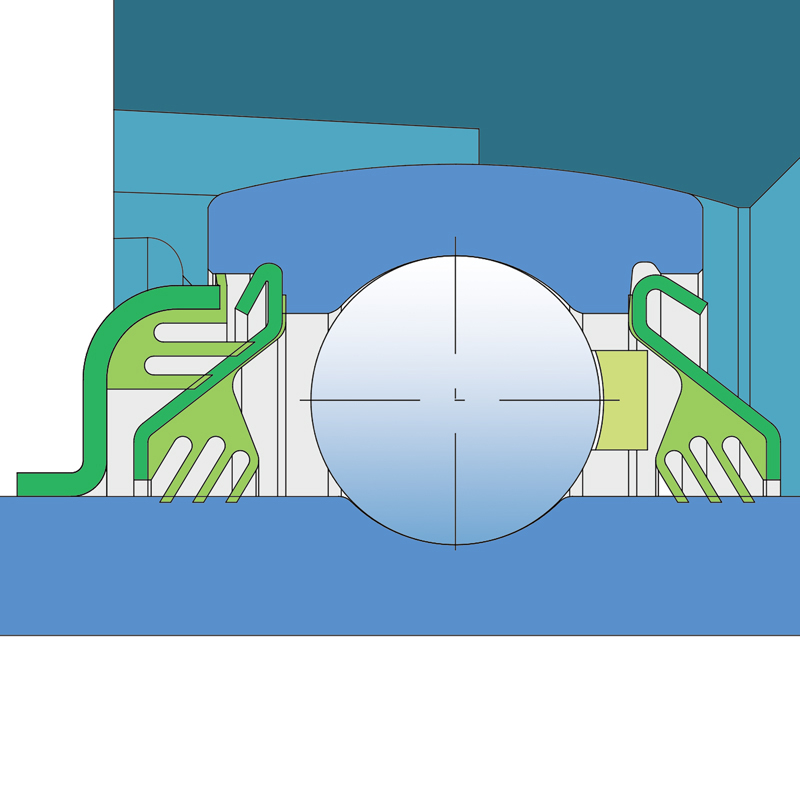

Sealing Drawing

LESQFS 212 TDT.H

×

LESQFS 212 TDT.H

×

Sealing Type:

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
