LSQFR 308-13.5 TQT.H.T
Bearing Unit
Application: Packer Roller

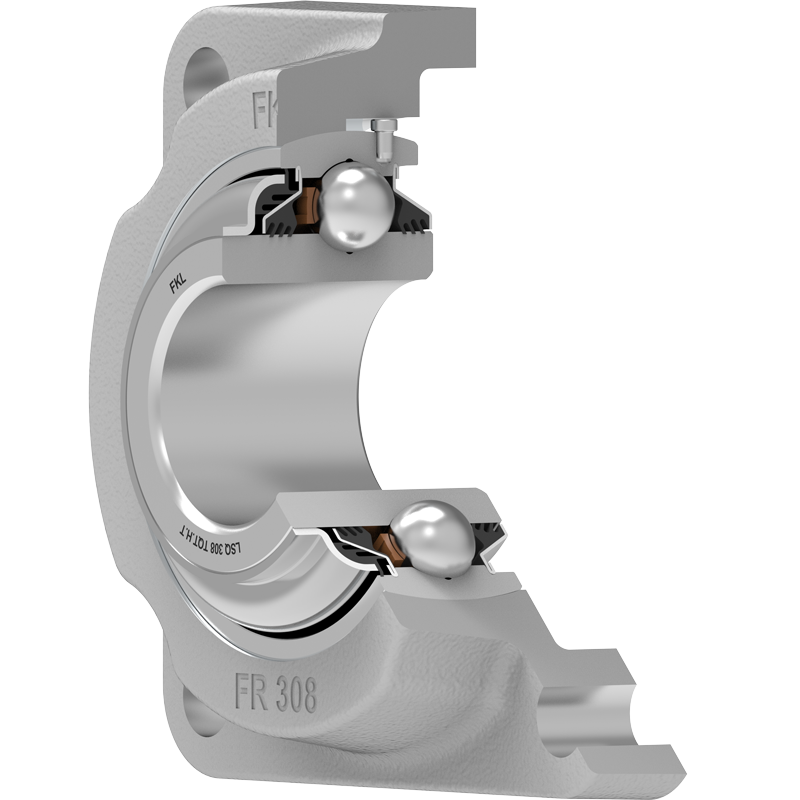

3D view
| d | Bore diameter | 40 | mm |
| L | Total length | 130 | mm |
| J | Distance between the holes | 101.5 | mm |
| H/T | Hole/Thread | 13.5 | mm |
| A | Overall width | 51.4 | mm |
| A1 | Total housing width | 40.6 | mm |
| A2 | Housing flange thickness | 19 | mm |
| B | Width inner ring | 42.9 | mm |
| kg | Mass | 2.414 | kg |
| Cdyn | Dynamic load rating | 62.3 | kN |
| Co | Static load rating | 45.2 | kN |
| Pu | Fatigue load limit | 1.898 | kN |

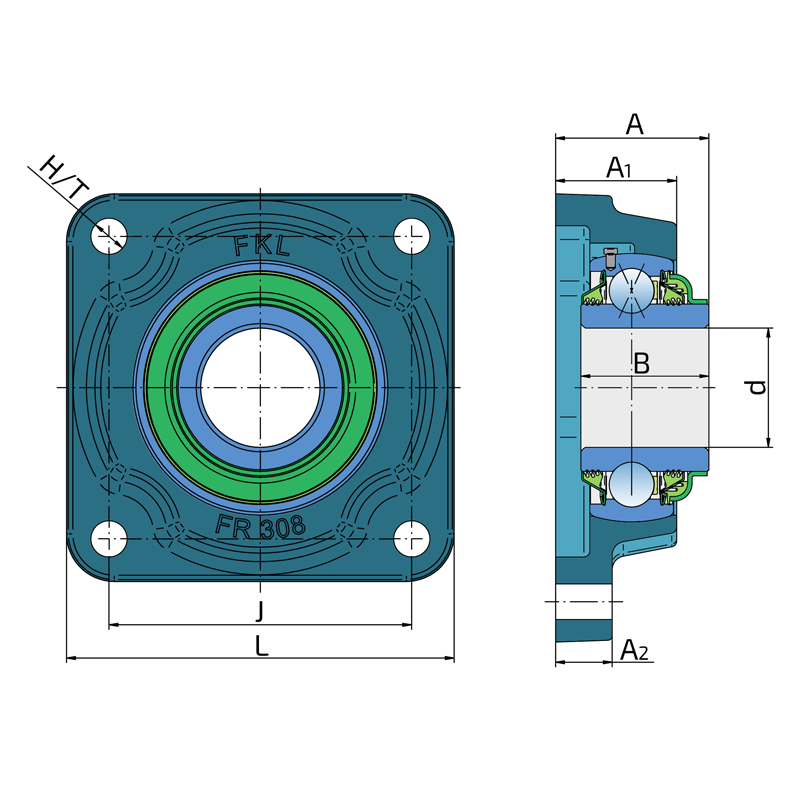

Tehnical Drawing
Sealing
TQ SEAL / T SEAL
3-lip seal on the base side and 7-lip seal on the front side which is exposed to contaminants.
The innovative 7-lip seal ensures a perfect fit on the inner ring, delivering exceptional sealing performance and durability even under extreme conditions. The TQT seal effectively prevent the ingress of water, snow, mud, and dust, providing robust protection of the bearing and extending its lifetime.
Sealing Drawing
