SLE 53-012-2T

Four Point Contact Ball Bearing

Application: Seeding Machine

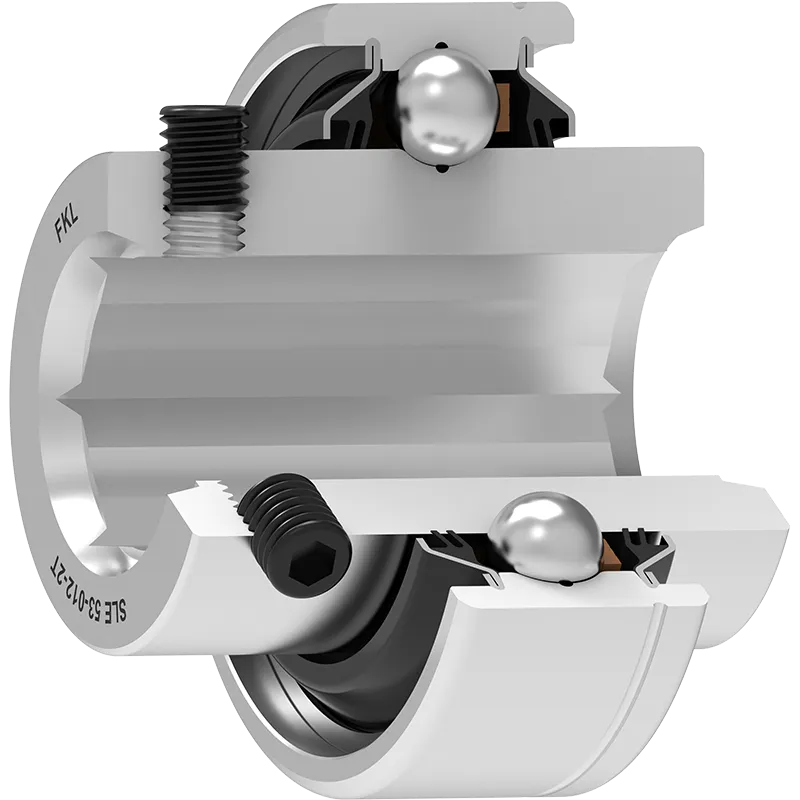

3D view

Technical Specification
CdynDynamic load rating14kN
CoStatic load rating7.8kN
DOutside diameter 53.086mm
dBore diameter19.6mm
CD-shape hole cut out dimension18.288mm
kgMass0.299kg
BWidth inner ring 43.5mm
αContact angle25°
aShaft size19.18inch

Tehnical Drawing

Sealing

D SEAL / D SEAL (2D)

The double lip seal provides twice as good a seal as the S seal, while the maximum permitted rotational speed is adequately lower, due to the greater friction of the rubber lips against the steel inner ring. However, this rotational speed may be higher than with a 3-lip seal, up to 1500rpm. The sheet metal part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The main area of application of bearings with such sealing are agricultural and construction machines at installation place where the rotational speed is up to 1500 rpm.

Sealing Drawing

SLE 53-012-2T

×

SLE 53-012-2T

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.

SLE 53-012-2T

×
