6204 RSL3
Ball bearing
Application: Seeding wheel

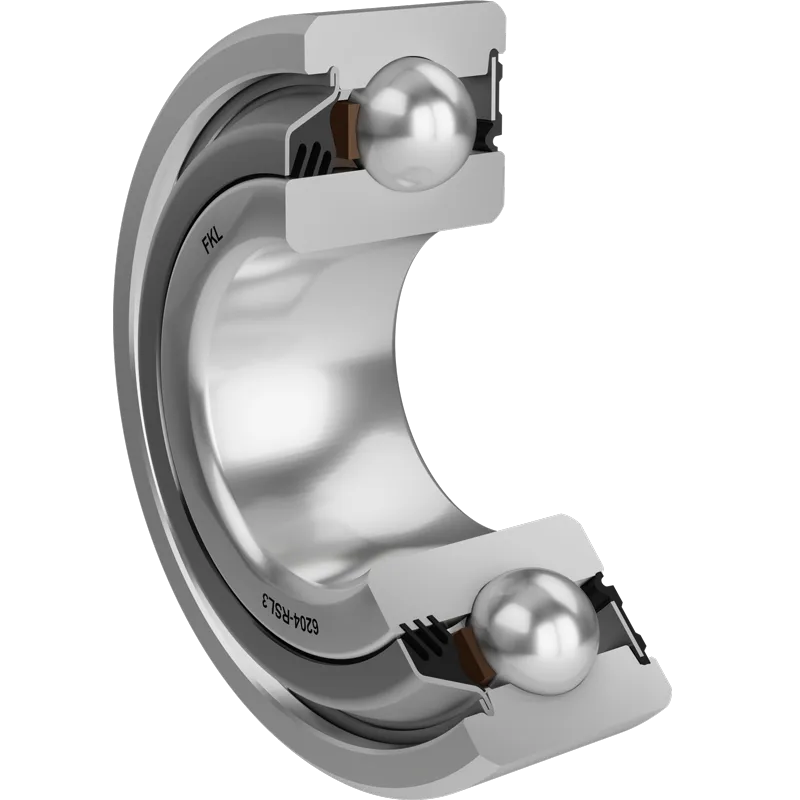

3D view
| d | Bore diameter | 20 | mm |
| D | Outside diameter | 47 | mm |
| C | Width outer ring | 15 | mm |
| B | Width inner ring | 16.5 | mm |
| kg | Mass | 0.19 | kg |
| Cdyn | Dynamic load rating | 12.8 | kN |
| Co | Static load rating | 6.2 | kN |
| Pu | Fatigue load limit | 0.26 | kN |
Tehnical Drawing
Sealing
RS SEAL / T SEAL
RS seal on the base side and 3-lip seal on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration.
Sealing Drawing
