885152

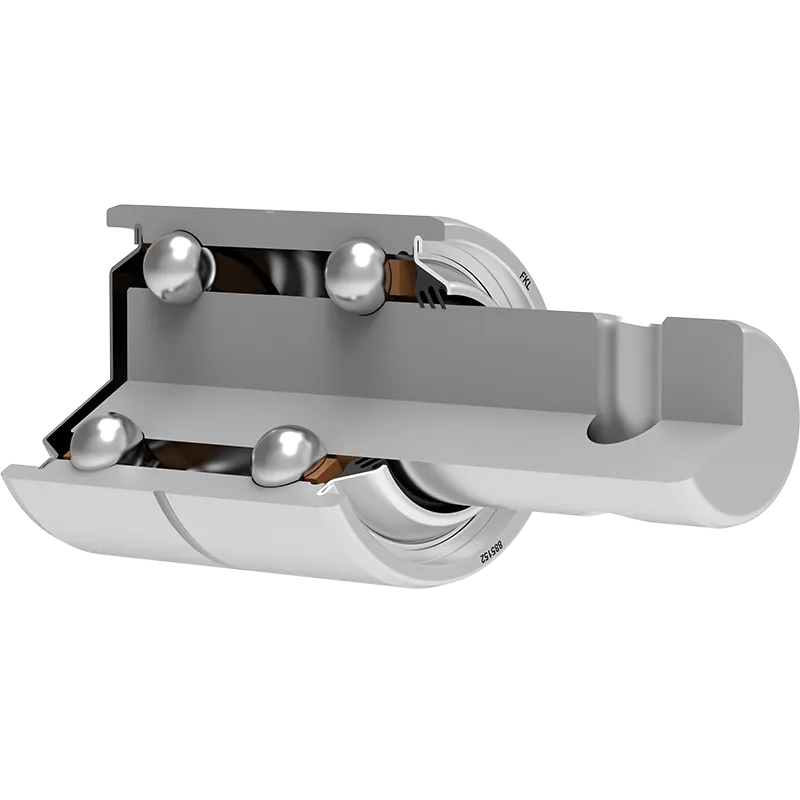

Double Row Ball Bearings With Shaft
Application: Seeding Machine
3D view
| d | Bore diameter | 15.918 | mm |
| D | Outside diameter | 30 | mm |
| L | Total length | 69.3 | mm |
| L1 | Total flange length | 38.9 | mm |
| H | Hole diameter | 6.5 | mm |
| E | Hole center line distance to the side face of the inner ring | 11.2 | mm |
| kg | Mass | 0.178 | kg |
| Cdyn | Dynamic load rating | 5.15 | kN |
| Co | Static load rating | 2.94 | kN |
| Pu | Fatigue load limit | 0.124 | kN |
Tehnical Drawing
Sealing
SHEET METAL SHIELD / T SEAL
Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
Sealing Drawing
