PRB-45
Bearing Unit
Application: Packer Roller

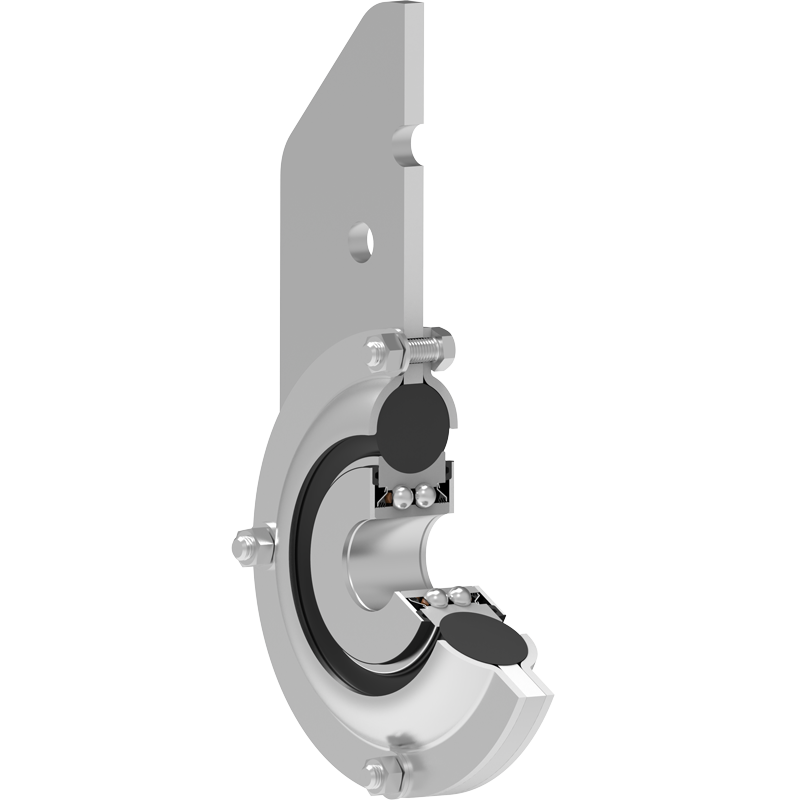

3D view
| d | Bore diameter | 45 | mm |
| A | Overall width | 55 | mm |
| C | Distance between holes | 70 | mm |
| C1 | Distance between holes | 50 | mm |
| H/T | Hole/Thread | 3x20.5 | mm |
| kg | Mass | 9.199 | kg |
| Cdyn | Dynamic load rating | 51 | kN |
| Co | Static load rating | 39 | kN |
| Pu | Fatigue load limit | 1.638 | kN |

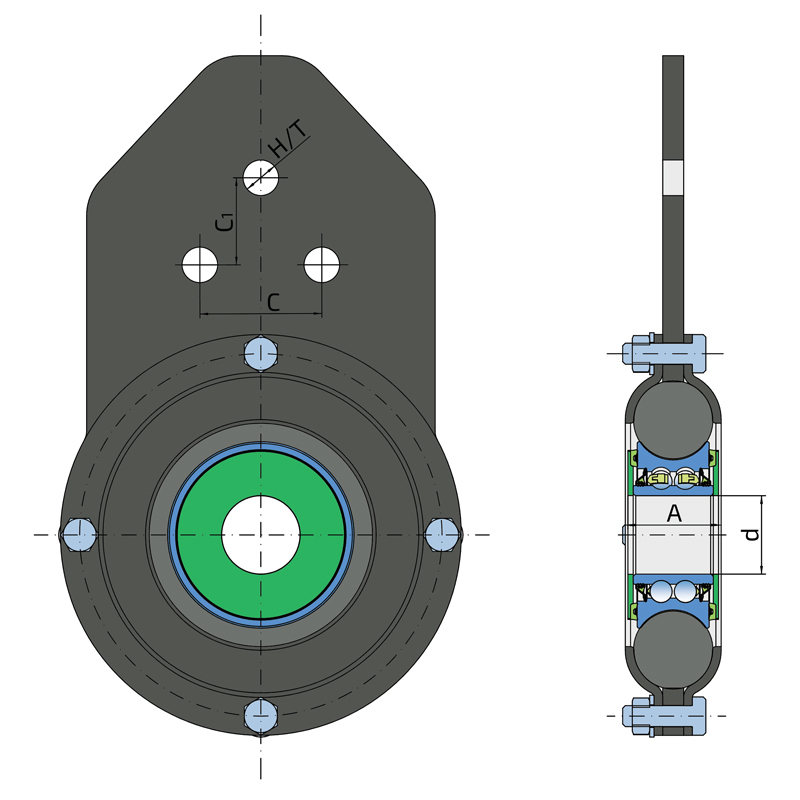

Tehnical Drawing
Sealing
FRONTAL DOUBLE LIP SEAL + T SEAL / T SEAL + FRONTAL DOUBLE LIP SEAL
Triple lip seal and frontal double lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

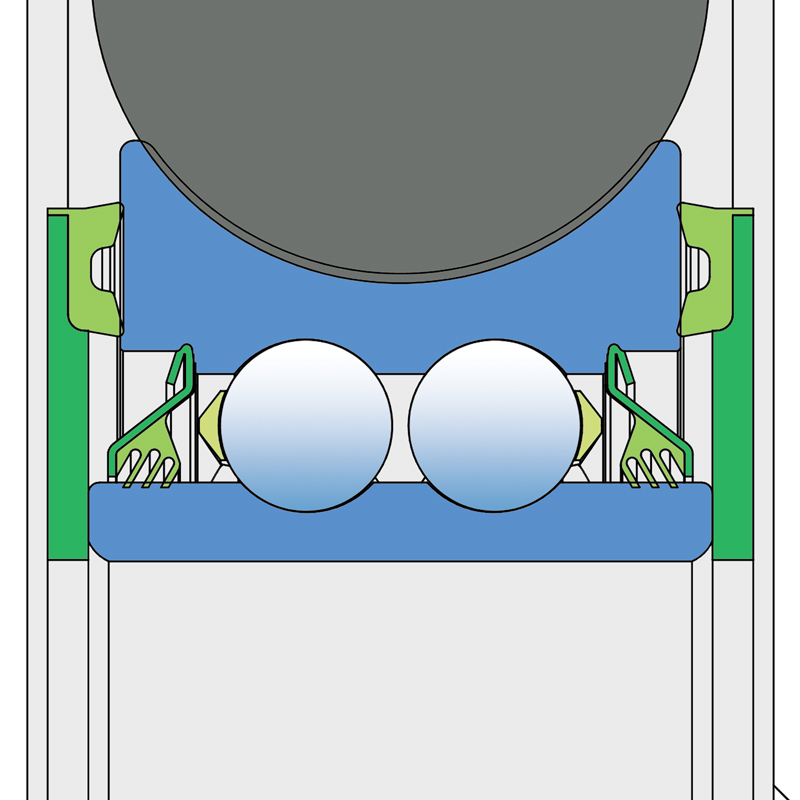

Sealing Drawing
