LENN 208 2T
Bearing Unit
Application: Universal Solution

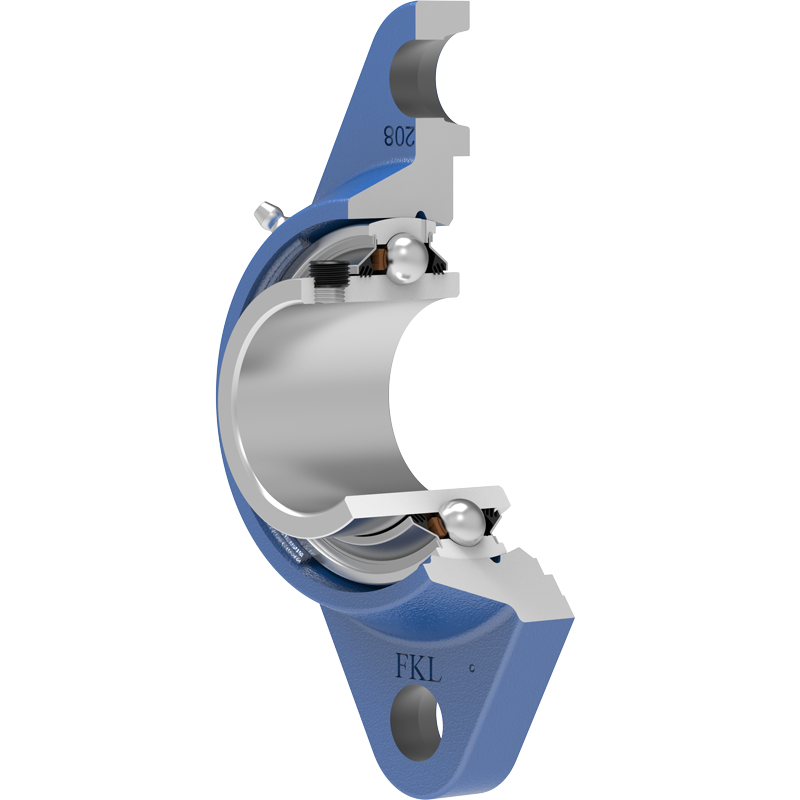

3D view
| d | Bore diameter | 40 | mm |
| H | Housing height | 175 | mm |
| L | Total length | 100 | mm |
| J | Distance between the holes | 144 | mm |
| N | Hole diameter | 14 | mm |
| A | Overall width | 51.2 | mm |
| A1 | Total housing width | 36 | mm |
| A2 | Housing flange thickness | 16 | mm |
| B | Width inner ring | 49.2 | mm |
| kg | Mass | 1.69 | kg |
| Cdyn | Dynamic load rating | 30.7 | kN |
| Co | Static load rating | 19 | kN |
| Pu | Fatigue load limit | 0.798 | kN |

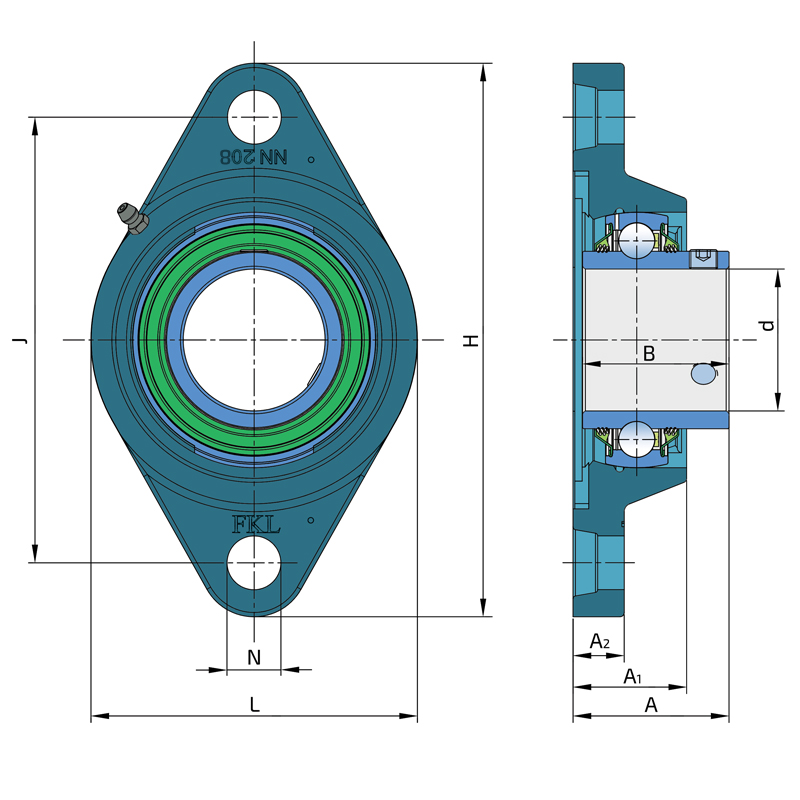

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
