GWST 211PPB20
Round Series
Application: Disc Harrow

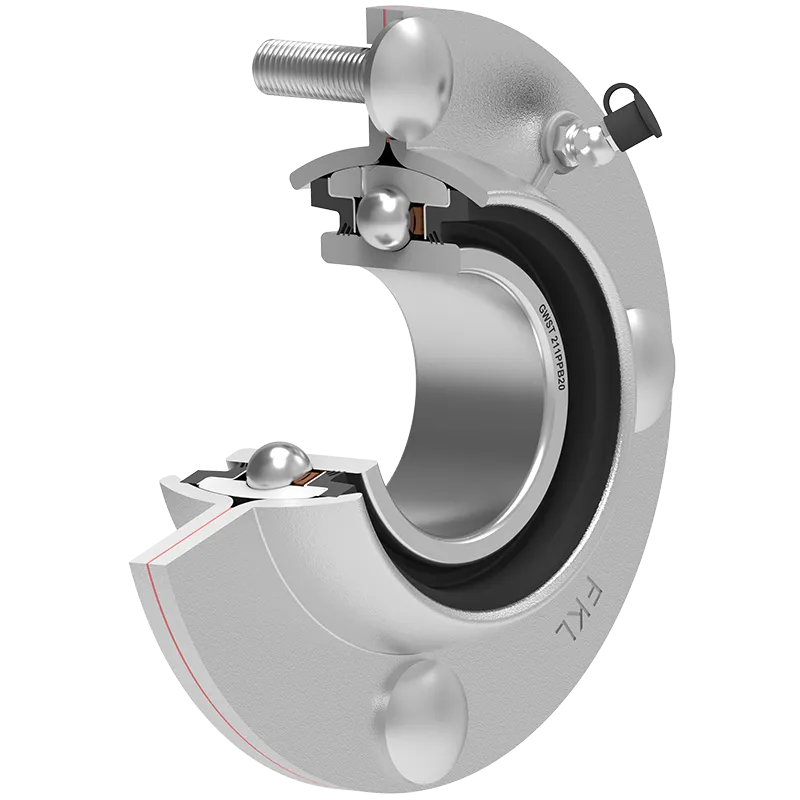

3D view
| d | Bore diameter | 2.193 | inch |
| d | Bore diameter | 55.7 | mm |
| B | Width inner ring | 39.7 | mm |
| A | Overall width | 56.5 | mm |
| A1 | Width of the top of the housing | 3.5 | mm |
| C | Width outer ring | 33.4 | mm |
| Da | Centering diameter | 111 | mm |
| D | Outside diameter | 167 | mm |
| J | Pitch circle diameter | 138 | mm |
| N | Hole diameter | 13.5 | mm |
| kg | Mass | 2.706 | kg |
| Cdyn | Dynamic load rating | 43.5 | kN |
| Co | Static load rating | 29 | kN |
| Pu | Fatigue load limit | 1.218 | kN |
Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
