GWST 209PPB29
Square Series
Application: Cultivator, rolling harrow, disc ripper and vertical tillage

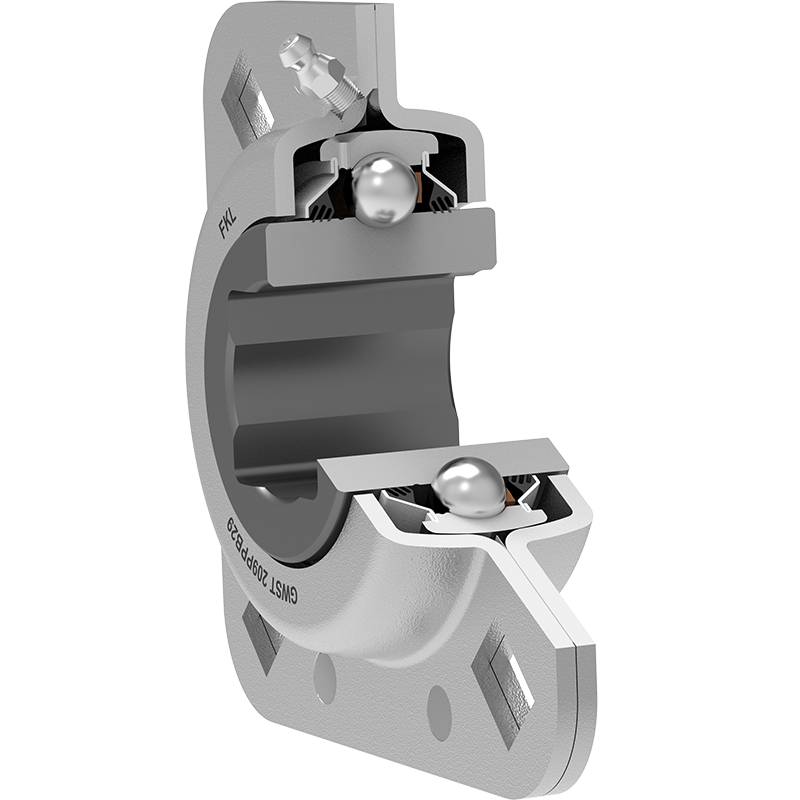

3D view
| a | Shaft size | 32.8 | mm |
| a | Shaft size | 32.8 | inch |
| d | Bore diameter | 35.5 | mm |
| B | Width inner ring | 42.85 | mm |
| C | Width outer ring | 22 | mm |
| Da | Centering diameter | 97 | mm |
| L | Total length | 127 | mm |
| A | Overall width | 39 | mm |
| A1 | Width of the top of the housing | 3.5 | mm |
| J | Pitch circle diameter | 127 | mm |
| N | Rectangular hole size | 13.5 | mm |
| M | Rectangular hole size | 17.5 | mm |
| Fr | Radial load | 7.7 | kN |
| Fa | Axial load | 3.8 | kN |
| kg | Mass | 1.63 | kg |
| Cdyn | Dynamic load rating | 32.5 | kN |
| Co | Static load rating | 20.4 | kN |
| Pu | Fatigue load limit | 0.857 | kN |

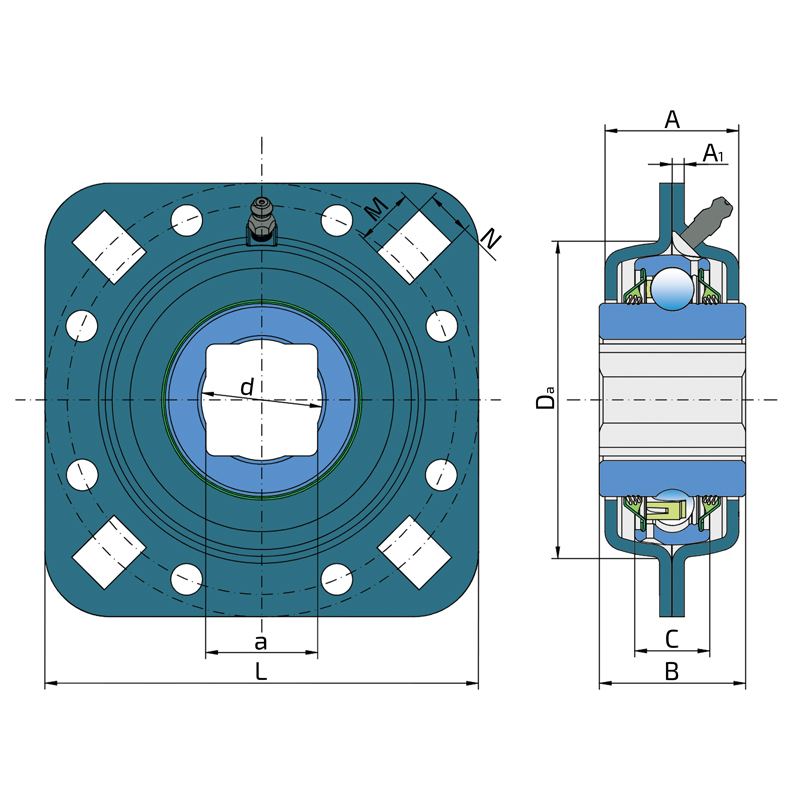

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
