US 212 2S.SH.C24

Y-Ball Bearings with Standard Inner Ring

Application: Harvester

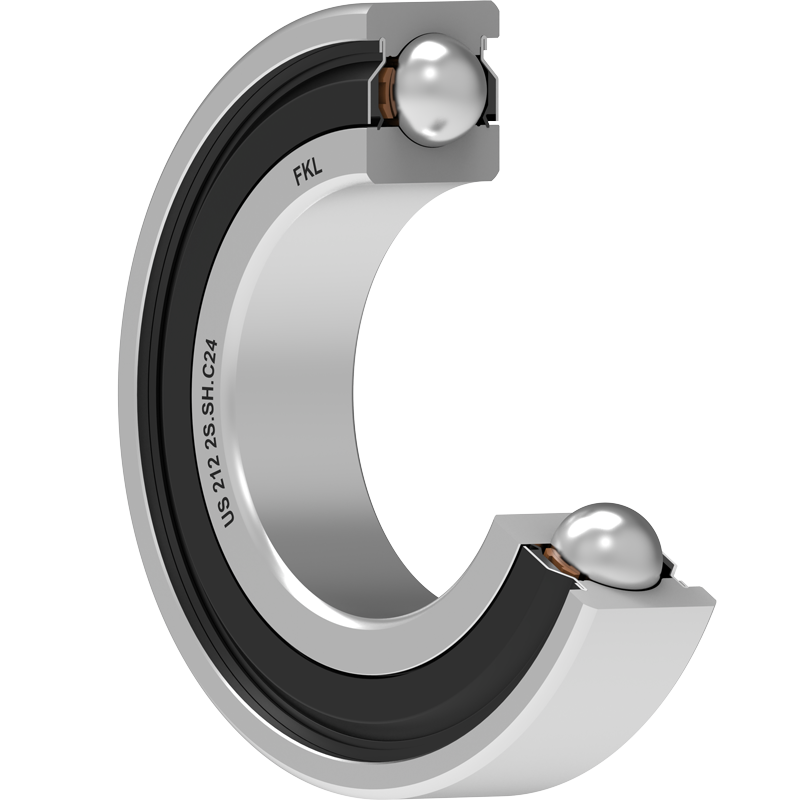

3D view

Technical Specification
dBore diameter60mm
DOutside diameter 110mm
C Width outer ring 24mm
BWidth inner ring 24mm
kgMass0.85kg
CdynDynamic load rating52kN
CoStatic load rating36kN
PuFatigue load limit1.51kN

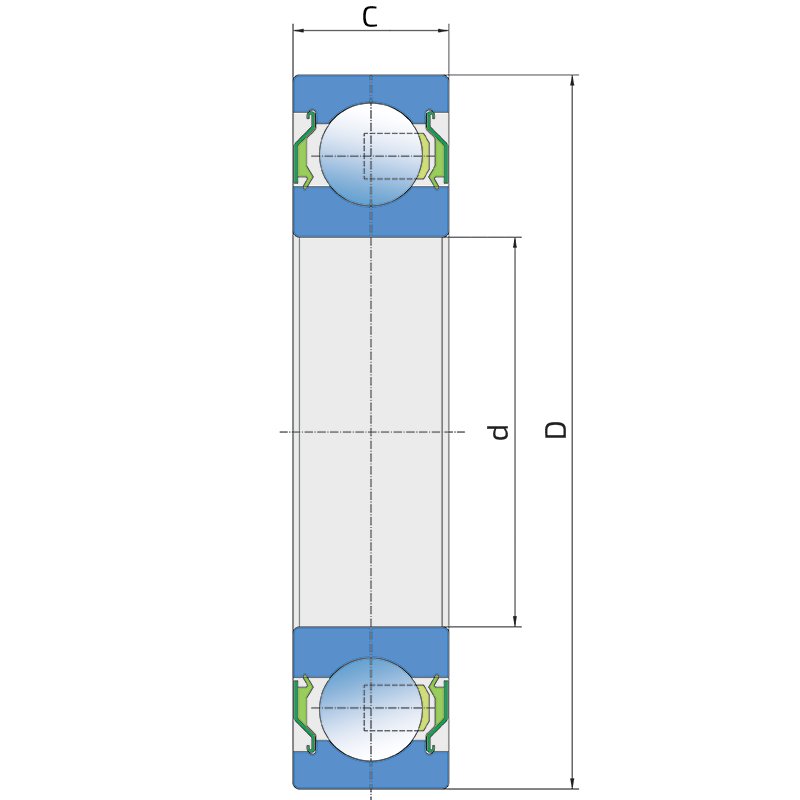

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

US 212 2S.SH.C24

×

US 212 2S.SH.C24

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.
