306230

Double Row Angular Contact Ball Bearing

Application: Disc Harrow

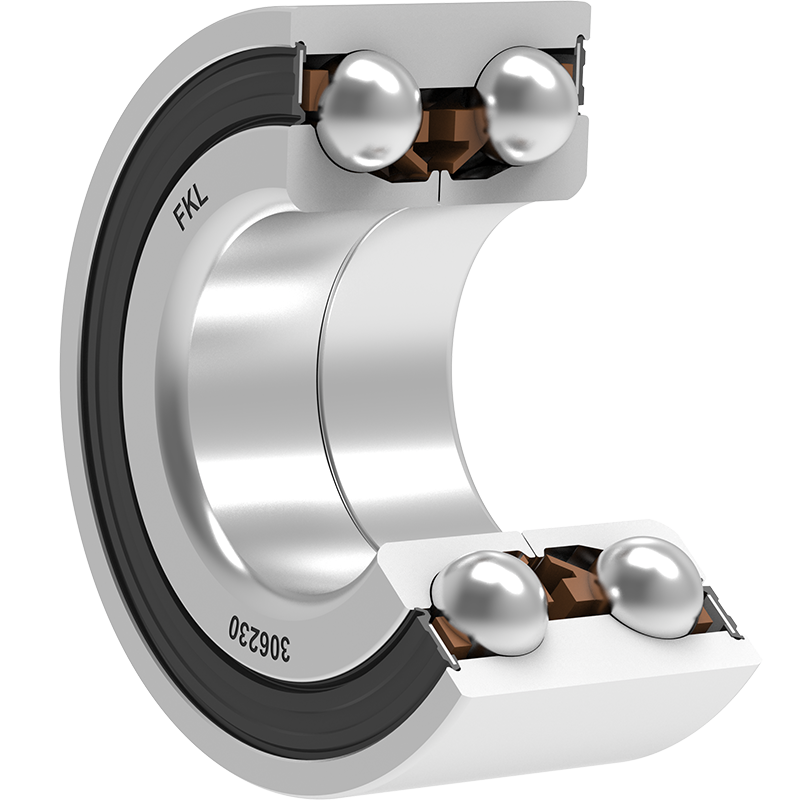

3D view

Technical Specification
dBore diameter30mm
DOutside diameter 62mm
BWidth inner ring 30mm
αContact angle34°
kgMass0.39kg
CdynDynamic load rating37.5kN
CoStatic load rating26.5kN
PuFatigue load limit1.113kN

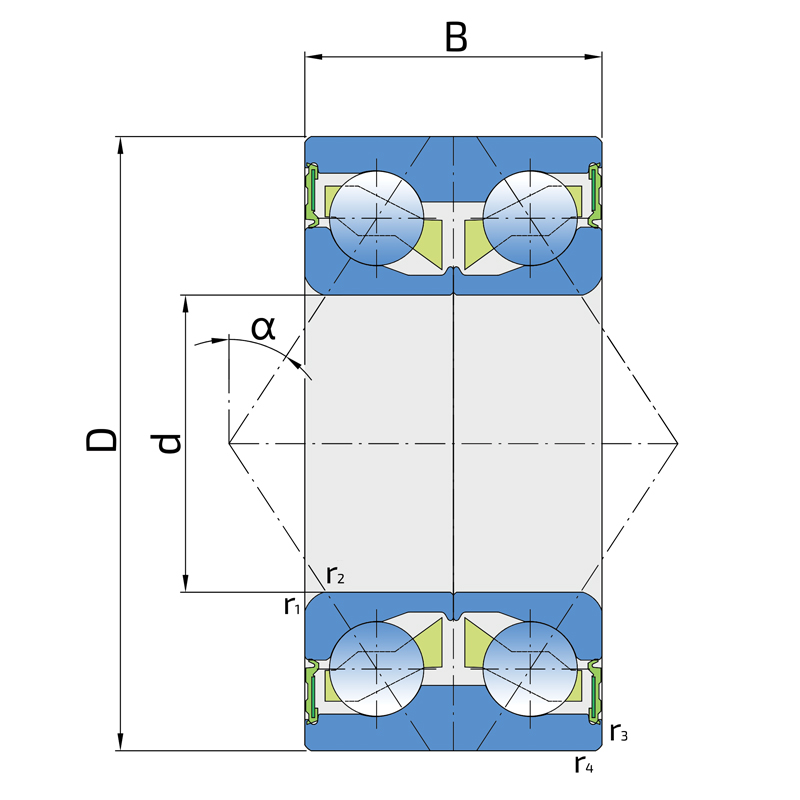

Tehnical Drawing

Sealing

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.

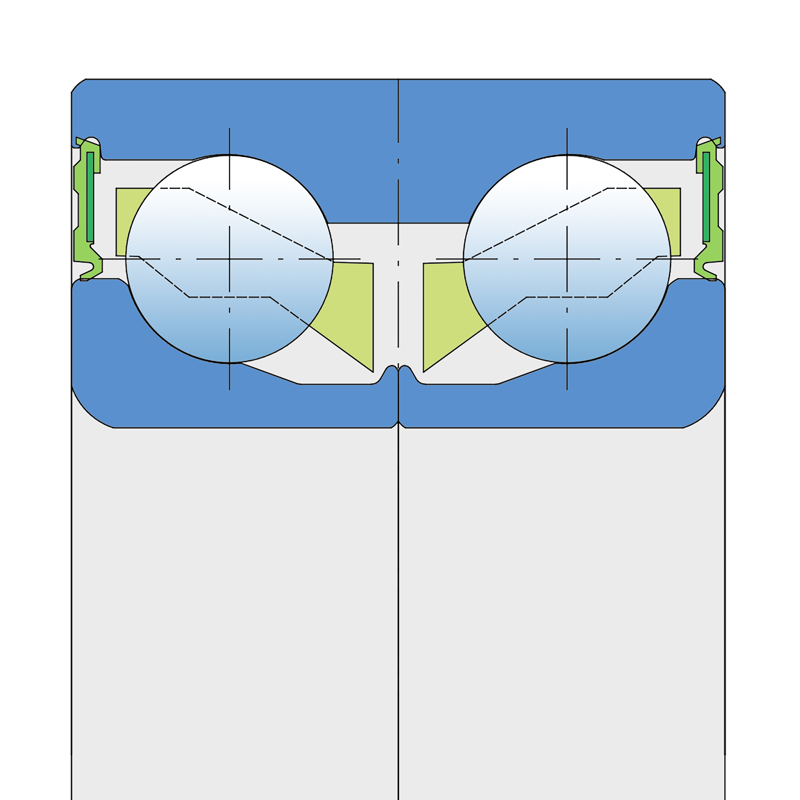

Sealing Drawing

306230

×

306230

×

Sealing Type:

Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals.
