IL35-88/4T-B30
The Bearing Solution For Harsh Seeding Conditions And Coulter Discs Of Ploughs, Integrated Flange
Application: Seeding Machines and Manure Handling Machine

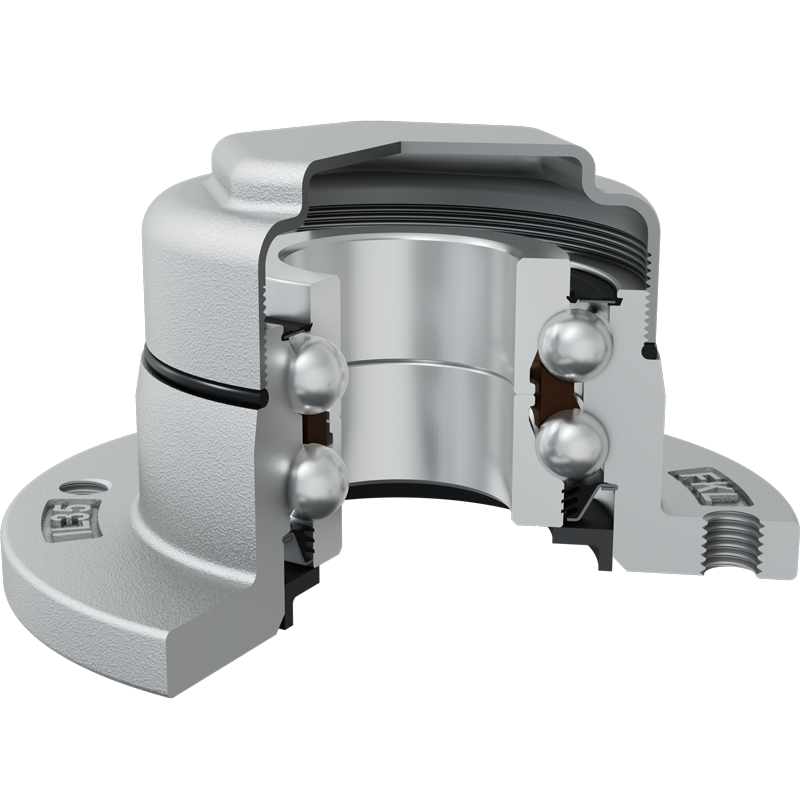

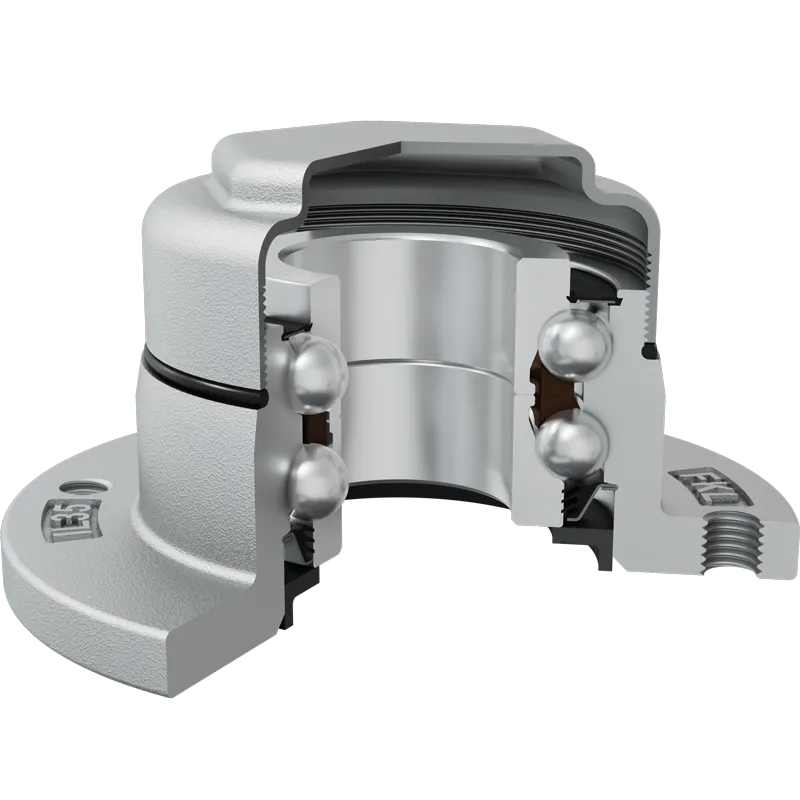

3D view
| J | Pitch circle diameter | 88 | mm |
| D | Outside diameter | 105 | mm |
| H/T | Hole/Thread | 4x8x1.25 | mm |
| d | Bore diameter | 30 | mm |
| L | Total length | 55 | mm |
| L2 | Bearing width | 42 | mm |
| kg | Mass | 1 | kg |
| Cdyn | Dynamic load rating | 37.5 | kN |
| Co | Static load rating | 26.5 | kN |
| Pu | Fatigue load limit | 1.11 | kN |

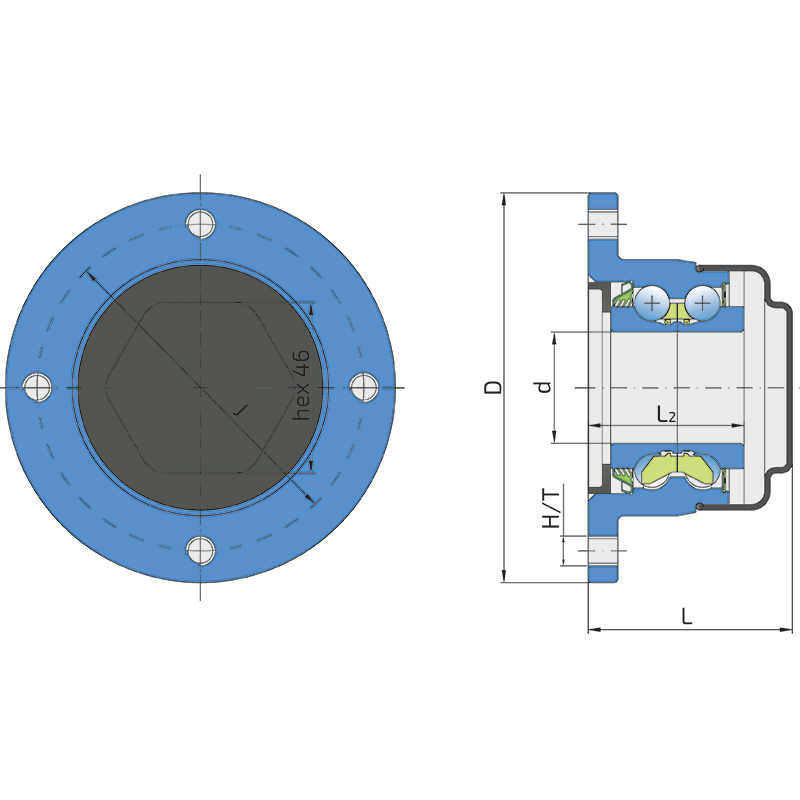

Tehnical Drawing
Sealing
PLASTIC COVER+T SEAL / RS SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the RS seal with metal protective cap on the front side.
The plastic cover on the base side protects the seal from mechanical damage.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
The RS seal with a Metal protective cap on the front side eliminates bearing contaminants.

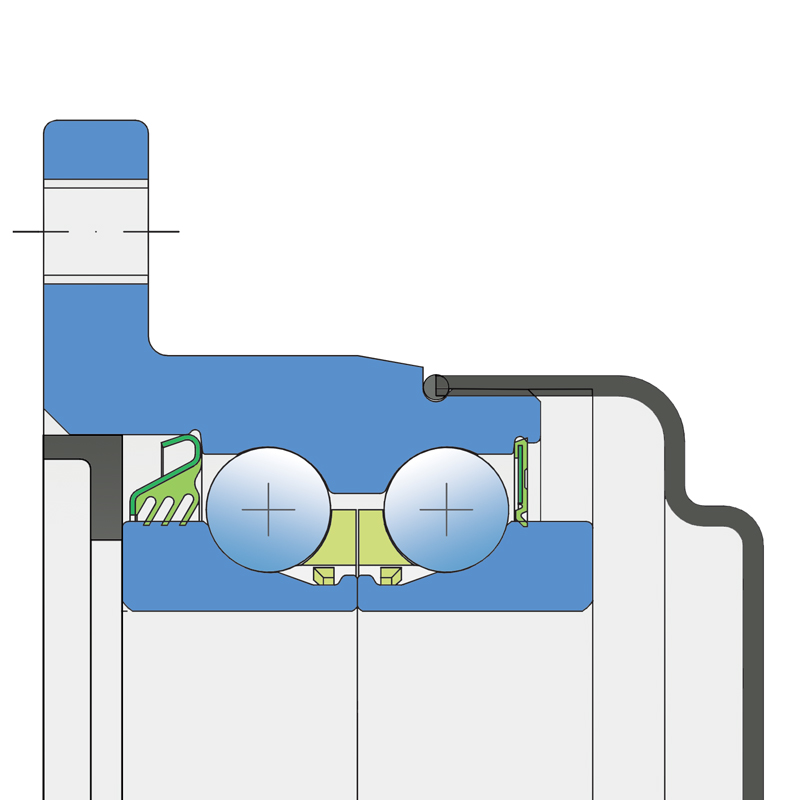

Sealing Drawing
