IL60-140/6H-B35

Maintenance-Free Bearing With Integrated Flange For Harsh Tillage

Application: Disc Harrow

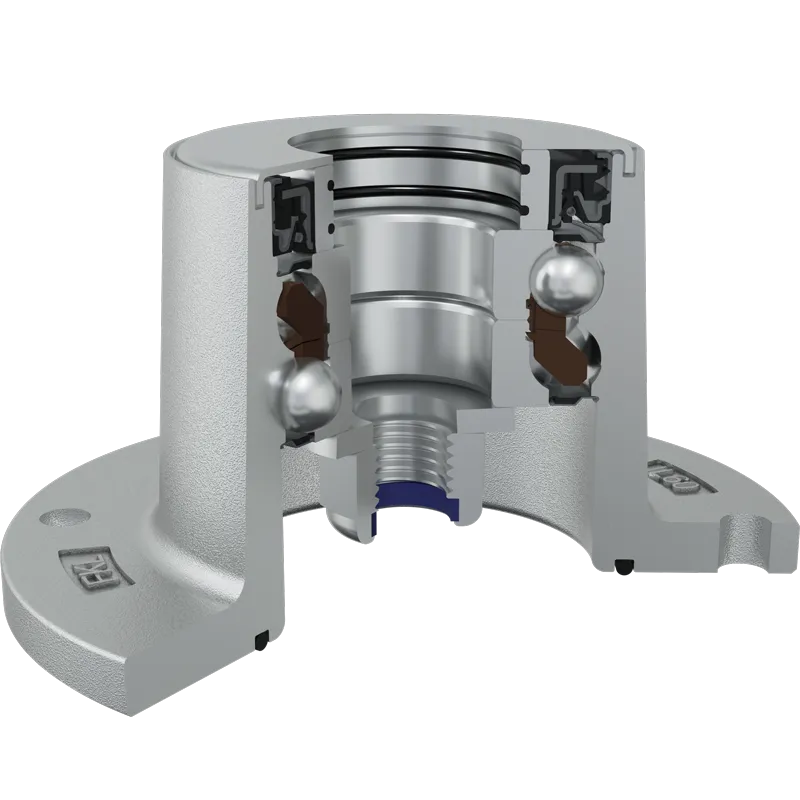

3D view

Technical Specification
JPitch circle diameter140mm
DOutside diameter 162mm
H/THole/Thread6x10.5mm
dBore diameter35mm
d1Inner diameter of the sealing45mm
LTotal length88.5mm
L1Width of Dirtblock seal17mm
L2Width of inner rings36mm
kgMass3.86kg
CdynDynamic load rating75.86kN
CoStatic load rating66.2kN
PuFatigue load limit2.78kN

Tehnical Drawing

Sealing

O-RING + S SEAL / S SEAL + DIRTBLOCK SEAL + METAL SHIELD

O-ring and S seal on the base side and S seal, Dirtblock seal with Metal shield on the front side which is exposed to contaminants.

O-ring and S seal together with attached special disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing

IL60-140/6H-B35

×

IL60-140/6H-B35

×

Sealing Type:

O-ring and S seal on the base side and S seal, Dirtblock seal with Metal shield on the front side which is exposed to contaminants.
