IL50V-100/4T-M24x2
Maintenance-Free Bearing With Integrated Flange For Harsh Working Environments
Application: Disc Harrow

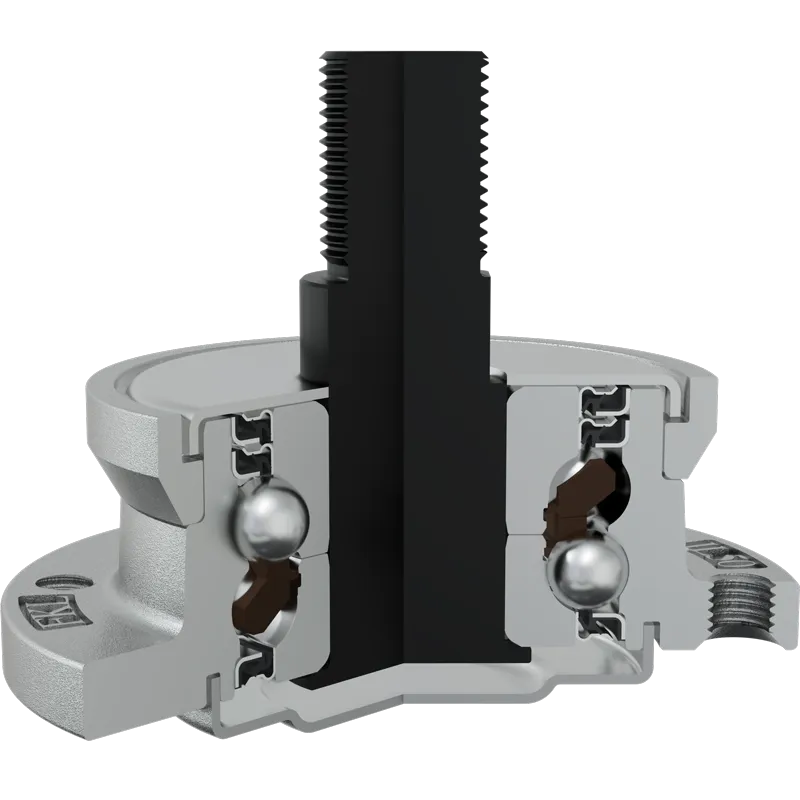

3D view
| J | Pitch circle diameter | 100 | mm |
| D | Outside diameter | 117 | mm |
| D1 | Centar bore on the disc | 74 | mm |
| H/T | Hole/Thread | 4xM10 | mm |
| d | Bore diameter | 30 | mm |
| C | D-shape hole cut out dimension | 27.5 | mm |
| M | Outher Thread | M24x2 | mm |
| L | Total length | 88.5 | mm |
| L1 | Total flange length | 41.8 | mm |
| E | Length of D shape | 14.7 | mm |
| F | Length of threaded part | 32 | mm |
| kg | Mass | 2.167 | kg |
| Cdyn | Dynamic load rating | 47.4 | kN |
| Co | Static load rating | 38.3 | kN |
| Pu | Fatigue load limit | 1.609 | kN |
Tehnical Drawing
Sealing
SHEET METAL SHIELD + CASSETTE SEAL / DOUBLE CASSETTE SEAL + METAL SHIELD
Sheet metal shield and cassette seal on the base side and double cassette seal with metal shield on the front side. This sealing provides excellent protection from contamination and low friction.
Sealing Drawing
