IL50-120/6T-M24x2-04-R633-114
Integrated Flange, Maintenance-Free Bearing For Independent Discs
Application: Disc Harrow

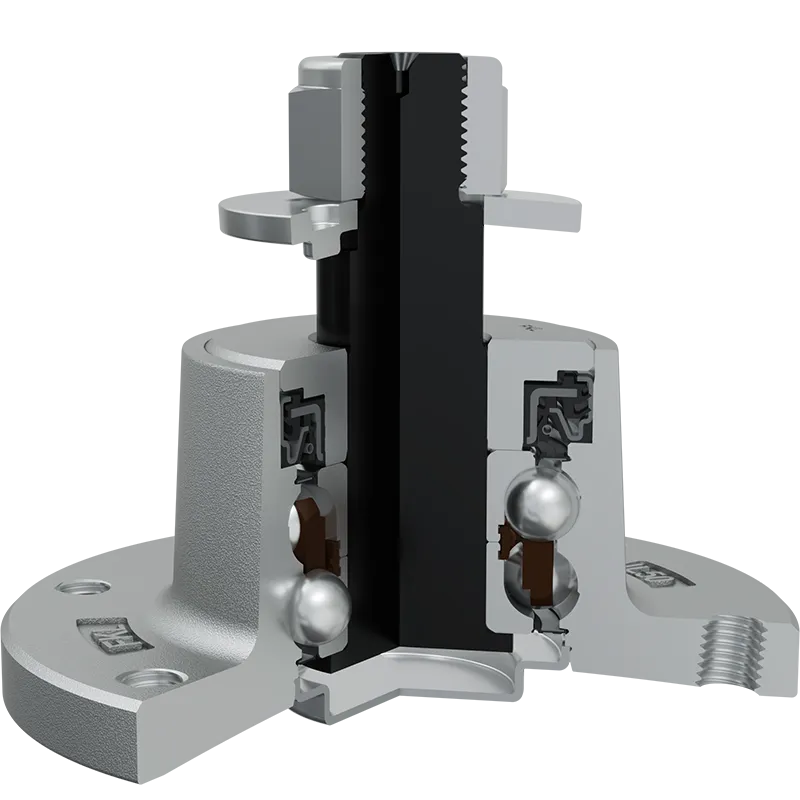

3D view
| J | Pitch circle diameter | 120 | mm |
| D | Outside diameter | 145 | mm |
| H/T | Hole/Thread | 6xM12x1.75 | mm |
| d | Bore diameter | 30 | mm |
| C | D-shape hole cut out dimension | 27.8 | mm |
| M | Outher Thread | M24x2 | mm |
| L | Total length | 114.2 | mm |
| L1 | Total flange length | 63.2 | mm |
| E | Length of D shape | 20 | mm |
| F | Length of threaded part | 27 | mm |
| R | The radius of the built-in disk | 633 | mm |
| kg | Mass | 3.53 | kg |
| Cdyn | Dynamic load rating | 60 | kN |
| Co | Static load rating | 45.8 | kN |
| Pu | Fatigue load limit | 1.924 | kN |
Tehnical Drawing
Sealing
SHEET METAL SHIELD + RS SEAL / RS SEAL + DIRTBLOCK SEAL + FORGED COVER PLATE
Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants.
Sheet metal shield and RS seal together with attached special disc eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
Sealing Drawing
