IL60-140/5H-M30-44

Maintenance-Free Bearing With Integrated Flange For Harsh Tillage

Application: Disc Harrow

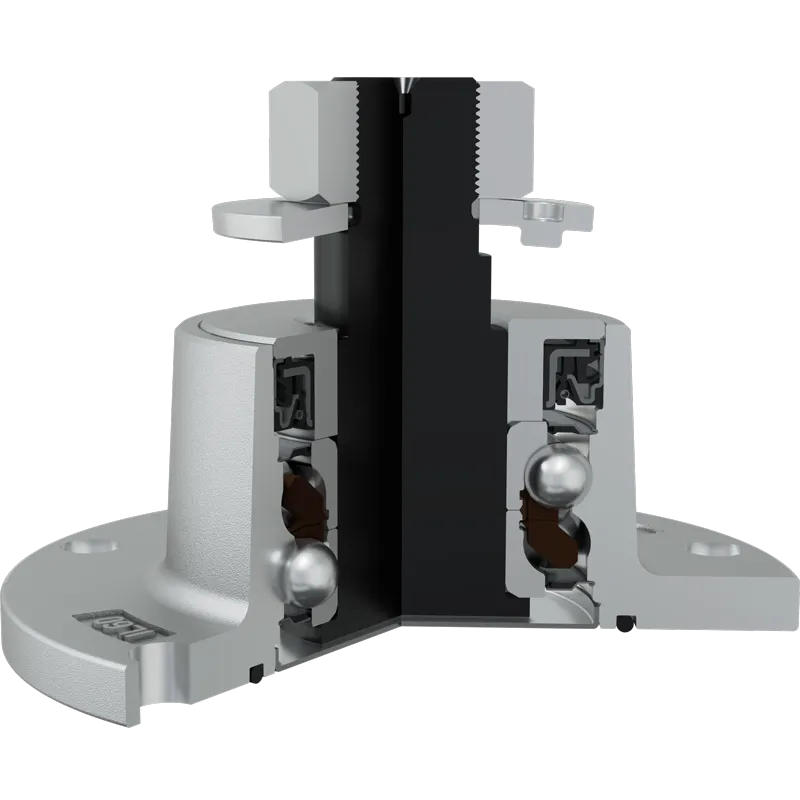

3D view

Technical Specification
JPitch circle diameter140mm
DOutside diameter 160mm
H/THole/Thread5x13mm
dBore diameter35mm
CD-shape hole cut out dimension32.5mm
MOuther ThreadM30x1.5mm
LTotal length110.5mm
L1Total flange length63mm
ELength of D shape16mm
kgMass4.324kg
CdynDynamic load rating75.86kN
CoStatic load rating66.2kN
PuFatigue load limit2.78kN

Tehnical Drawing

Sealing

O-RING+ SHEET METAL SHIELD+S SEAL / S SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and S seal on the base side and S seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

O-ring, Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing

IL60-140/5H-M30-44

×

IL60-140/5H-M30-44

×

Sealing Type:

O-ring, Sheet metal shield and S seal on the base side and S seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

IL60-140/5H-M30-44

×
