IL25-85/4T-B20-T
The Bearing Solution For Seeding Machines, Integrated Flange

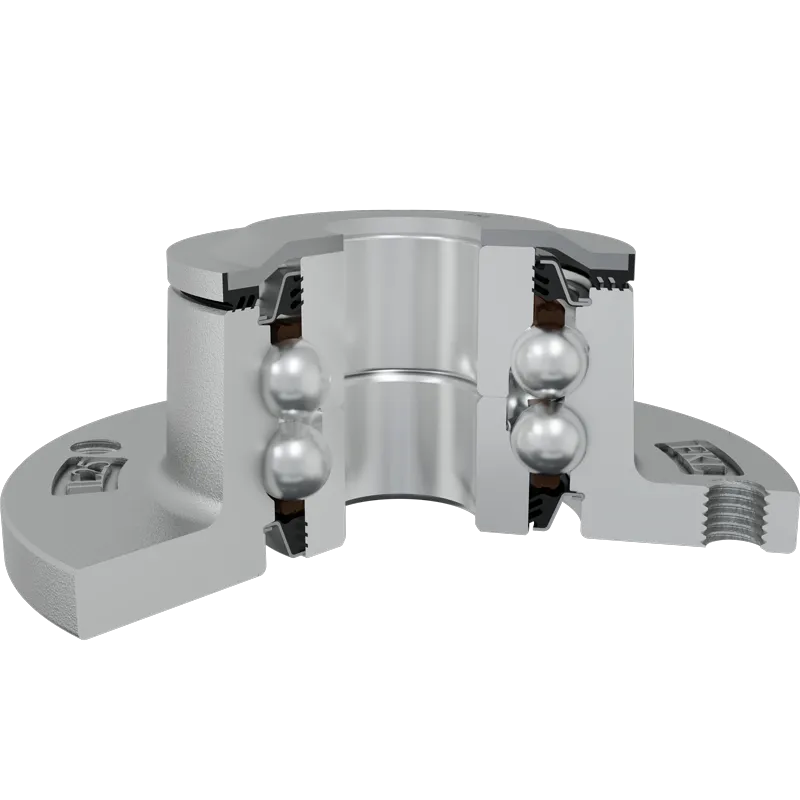

3D view
| J | Pitch circle diameter | 85 | mm |
| D | Outside diameter | 100 | mm |
| H/T | Hole/Thread | 4xM8 | mm |
| d1 | Bore diameter | 20 | mm |
| L | Total length | 39 | mm |
| kg | Mass | 0.78 | kg |
| Cdyn | Dynamic load rating | 32 | kN |
| Co | Static load rating | 22 | kN |
| Pu | Fatigue load limit | 0.924 | kN |
Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
