IL50V-104/4T-B30
Maintenance-Free Bearing With Integrated Flange For Harsh Working Environments
Application: Rapid seed drills, pneumatic seed drills and disc cultivators

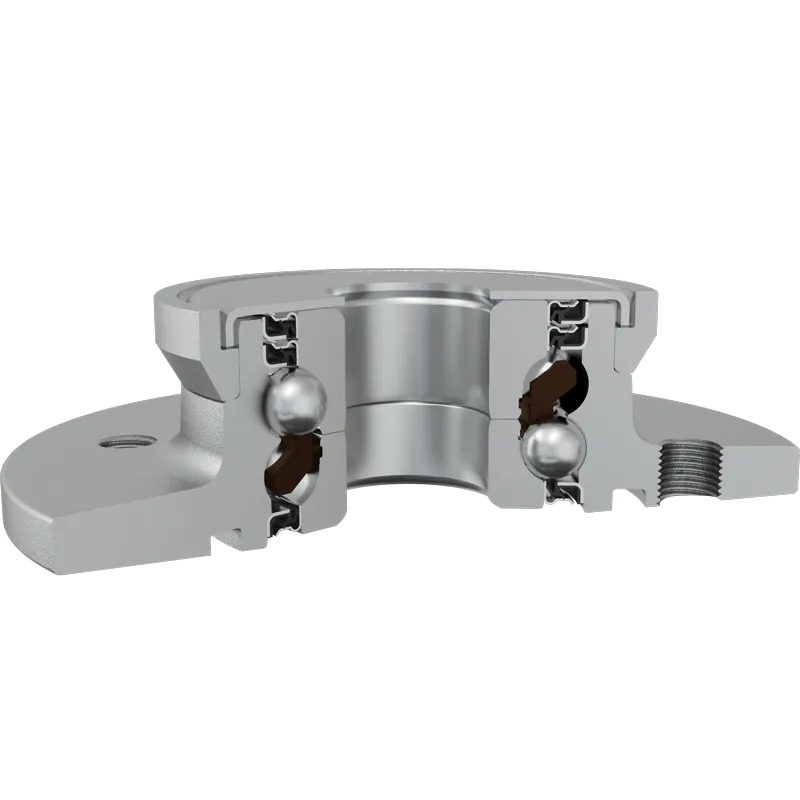

3D view
| J | Pitch circle diameter | 104 | mm |
| D | Outside diameter | 145 | mm |
| H/T | Hole/Thread | 4xM12x1.25 | mm |
| d1 | Bore diameter | 30 | mm |
| L | Total length | 41.8 | mm |
| L2 | Bearing width | 39 | mm |
| Cdyn | Dynamic load rating | 47.4 | kN |
| Co | Static load rating | 38.3 | kN |
| Pu | Fatigue load limit | 1.61 | kN |
Tehnical Drawing
Sealing
CASSETTE SEAL / DOUBLE CASSETTE SEAL + METAL SHIELD
Cassette seal on the base side and double cassette seal with metal shield on the front side. This sealing provides excellent protection from contamination and low friction.
Sealing Drawing
