IL60-145/4H-M27x2-LH-40

Maintenance-Free Bearing With Integrated Flange For Harsh Tillage

Application: Disc Harrow

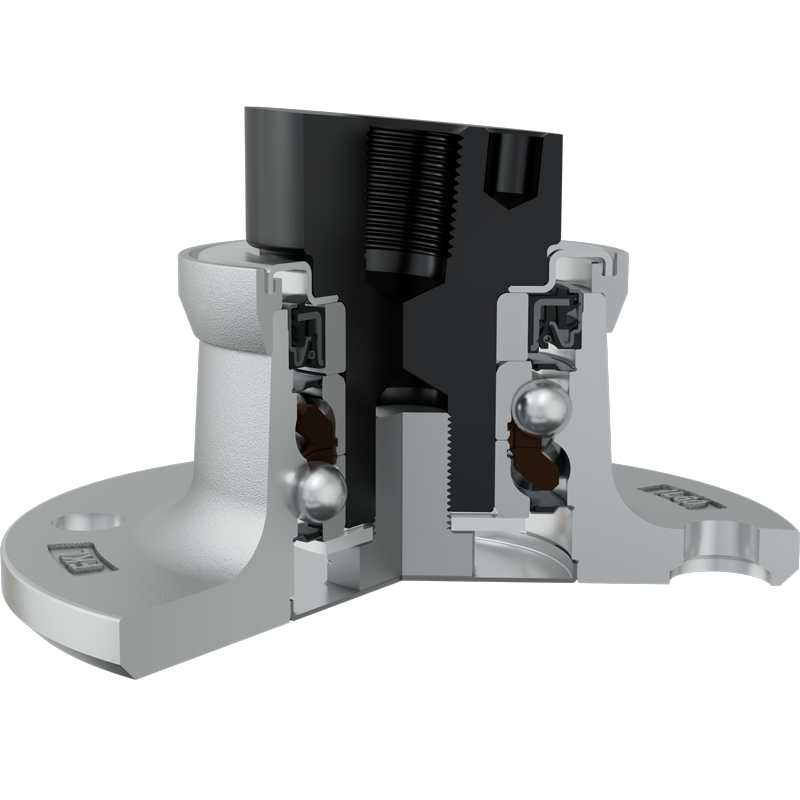

3D view

Technical Specification
JPitch circle diameter145mm
DOutside diameter 180mm
H/THole/Thread4x17mm
GInternal ThreadM27x2-7H leftmm
LTotal length108mm
L1Total flange length66mm
FLength of threaded part30mm
αContact angle5°
kgMass5.52kg
CdynDynamic load rating66.35kN
CoStatic load rating56.49kN
PuFatigue load limit2.373kN

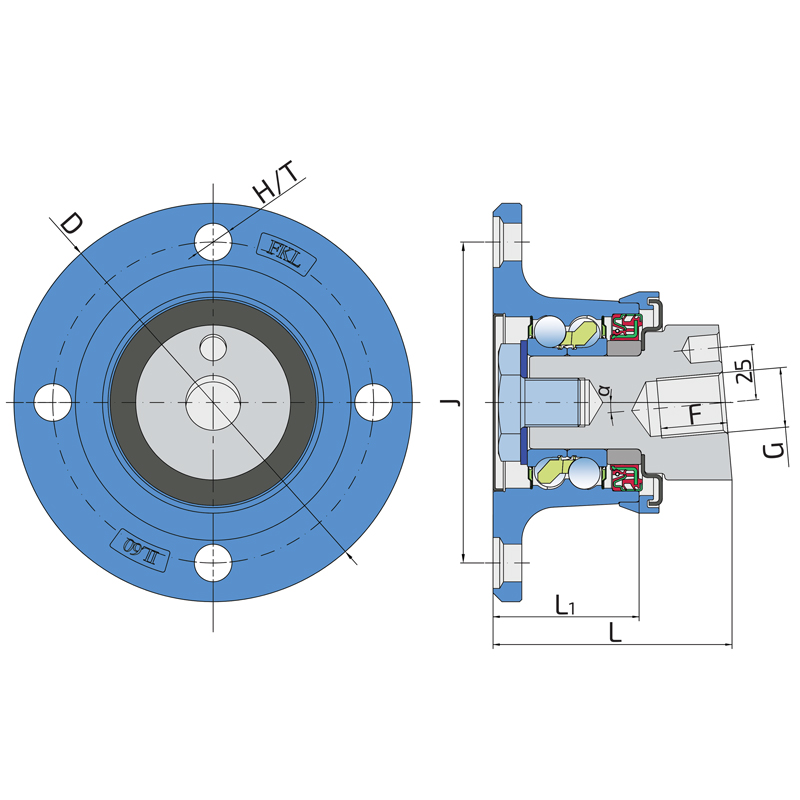

Tehnical Drawing

Sealing

SHEET METAL SHIELD+S SEAL / S SEAL+DIRTBLOCK SEAL

Sheet metal shield and S seal on the base side and S seal and Dirtblock seal on the front side which is exposed to contaminants.

Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the flange side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing

IL60-145/4H-M27x2-LH-40

×

IL60-145/4H-M27x2-LH-40

×

Sealing Type:

Sheet metal shield and S seal on the base side and S seal and Dirtblock seal on the front side which is exposed to contaminants.

IL60-145/4H-M27x2-LH-40

×
