IL60C-150/6T-D95-LH
Integrated double row, split inner ring ball bearing
Application: Cultivators
![](img/products/IL60C-150-6T-D95-LH.png)
![](img/image.png)

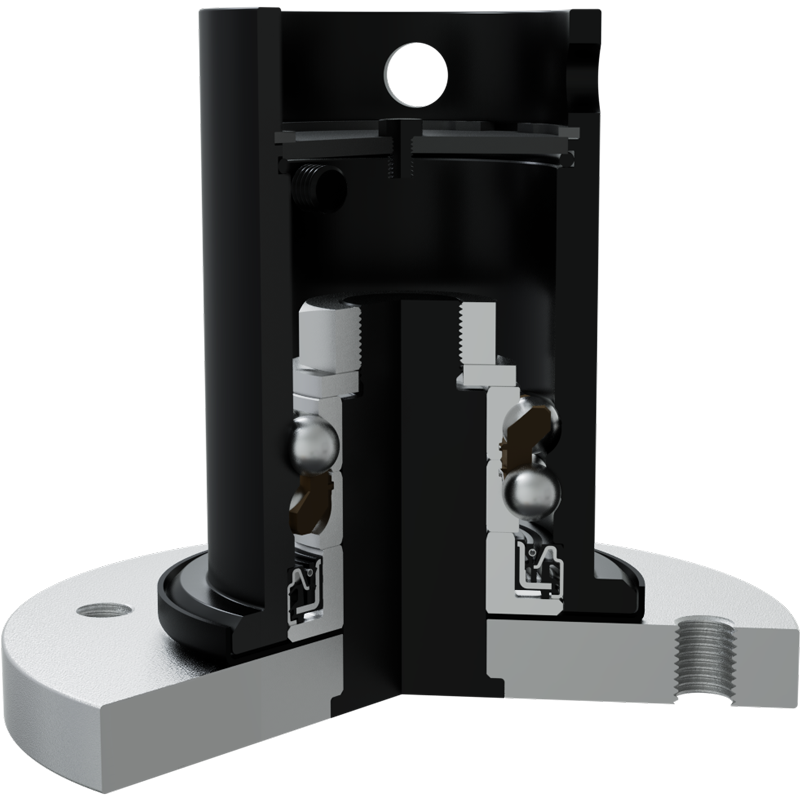

3D view
![](img/3D/IL60C-150-6T-D95-LH.png)
D | Outside diameter | 195 | mm |
J | Pitch circle diameter | 150 | mm |
H/T | Hole/Thread | 6xM16 | mm |
M | Outher Thread | M30x1.5-LH | mm |
L | Total length | 168 | mm |
L1 | The length of the sleeve | 137 | mm |
L2 | Flange thickness | 20 | mm |
L3 | The distance from the face of the sleeve to the axis of the locking hole | 16 | mm |
A | Locking hole diameter | 4x16.5 | mm |
D1 | Outer diameter of the sleeve | 95 | mm |
kg | Mass | 9.74 | kg |
Cdyn | Dynamic load rating | 75.86 | kN |
Co | Static load rating | 66.2 | kN |
Pu | Fatigue load limit | 2.78 | kN |

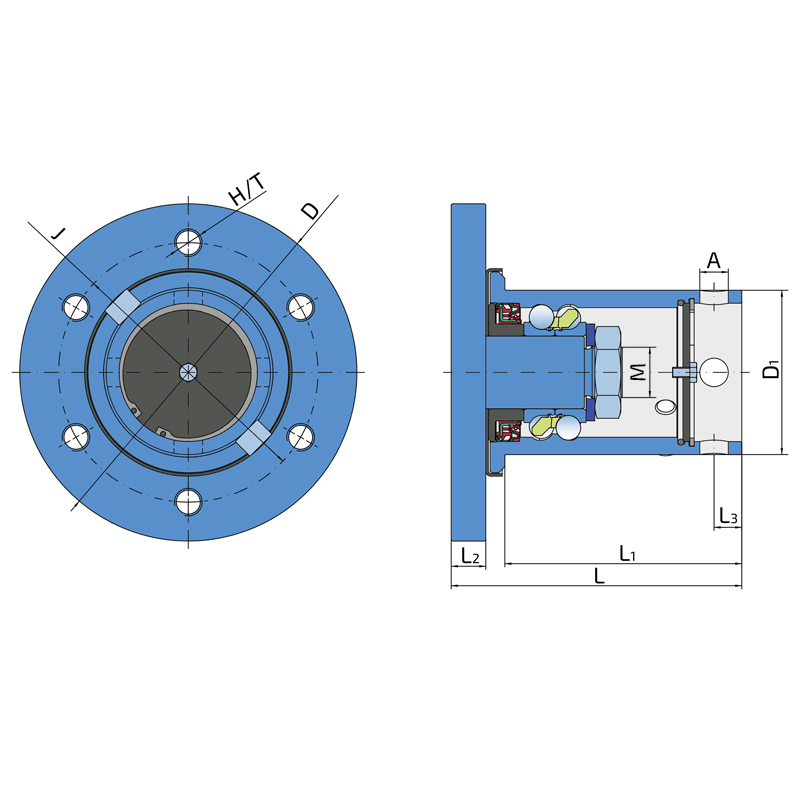

Tehnical Drawing
![](img/Drawings/IL60C-150-6T-D95-LH.jpg)
Sealing
SHEET METAL SHIELD + FORGED COVER PLATE + DIRTBLOCK SEAL / O-RING + COVER PLATE
Sheet metal shield, forged cover plate and dirtblock seal on the base side and o-ring with cover plate on the front side.
Sheet metal shield, forged cover plate and dirtblock seal together eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
Sealing Drawing
![](img/seal_hub/IL60C-SEAL.jpg?16032024)
