IL60C-150/6T-D95-RH

Integrated double row, split inner ring ball bearing

Application: Cultivators

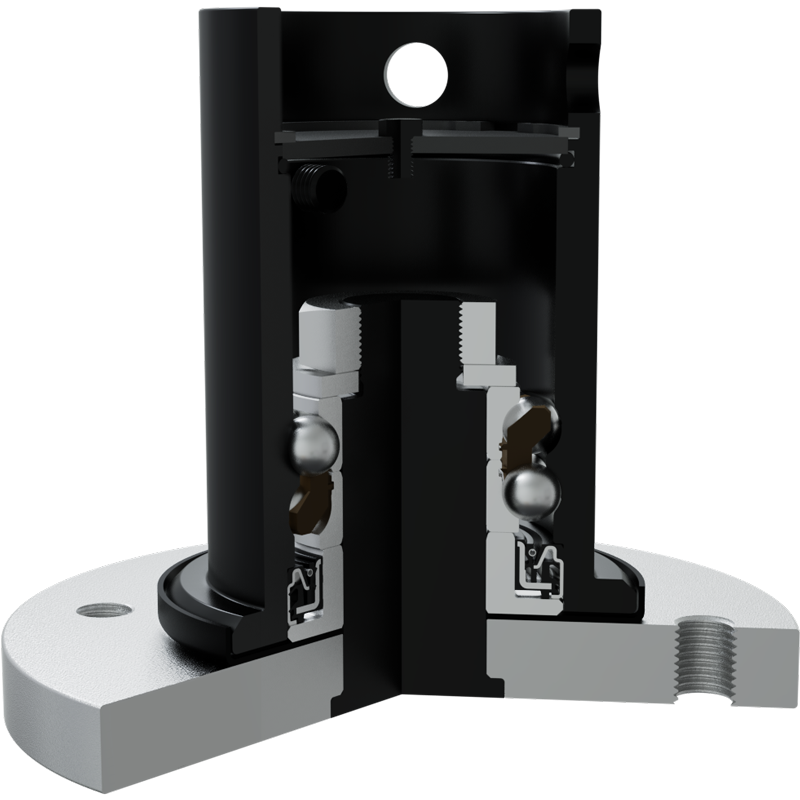

3D view

Technical Specification
DOutside diameter 195mm
JPitch circle diameter150mm
H/THole/Thread6xM16mm
MOuther ThreadM30x1.5-RHmm
LTotal length168mm
L1The length of the sleeve137mm
L2Flange thickness20mm
L3The distance from the face of the sleeve to the axis of the locking hole16mm
ALocking hole diameter4x16.5mm
D1Outer diameter of the sleeve95mm
kgMass9.74kg
CdynDynamic load rating75.86kN
CoStatic load rating66.2kN
PuFatigue load limit2.78kN

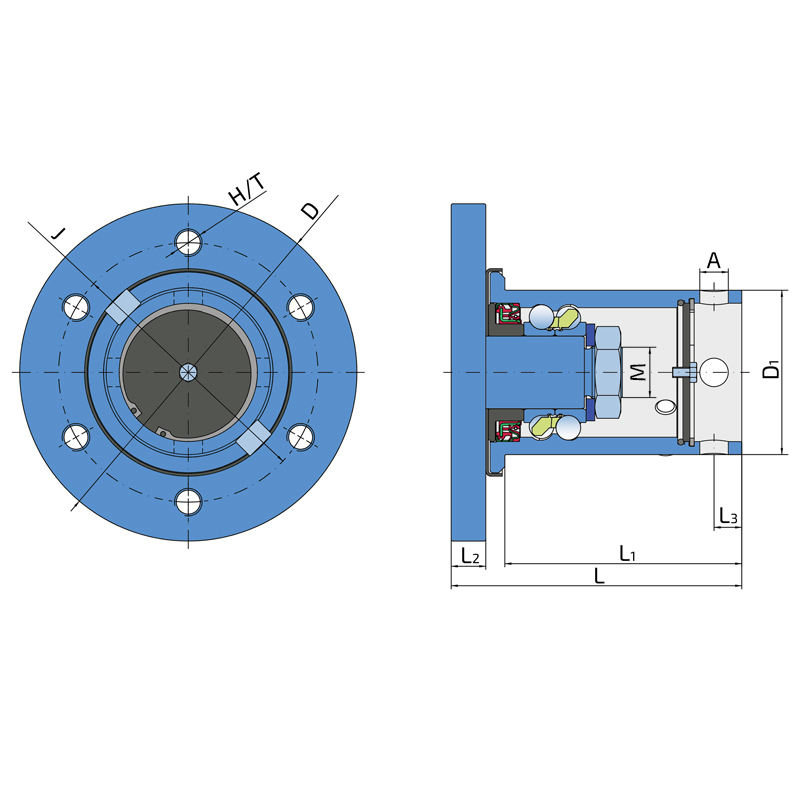

Tehnical Drawing

Sealing

SHEET METAL SHIELD + FORGED COVER PLATE + DIRTBLOCK SEAL / O-RING + COVER PLATE

Sheet metal shield, forged cover plate and dirtblock seal on the base side and o-ring with cover plate on the front side.

Sheet metal shield, forged cover plate and dirtblock seal together eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing

IL60C-150/6T-D95-RH

×

IL60C-150/6T-D95-RH

×

Sealing Type:

Sheet metal shield, forged cover plate and dirtblock seal on the base side and o-ring with cover plate on the front side.
