Housing units LEGS, four-bolt flanged housing units, cast iron, centring spigot, grub screw in inner ring, F seals

Application: Harvester Solution

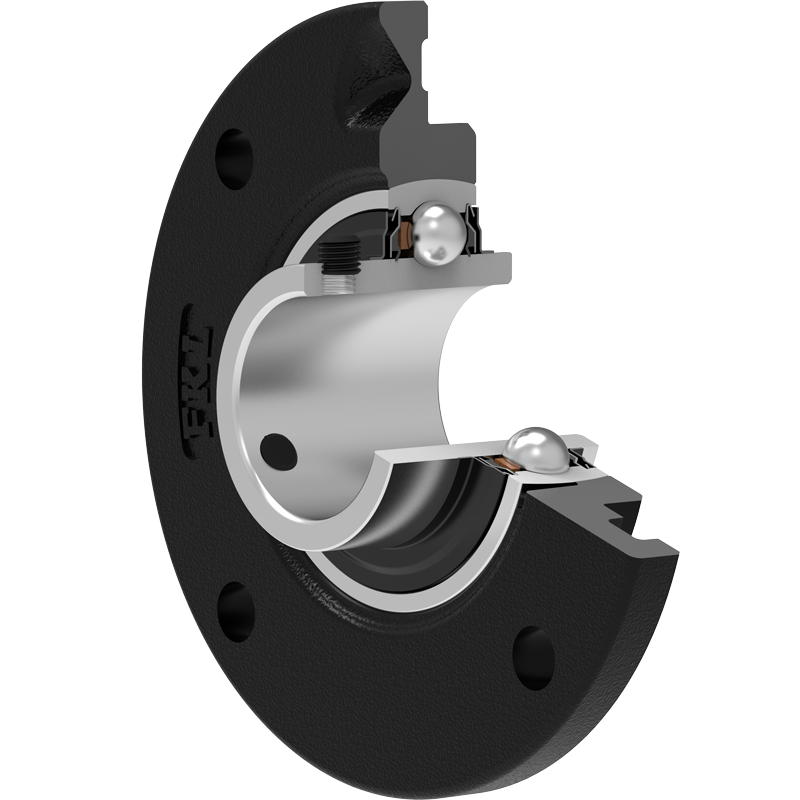

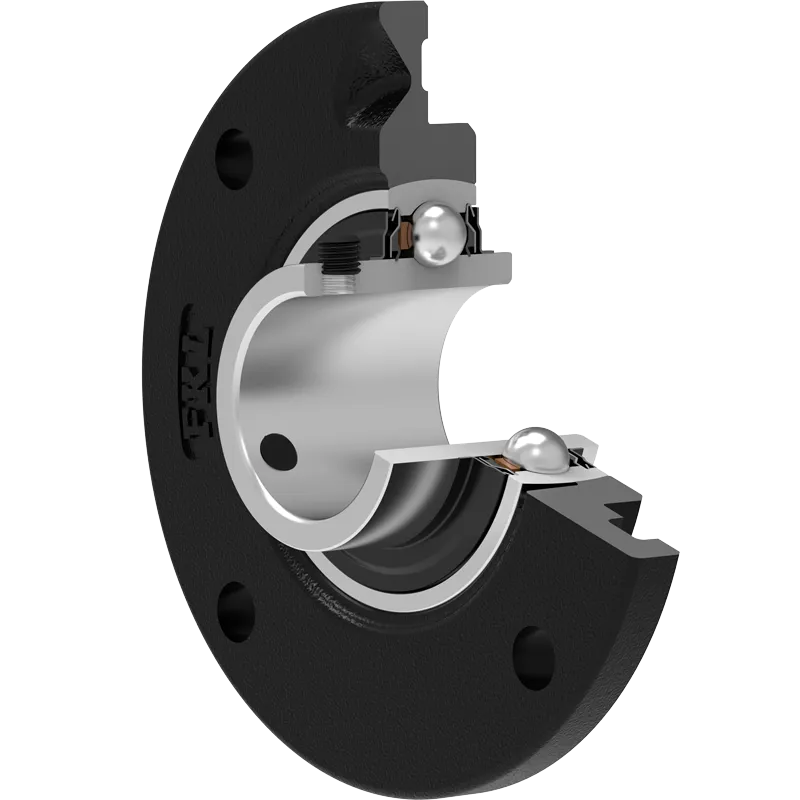

3D view

Technical Specification
dBore diameter40mm
DaCentering diameter100mm
LDiameter of housings145mm
ADistance from the housing flange to the front of the inner ring of the bearing29.2mm
A1Housing flange thickness11.5mm
A2Height of the housing23mm
JPitch circle diameter120mm
NHole diameter11.5mm
BWidth inner ring 49.2mm
kgMass1.656kg
CdynDynamic load rating30.7kN
CoStatic load rating19kN
PuFatigue load limit0.798kN

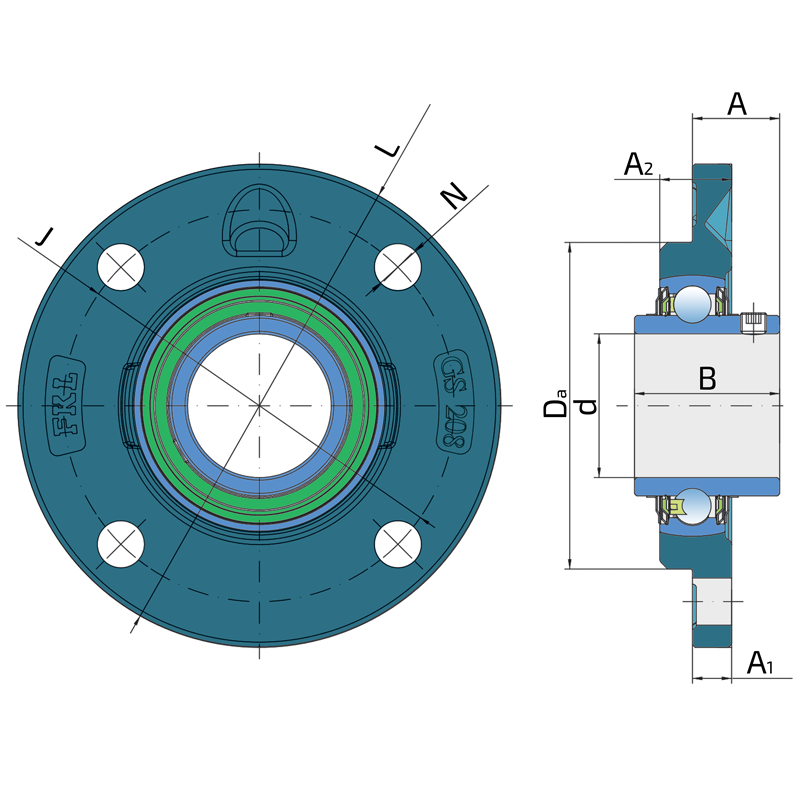

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LEGS 208 2F.H

×

LEGS 208 2F.H

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal

LEGS 208 2F.H

×
