Y BEARING UNITS

UYC 207 2S

Y-Bearing Flanged Units With Round Pressed Steel Housing "C"

3D view

Technical Specification
dBore diameter35mm
DaCentering diameter81mm
LDiameter of housings122mm
ADistance from the housing flange to the front of the inner ring of the bearing31.9mm
A1Housing flange thickness2.5mm
A2Height of the housing10.5mm
JPitch circle diameter100mm
NSqare hole dimension10.5mm
FrRadial load6.5kN
FaAxial load3.2kN
kgMass0.81kg
CdynDynamic load rating25.5kN
CoStatic load rating15.3kN
PuFatigue load limit0.655kN

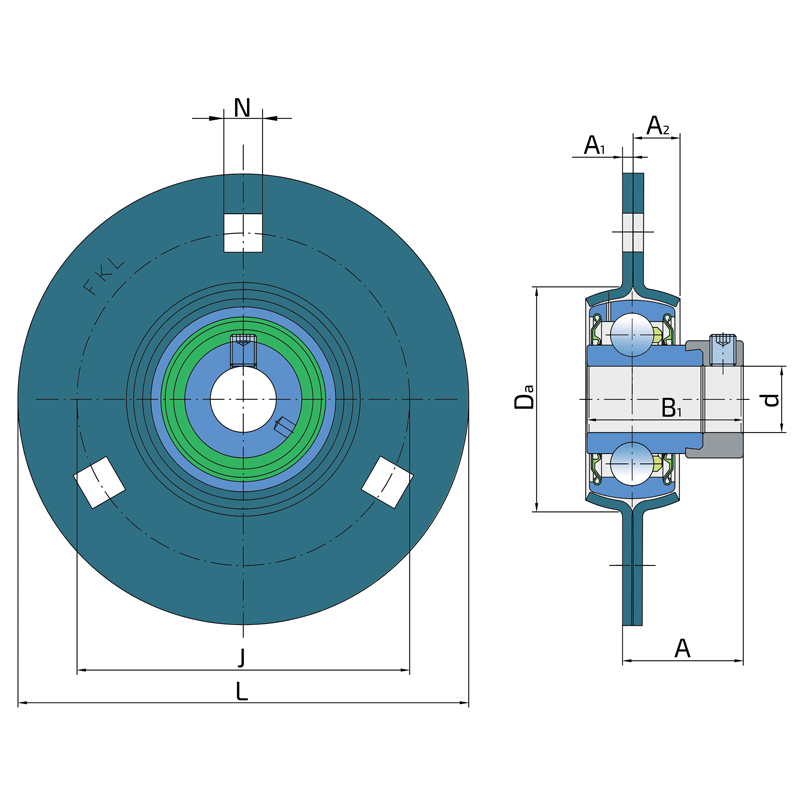

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

UYC 207 2S

×

UYC 207 2S

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.
