Y BEARING UNITS
LEN 206 2T
Y-Bearing Flanged Units With Oval Grey Cast Iron Housing "N"

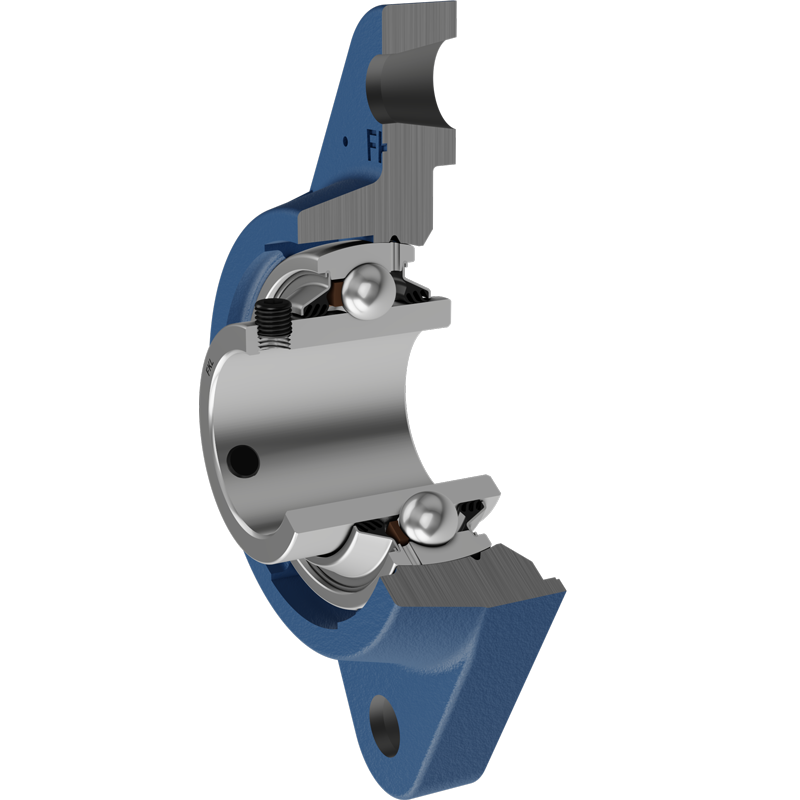

3D view
| d | Bore diameter | 30 | mm |
| L | Overall width | 80 | mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 40.2 | mm |
| A1 | Total housing width | 30.5 | mm |
| A2 | Housing flange thickness | 30.5 | mm |
| H | Housing height | 148 | mm |
| J | Distance between the holes | 117 | mm |
| N | Diameter of attachment slot | 16 | mm |
| kg | Mass | 0.9 | kg |
| Cdyn | Dynamic load rating | 19.5 | kN |
| Co | Static load rating | 11.2 | kN |
| Pu | Fatigue load limit | 0.475 | kN |

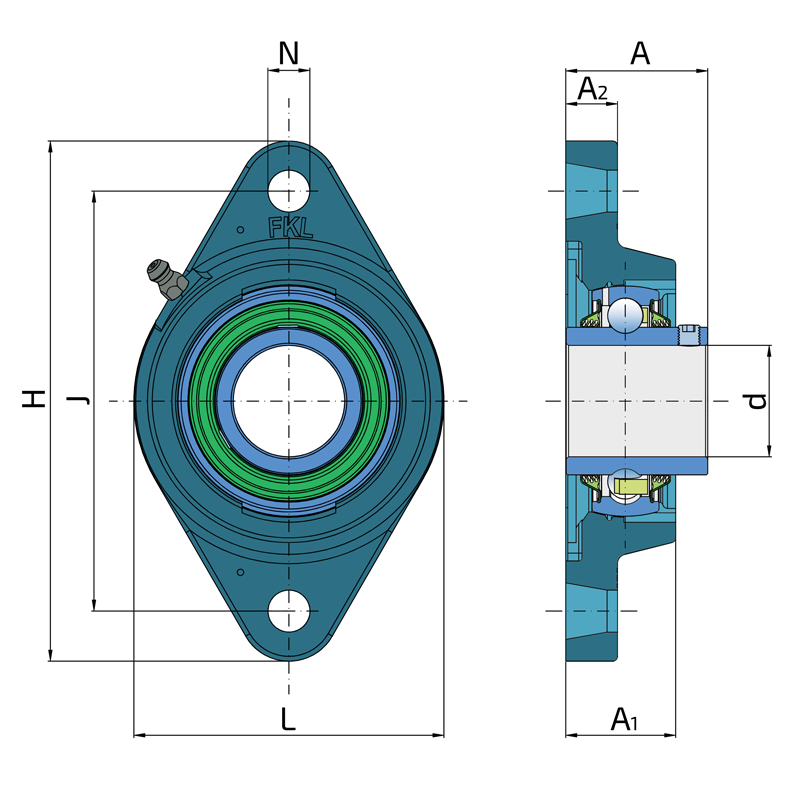

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
