Y BEARINGS
LS 205 2T
Y-Ball Bearings With Extended Standard Inner Ring

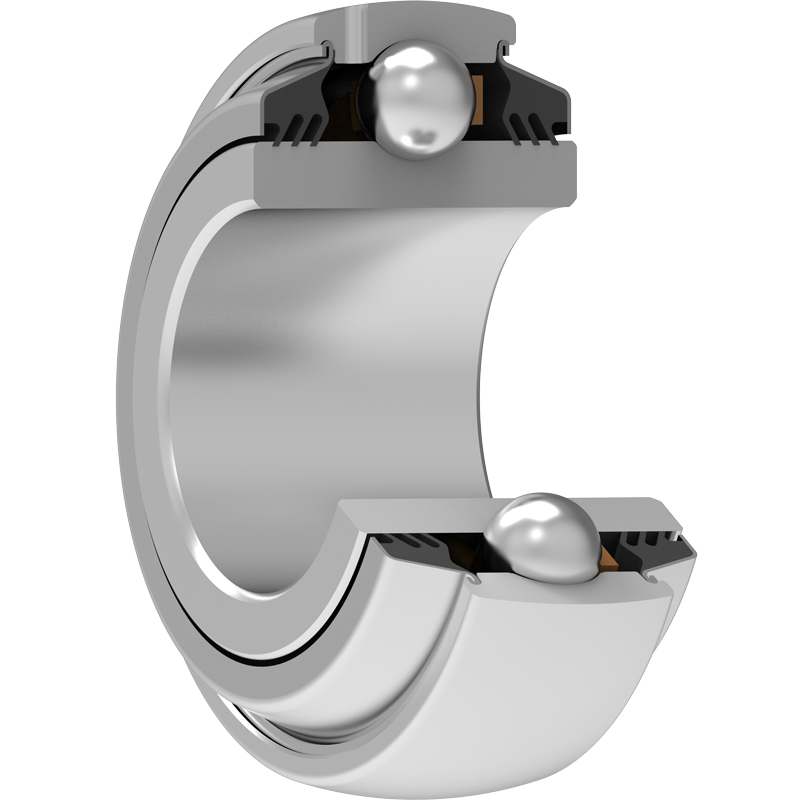

3D view
| d | Bore diameter | 25 | mm |
| D | Outside diameter | 52 | mm |
| B | Width inner ring | 24 | mm |
| C | Width outer ring | 15 | mm |
| d1 | Outer diameter inner ring | 33.6 | mm |
| E | Distance from raceway centre to the hole for lubrication | 4.3 | mm |
| Cdyn | Dynamic load rating | 14 | kN |
| Co | Static load rating | 7.8 | kN |
| Pu | Fatigue load limit | 0.335 | kN |
| kg | Mass | 0.14 | kg |

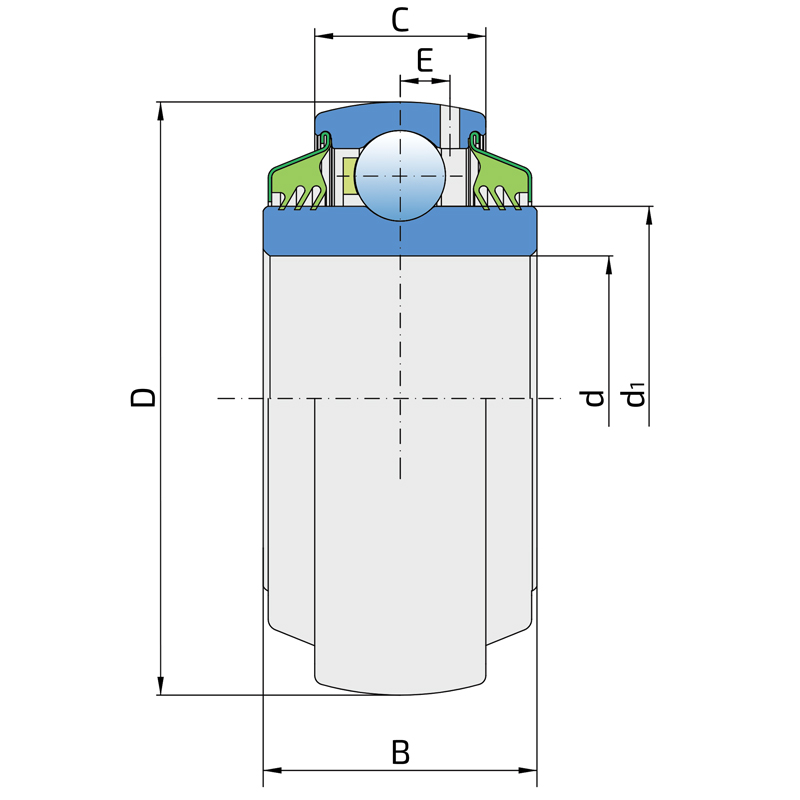

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
