Y BEARING UNITS
LEF 210 2T
Y-Bearing Flanged Units With Square Grey Cast Iron Housing "F"
3D view
| d | Bore diameter | 50 | mm |
| d1 | Outer diameter inner ring | 62.5 | mm |
| L | Total length | 143 | mm |
| J | Distance between the holes | 111 | mm |
| N | Hole diameter | 16H13 | mm |
| A | Overall width | 54.6 | mm |
| A1 | Total housing width | 40 | mm |
| A2 | Housing flange thickness | 11 | mm |
| B | Width inner ring | 51.6 | mm |
| kg | Mass | 2.6 | kg |
| Cdyn | Dynamic load rating | 35.1 | kN |
| Co | Static load rating | 23.2 | kN |
| Pu | Fatigue load limit | 0.974 | kN |

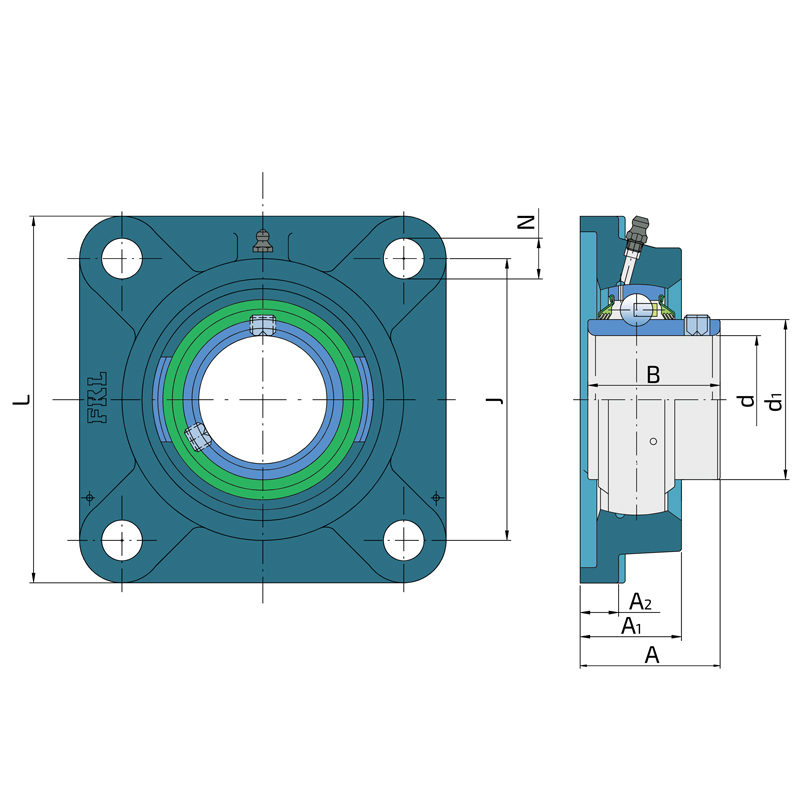

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
