Y BEARINGS

UH 209/40 2S.SH

Y-Ball Bearings With Integral Adapter Sleeve

Application: Harvester

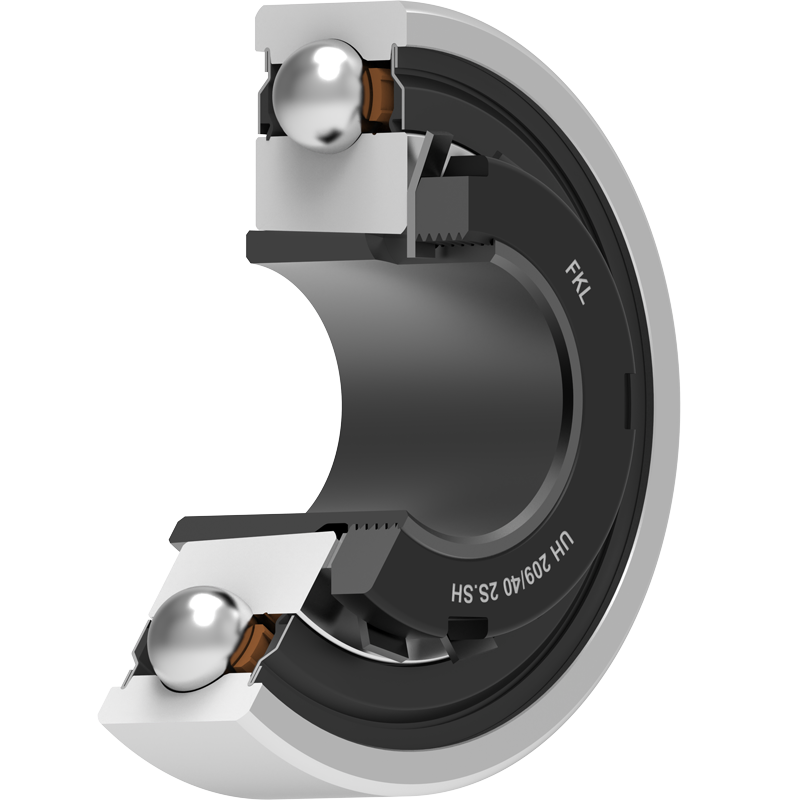

3D view

Technical Specification
dBore diameter40mm
DOutside diameter 85mm
WKM nut outside diameter65mm
D2MB Washer outside diameter69mm
B1Width adapter sleeve39mm
C Width outer ring 23mm
LKM nut width10mm
MThread adapter sleeve45x1.5mm
kgMass0.73kg
CdynDynamic load rating33.2kN
CoStatic load rating21.6kN
PuFatigue load limit0.915kN

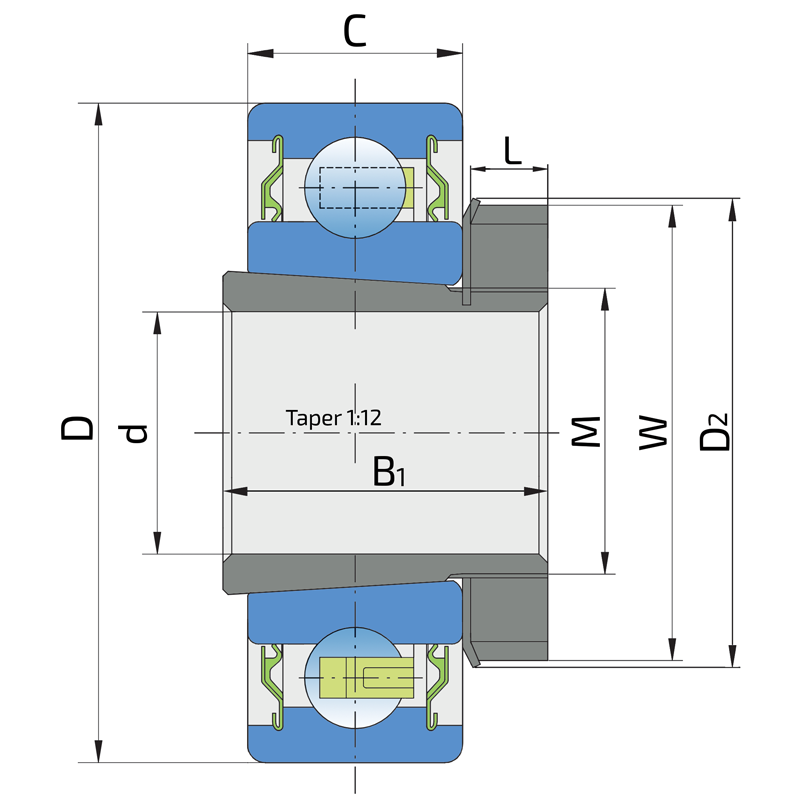

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

UH 209/40 2S.SH

×

UH 209/40 2S.SH

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.

UH 209/40 2S.SH

×
