IL20-82/5T-B16

The Bearing Solution For Seeding Machines, Integrated Flange

Application: Seed drill

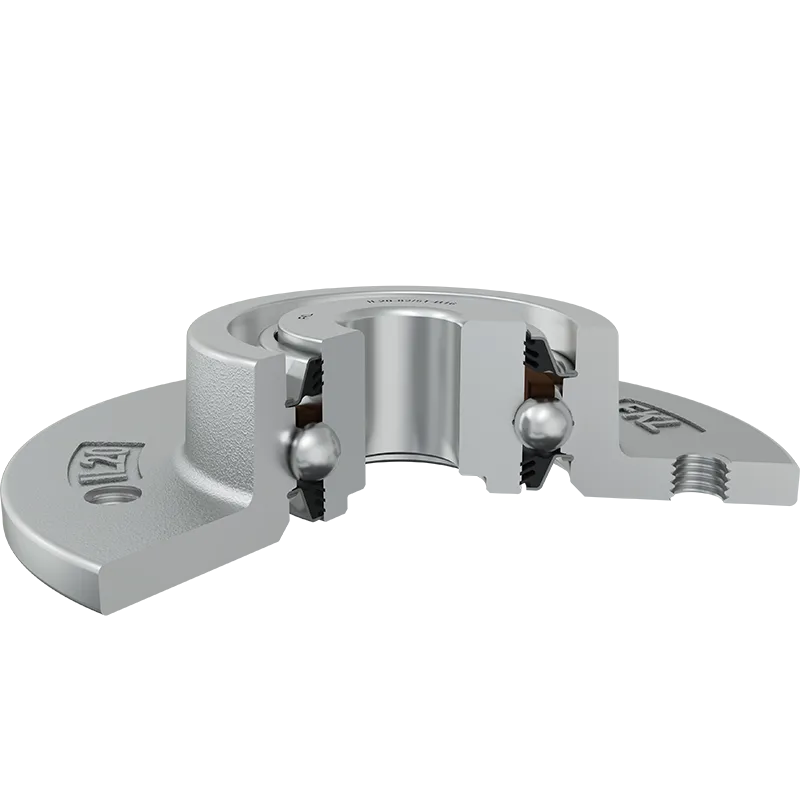

3D view

Technical Specification
JPitch circle diameter82mm
DOutside diameter 108mm
H/THole/Thread5xM8mm
d1Bore diameter 16.2mm
LTotal length24.5mm
L2Bearing width24.5mm
kgMass0.64kg
CdynDynamic load rating22kN
CoStatic load rating15.2kN
PuFatigue load limit0.638kN

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

Sealing Drawing

IL20-82/5T-B16

×

IL20-82/5T-B16

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.

IL20-82/5T-B16

×
