AGRO POINT HUBS

IL20-75/6H-B17+GK

The Bearing Solution For Seeding Machines, Integrated Flange

Application: Mounted in-line mechanical seed drill, in-line pneumatic combi seed drill, pneumatic precision planter with telescopic frame, pneumatic seeder

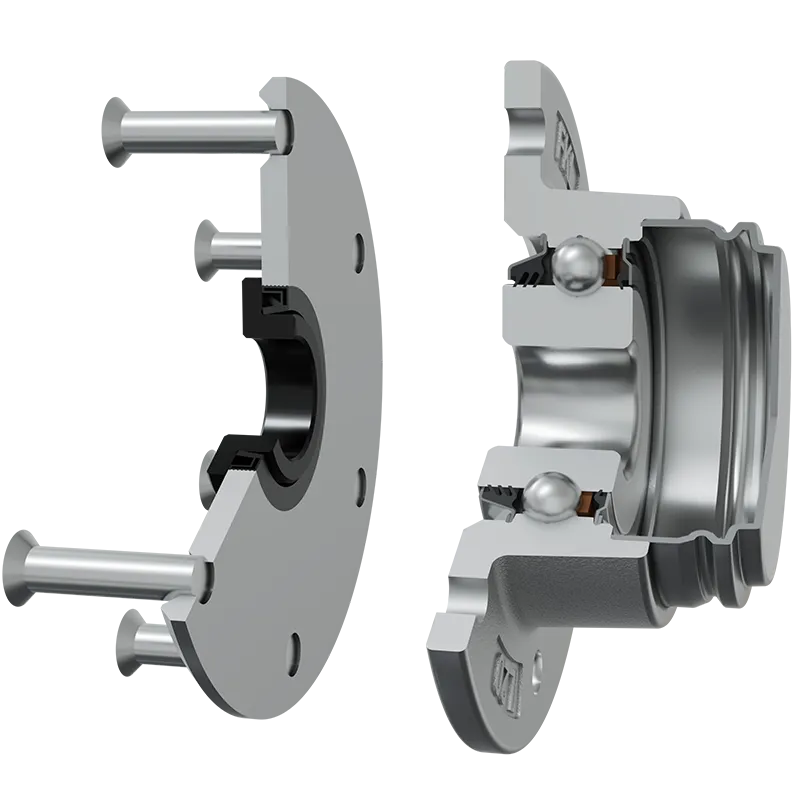

3D view

Technical Specification
J	Pitch circle diameter	75	mm
D	Outside diameter	94	mm
H/T	Hole/Thread	6x6.4	mm
d1	Bore diameter	17	mm
L	Total length	37.7	mm
L1	Total flange length	24	mm
L2	Bearing width	18	mm
kg	Mass	0.75	kg
Cdyn	Dynamic load rating	22	kN
Co	Static load rating	15.2	kN
Pu	Fatigue load limit	0.64	kN

Tehnical Drawing

Sealing

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side.

3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.

S seal with a Metal protective cap on the front side eliminates bearing contaminants.

Sealing Drawing
