Y-Ball Bearings With Eccentric Locking Collar

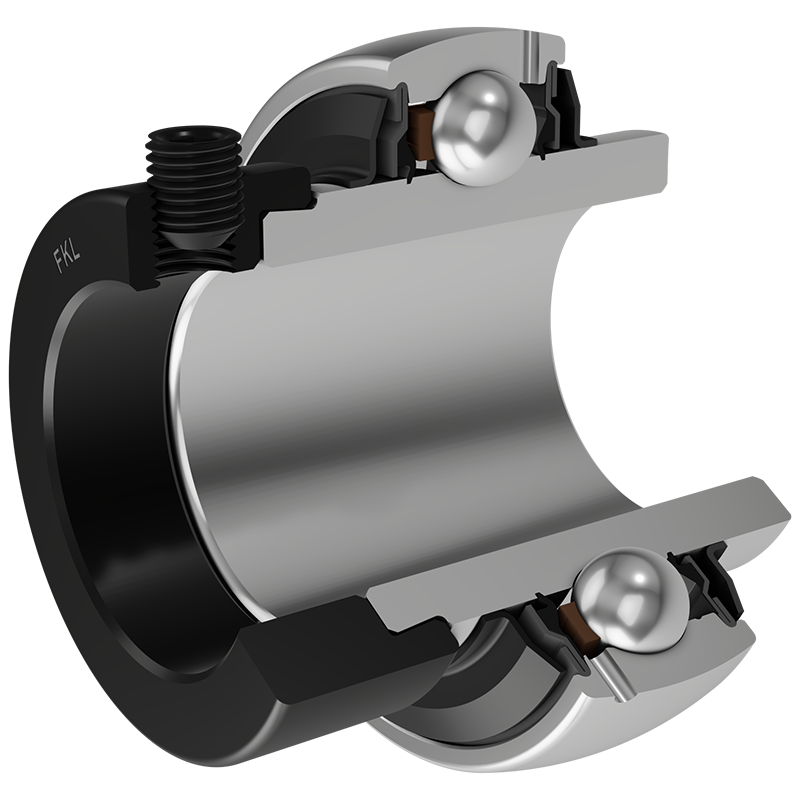

3D view

Technical Specification
dBore diameter31.75mm
DOutside diameter 72mm
BWidth inner ring 37.6mm
C Width outer ring 19mm
sDistance from inner ring side face to raceway centre 18.8mm
d1Outer diameter inner ring 46.1mm
EDistance from raceway centre to the hole for lubrication 5.6mm
GsSet screw 3/8-24 UNFinch
swHexagonal key size for set screw 4.763mm
swHexagonal key size for set screw3/16inch
r1,2Inner ring Chamfer dimension1mm
r3,4Outside ring Chamfer dimension1mm
B1Width inner ring with locking collar51.1mm
d2Locking collar outside diameter51.2mm
B2Width locking collar17.5mm
kgMass0.57kg
CdynDynamic load rating25.5kN
CoStatic load rating15.3kN
PuFatigue load limit0.66kN

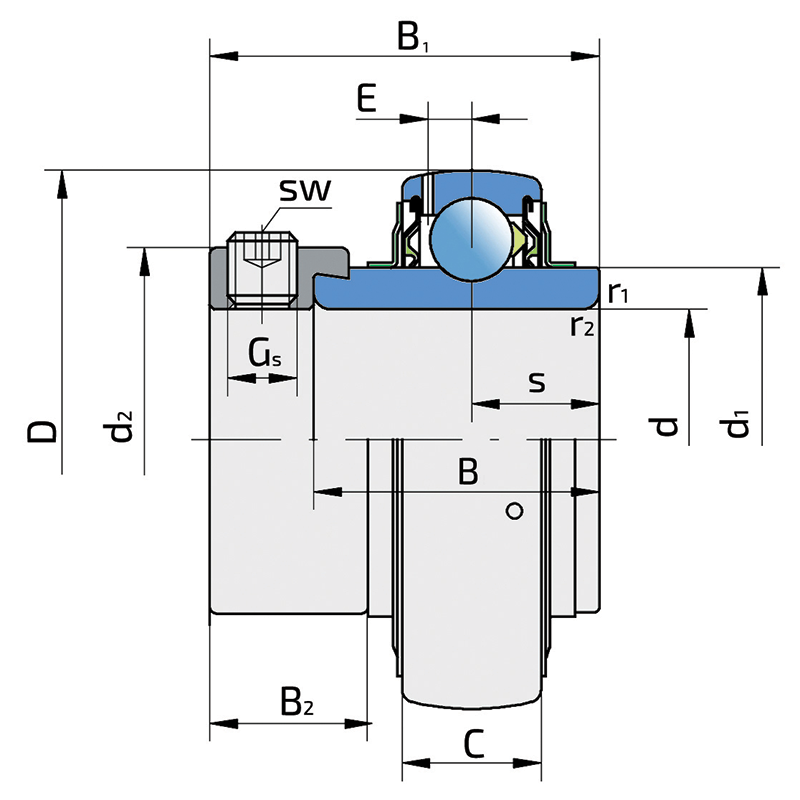

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LY 207-104 2F

×

LY 207-104 2F

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal

LY 207-104 2F

×
