Y BEARINGS
LY 212 2T
Y-Ball Bearings With Eccentric Locking Collar

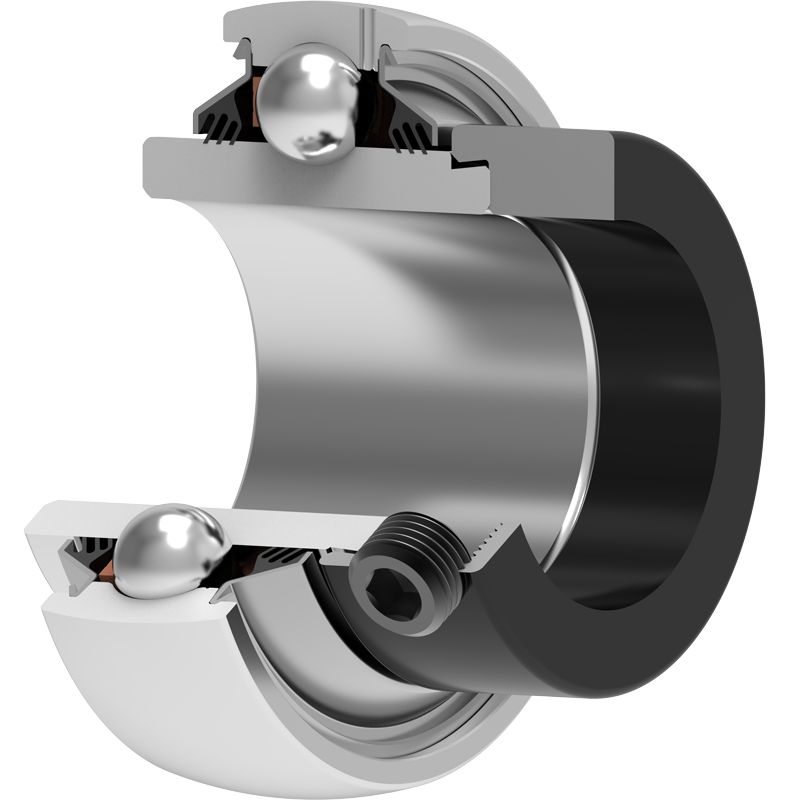

3D view
| d | Bore diameter | 60 | mm |
| D | Outside diameter | 110 | mm |
| B | Width inner ring | 62 | mm |
| C | Width outer ring | 26 | mm |
| s | Distance from inner ring side face to raceway centre | 31 | mm |
| d1 | Outer diameter inner ring | 75.5 | mm |
| E | Distance from raceway centre to the hole for lubrication | 7.7 | mm |
| Gs | Set screw | M10x1 | mm |
| sw | Hexagonal key size for set screw | 5 | mm |
| r1,2 | Inner ring Chamfer dimension | 1.5 | mm |
| r3,4 | Outside ring Chamfer dimension | 2 | mm |
| B1 | Width inner ring with locking collar | 77.8 | mm |
| d2 | Locking collar outside diameter | 84 | mm |
| B2 | Width locking collar | 22.3 | mm |
| Cdyn | Dynamic load rating | 52.7 | kN |
| Co | Static load rating | 36 | kN |
| Pu | Fatigue load limit | 1.53 | kN |
| kg | Mass | 1.67 | kg |

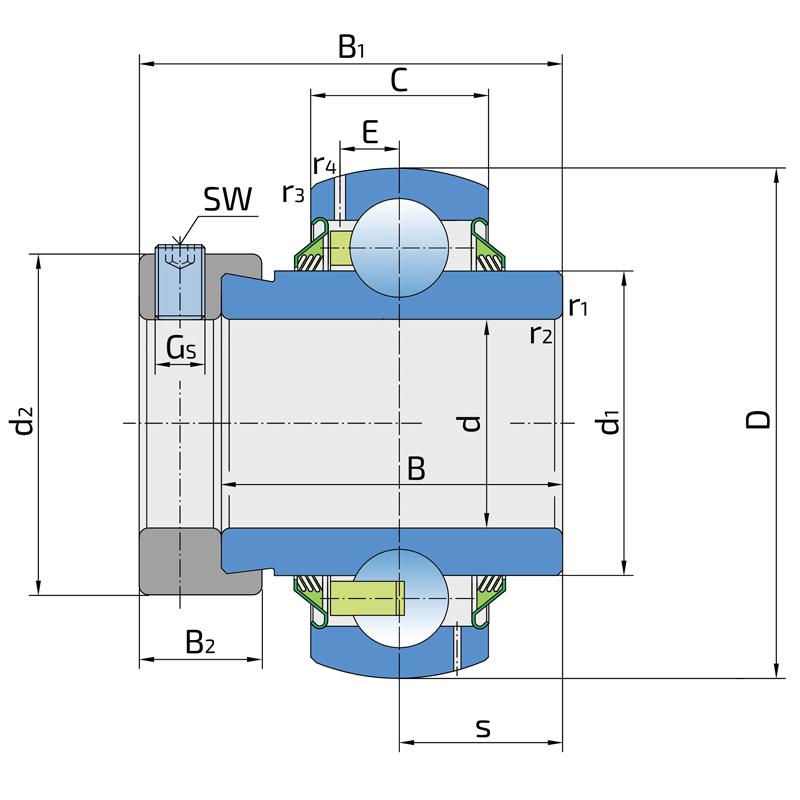

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
