Y BEARINGS
LE 214 TDT

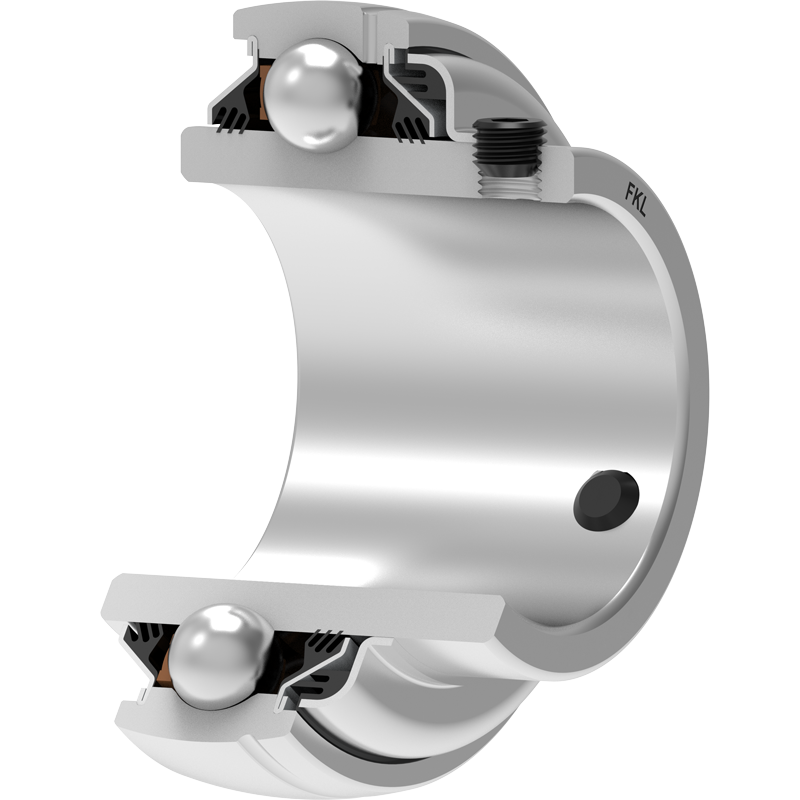

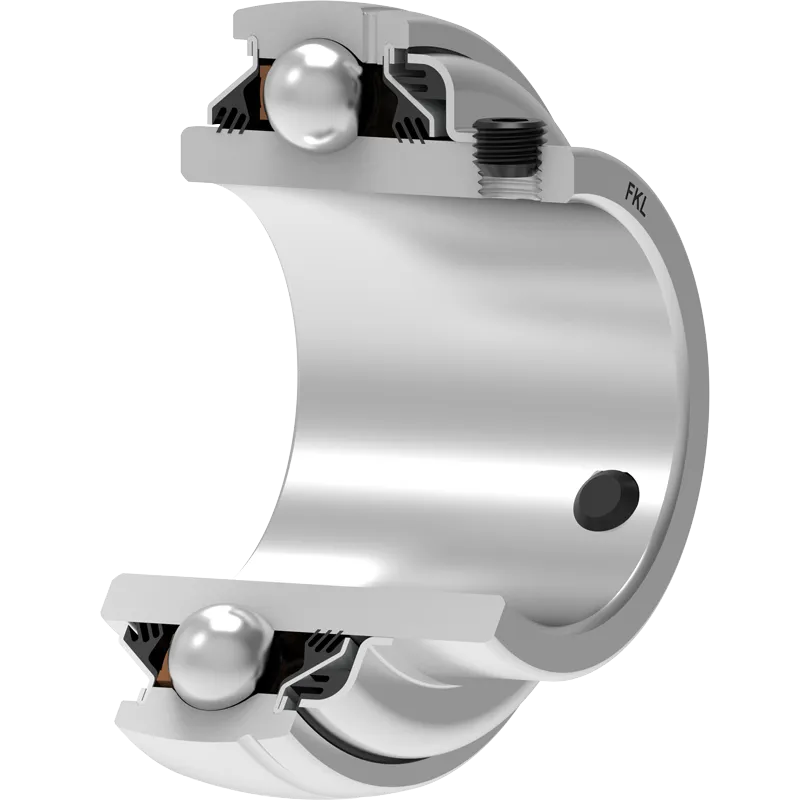

3D view
d | Bore diameter | 70 | mm |
D | Outside diameter | 125 | mm |
B | Width inner ring | 69.9 | mm |
C | Width outer ring | 34 | mm |
s | Distance from inner ring side face to raceway centre | 30.2 | mm |
d1 | Outer diameter inner ring | 87.05 | mm |
Gs | Set screw | M10x1 | mm |
kg | Mass | 2.04 | kg |
Cdyn | Dynamic load rating | 62.4 | kN |
Co | Static load rating | 44 | kN |
Pu | Fatigue load limit | 1.848 | kN |

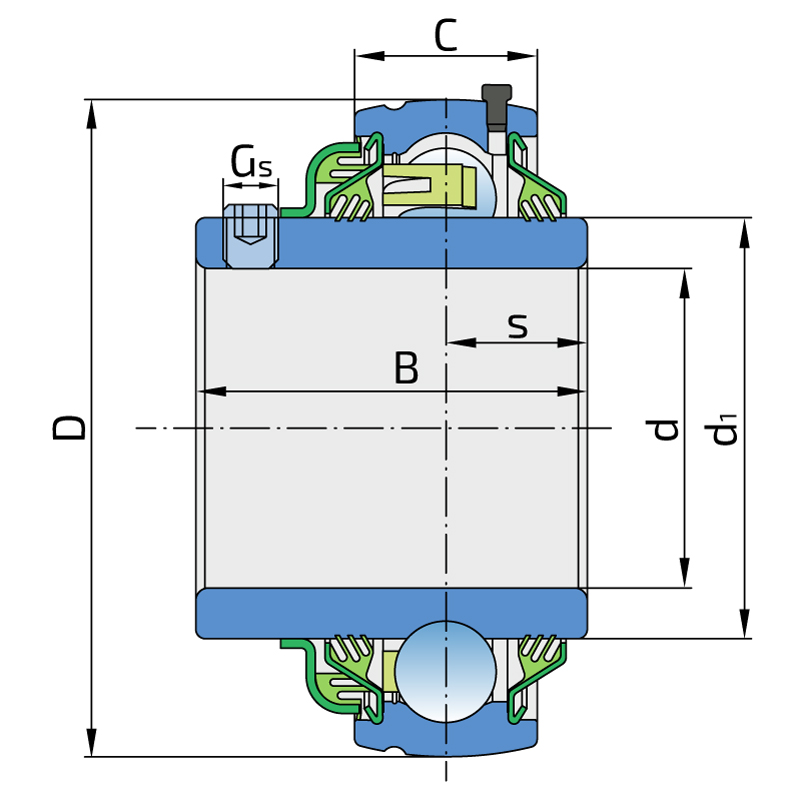

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
