Y BEARINGS
LE 209 TDT

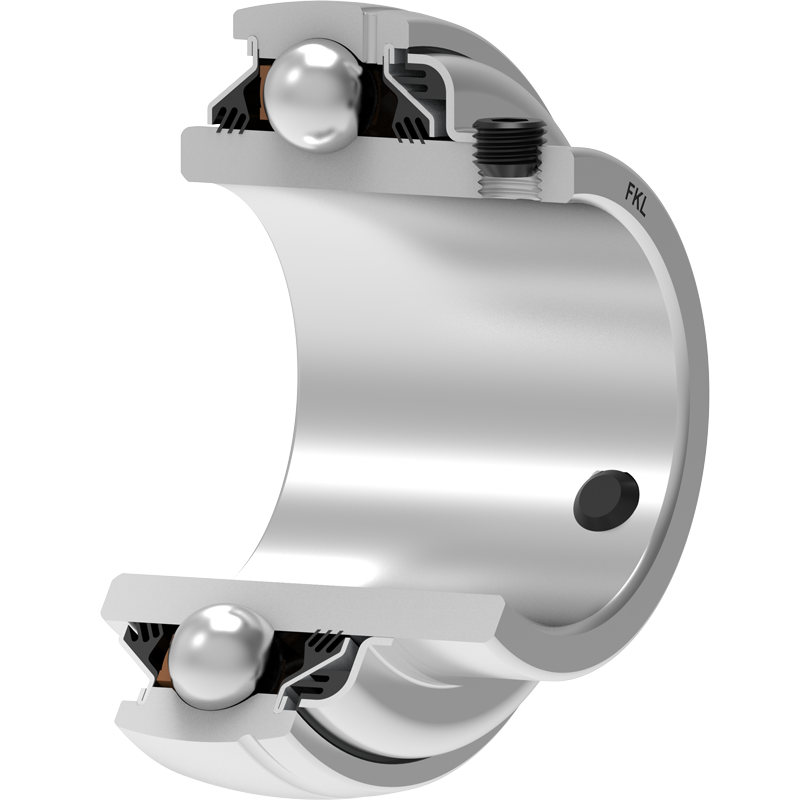

3D view
| d | Bore diameter | 45 | mm |
| D | Outside diameter | 85 | mm |
| B | Width inner ring | 49.2 | mm |
| C | Width outer ring | 22 | mm |
| s | Distance from inner ring side face to raceway centre | 17.5 | mm |
| d1 | Outer diameter inner ring | 56.8 | mm |
| Gs | Set screw | M8x1 | mm |
| kg | Mass | 0.655 | kg |
| Cdyn | Dynamic load rating | 34.6 | kN |
| Co | Static load rating | 20.4 | kN |
| Pu | Fatigue load limit | 0.857 | kN |

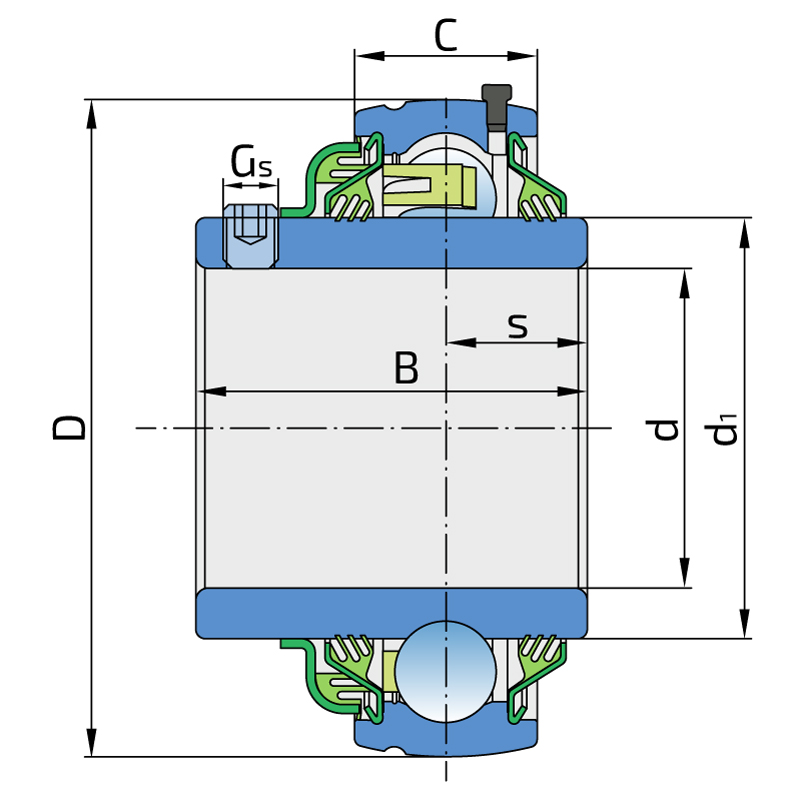

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
