Y BEARINGS
LE 215 2TB
Y-Ball Bearings With Grub Screw Locking

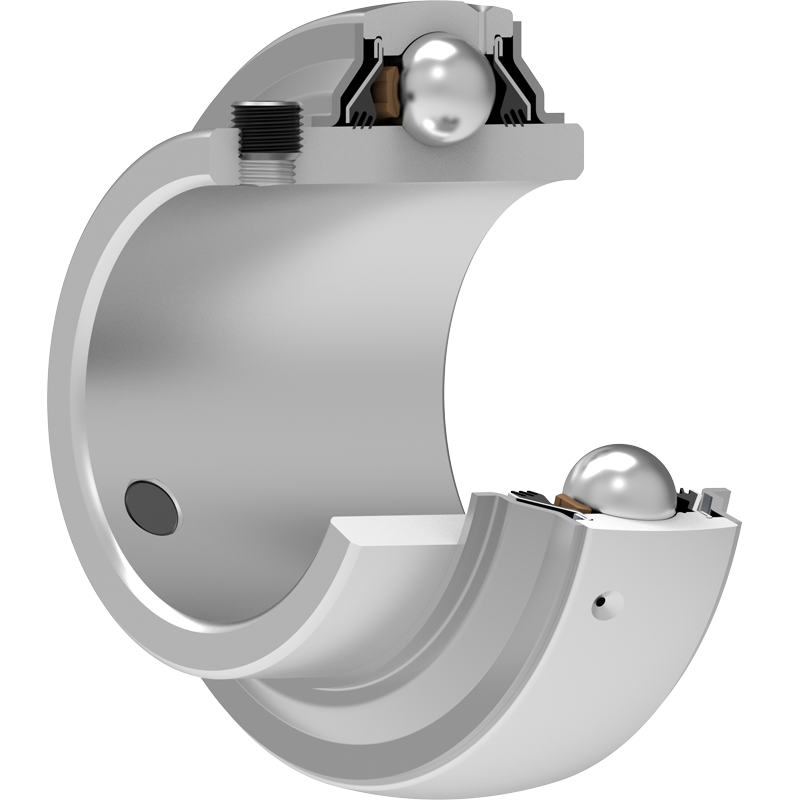

3D view
d | Bore diameter | 75 | mm |
D | Outside diameter | 130 | mm |
B | Width inner ring | 73.3 | mm |
C | Width outer ring | 29 | mm |
s | Distance from inner ring side face to raceway centre | 27 | mm |
d1 | Outer diameter inner ring | 92.1 | inch |
E | Distance from raceway centre to the hole for lubrication | 8.3 | mm |
Gs | Set screw | M10x1 | mm |
sw | Hexagonal key size for set screw | 5 | mm |
r1,2 | Inner ring Chamfer dimension | 1.5 | mm |
r3,4 | Outside ring Chamfer dimension | 2 | mm |
Cdyn | Dynamic load rating | 66.3 | kN |
Co | Static load rating | 49 | kN |
Pu | Fatigue load limit | 2.04 | kN |
kg | Mass | 2.1 | kg |

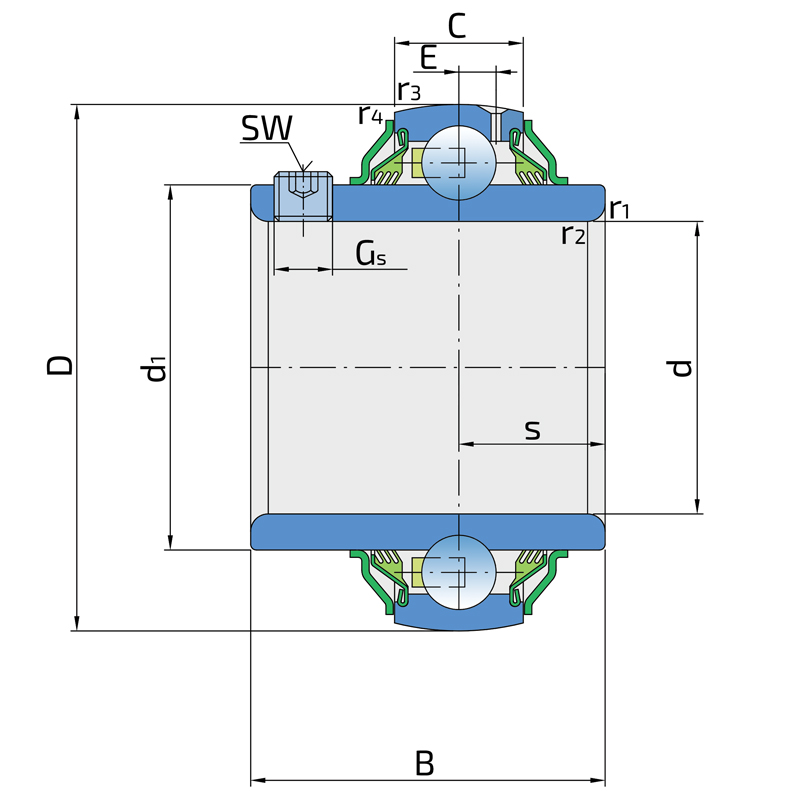

Tehnical Drawing
Sealing
METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
