LE 214 2TB
Y-Ball Bearings With Grub Screw Locking

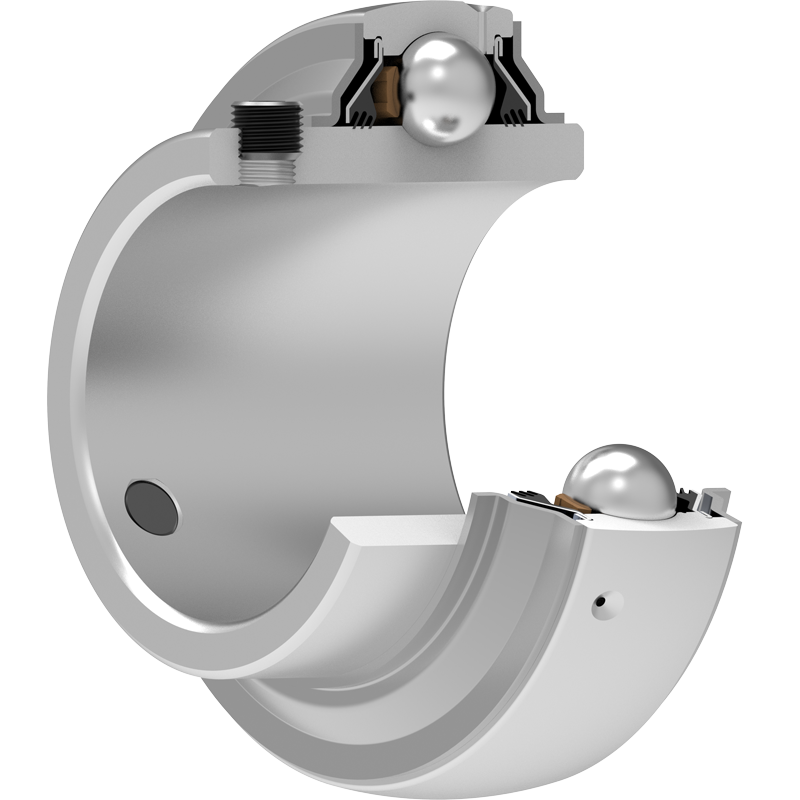

3D view
| d | Bore diameter | 70 | mm |
| D | Outside diameter | 125 | mm |
| B | Width inner ring | 69.9 | mm |
| C | Width outer ring | 28 | mm |
| s | Distance from inner ring side face to raceway centre | 30.2 | mm |
| d1 | Outer diameter inner ring | 87.1 | mm |
| E | Distance from raceway centre to the hole for lubrication | 8.1 | mm |
| Gs | Set screw | M10x1 | mm |
| sw | Hexagonal key size for set screw | 5 | mm |
| r1,2 | Inner ring Chamfer dimension | 1.5 | mm |
| r3,4 | Outside ring Chamfer dimension | 2 | mm |
| Cdyn | Dynamic load rating | 62.4 | kN |
| Co | Static load rating | 44 | kN |
| Pu | Fatigue load limit | 1.86 | kN |
| kg | Mass | 1.9 | kg |

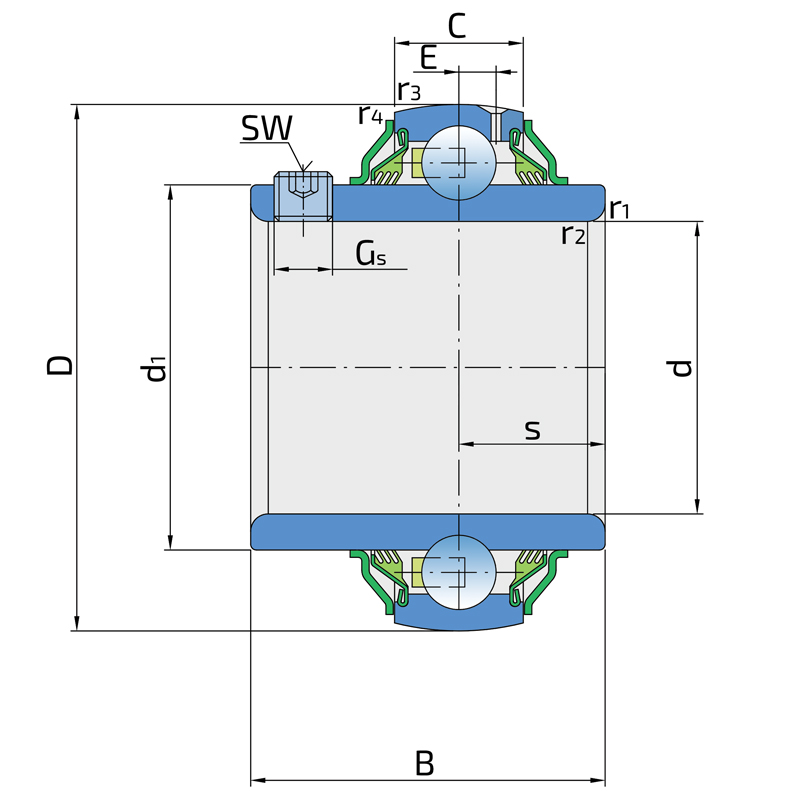

Technical Drawing
Sealing
METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
