Y BEARINGS
LE 205 2T

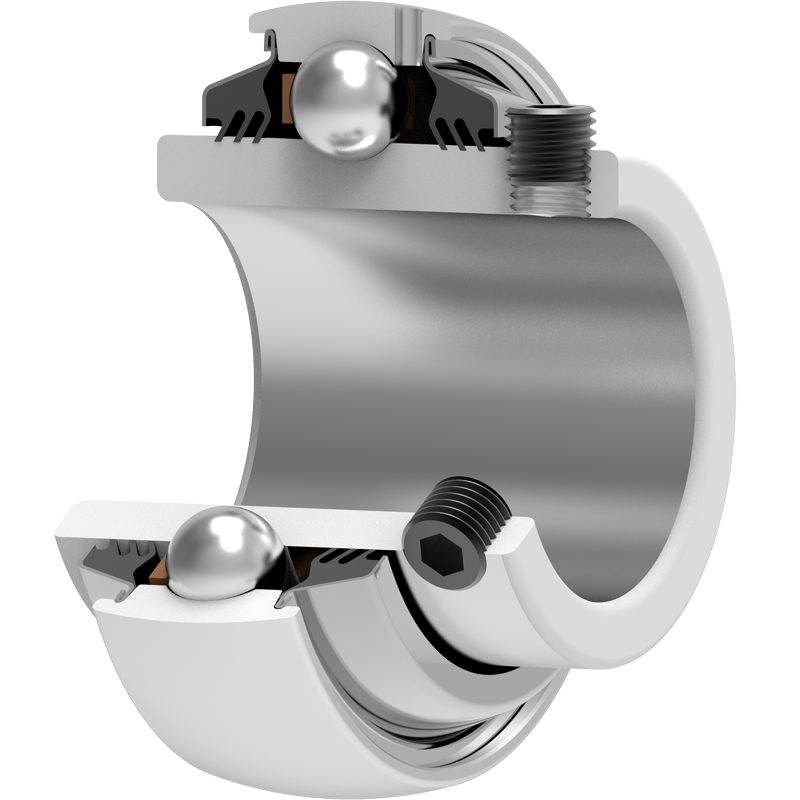

Y-Ball Bearings With Grub Screw Locking
![](img/products/LE-205-2T.png)
![](img/image.png)
3D view
![](img/3D/LE-205-2T.png)
d | Bore diameter | 25 | mm |
D | Outside diameter | 52 | mm |
B | Width inner ring | 34.1 | mm |
C | Width outer ring | 15 | mm |
s | Distance from inner ring side face to raceway centre | 14.3 | mm |
d1 | Outer diameter inner ring | 33.6 | mm |
E | Distance from raceway centre to the hole for lubrication | 4.3 | mm |
Gs | Set screw | M6x0.75 | mm |
sw | Hexagonal key size for set screw | 3 | mm |
r1,2 | Inner ring Chamfer dimension | 0.6 | mm |
r3,4 | Outside ring Chamfer dimension | 0.6 | mm |
Cdyn | Dynamic load rating | 14 | kN |
Co | Static load rating | 7.8 | kN |
Pu | Fatigue load limit | 0.335 | kN |
kg | Mass | 0.17 | kg |

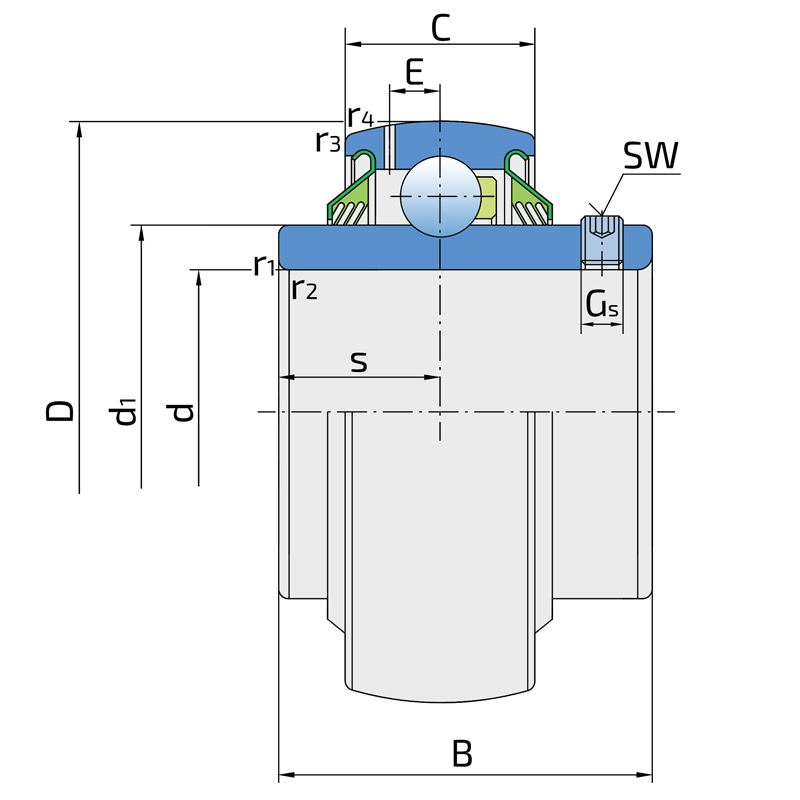

Tehnical Drawing
![](img/Drawings/LE-205-2T.jpg)
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
![](img/seal_hub/2T.png?16032024)
