UNIVERSAL SOLUTION
LEFN 212 2TB.H
Bearing Unit
Application: Cultivators and disc seed drill

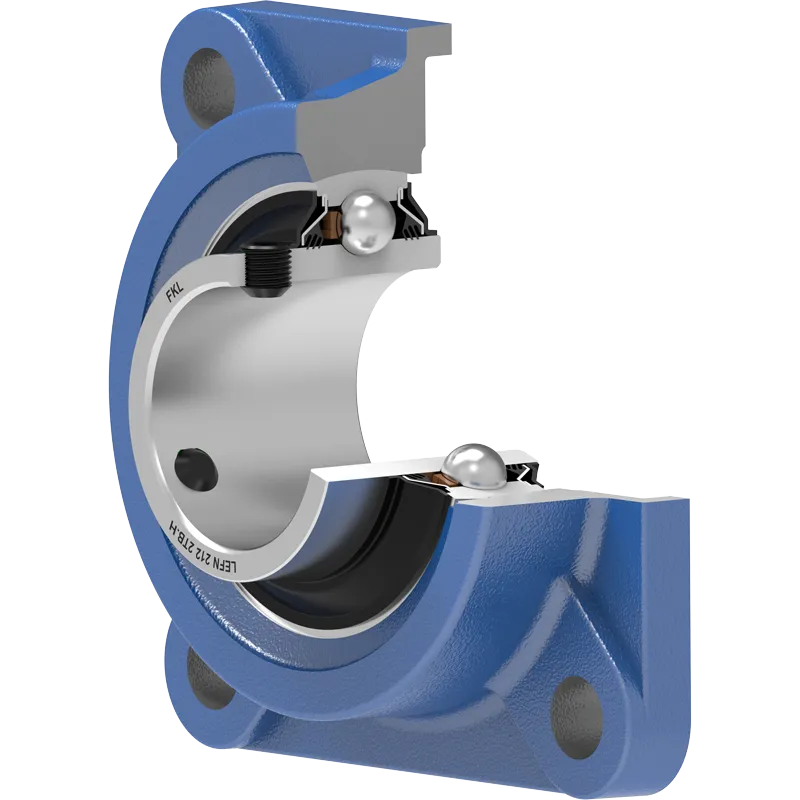

3D view
| d | Bore diameter | 60 | mm |
| d1 | Outer diameter inner ring | 75.64 | mm |
| L | Overall length | 175 | mm |
| J | Distance between the holes | 143 | mm |
| N | Hole diameter | 19H13 | mm |
| A | Overall width | 68.7 | mm |
| A1 | Total housing width | 48 | mm |
| A2 | Housing flange thickness | 15 | mm |
| B | Width inner ring | 65.1 | mm |
| kg | Mass | 4.27 | kg |
| Cdyn | Dynamic load rating | 52 | kN |
| Co | Static load rating | 36 | kN |
| Pu | Fatigue load limit | 1.512 | kN |
Technical Drawing
Sealing
METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
