HARVESTER
W 208PP16
Hexagonal Bore Series With Cylindrical Outer Ring
Application: Harvester

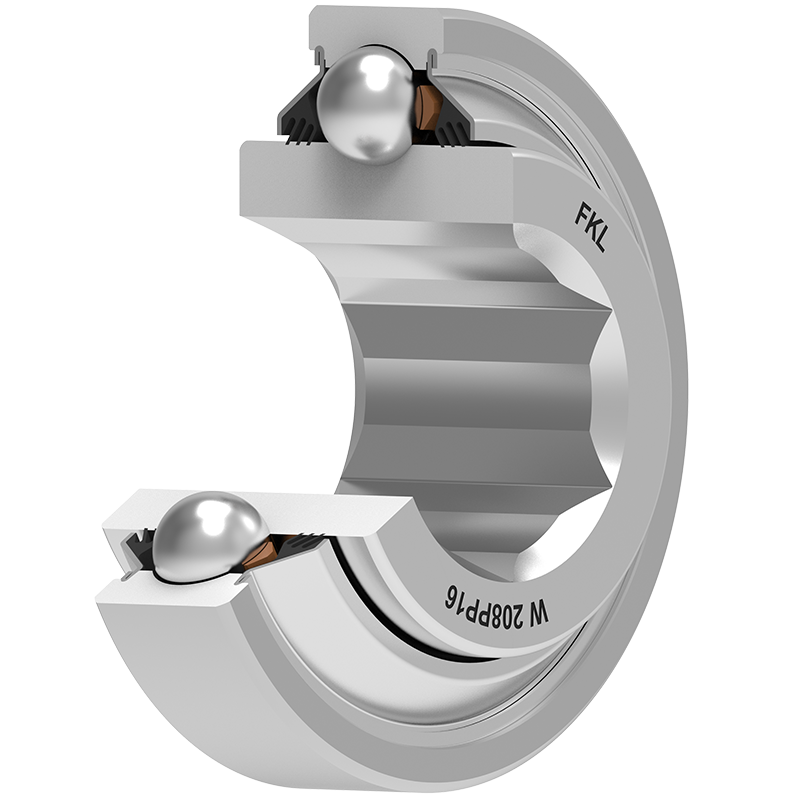

3D view
| a | Size of the hexagon | 31.78 | mm |
| d | Bore diameter | 32.5 | mm |
| D | Outside diameter | 80 | mm |
| B | Width inner ring | 36.5 | mm |
| C | Width outer ring | 18 | mm |
| kg | Mass | 0.68 | kg |
| Cdyn | Dynamic load rating | 30.7 | kN |
| Co | Static load rating | 19 | kN |
| Pu | Fatigue load limit | 0.8 | kN |

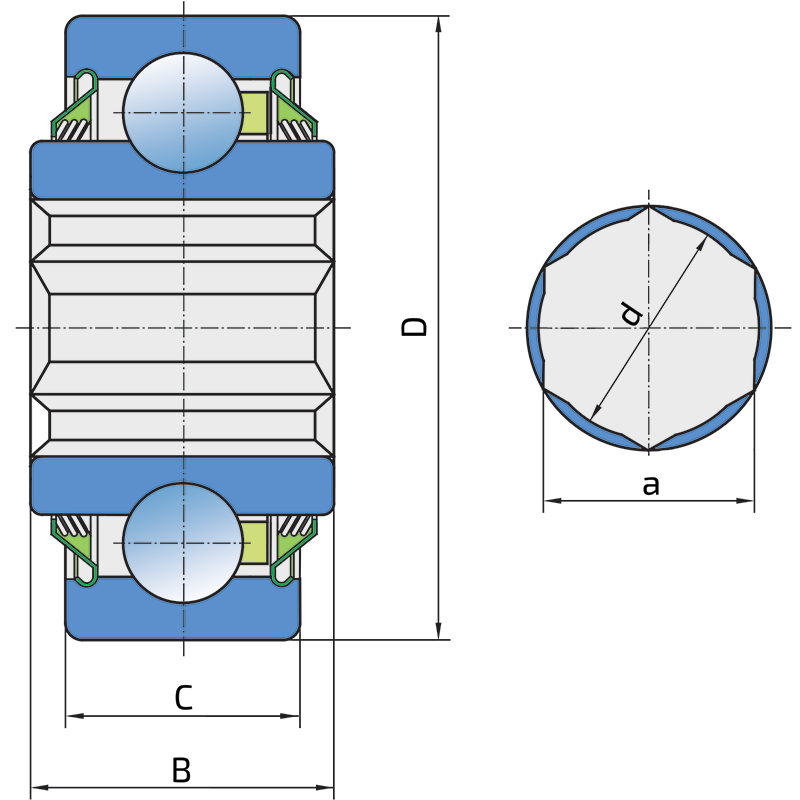

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

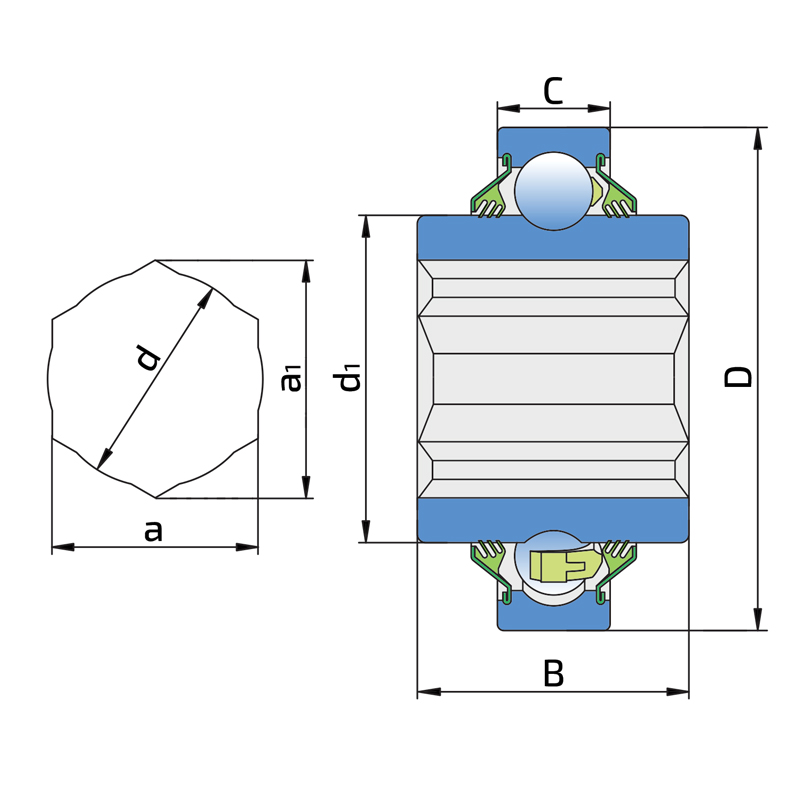

Sealing Drawing
