US 020 2S.SH.C30.C3

Y-Ball Bearings with Standard Inner Ring

Application: Harvester

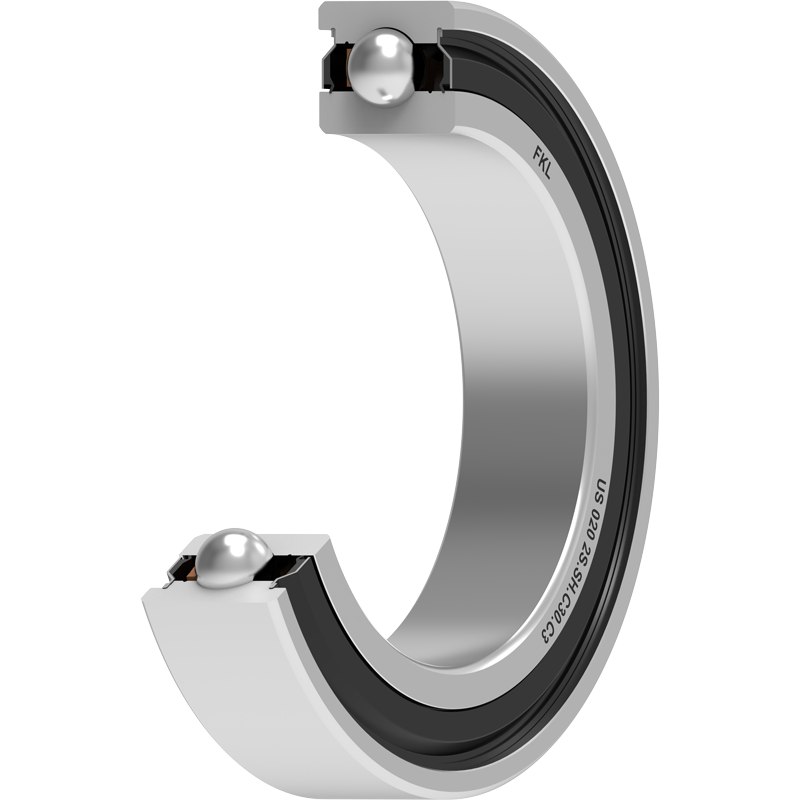

3D view

Technical Specification
d	Bore diameter	100	mm
D	Outside diameter	150	mm
C	Width outer ring	30	mm
B	Width inner ring	30	mm
kg	Mass	1.48	kg
Cdyn	Dynamic load rating	63.7	kN
Co	Static load rating	54	kN
Pu	Fatigue load limit	2.27	kN

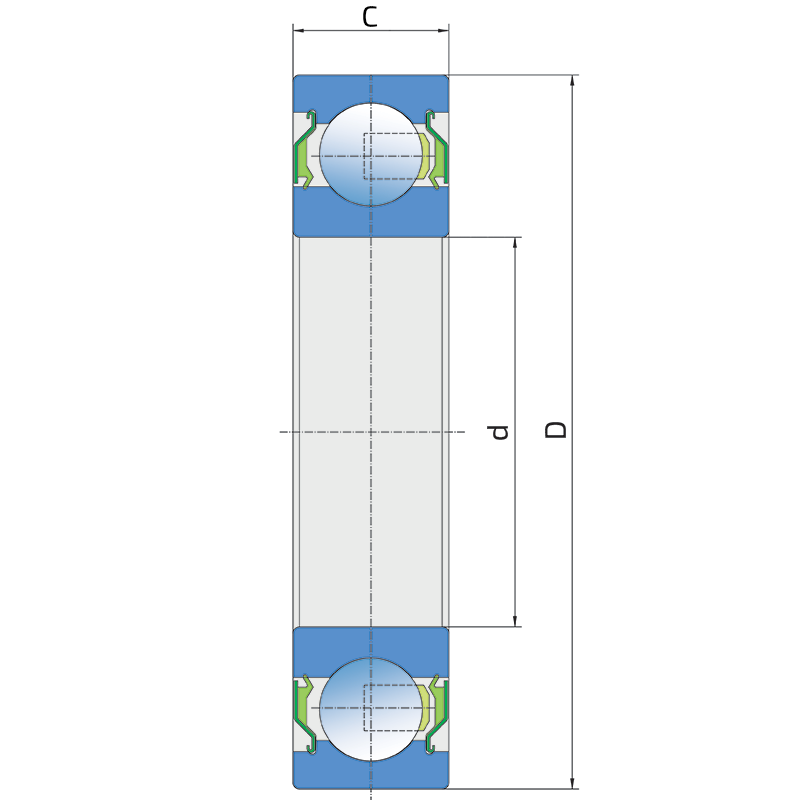

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing
