HARVESTER
UH 209/30 2T.SH
Y-Ball Bearings with Integral Adapter Sleeve
Application: Harvester

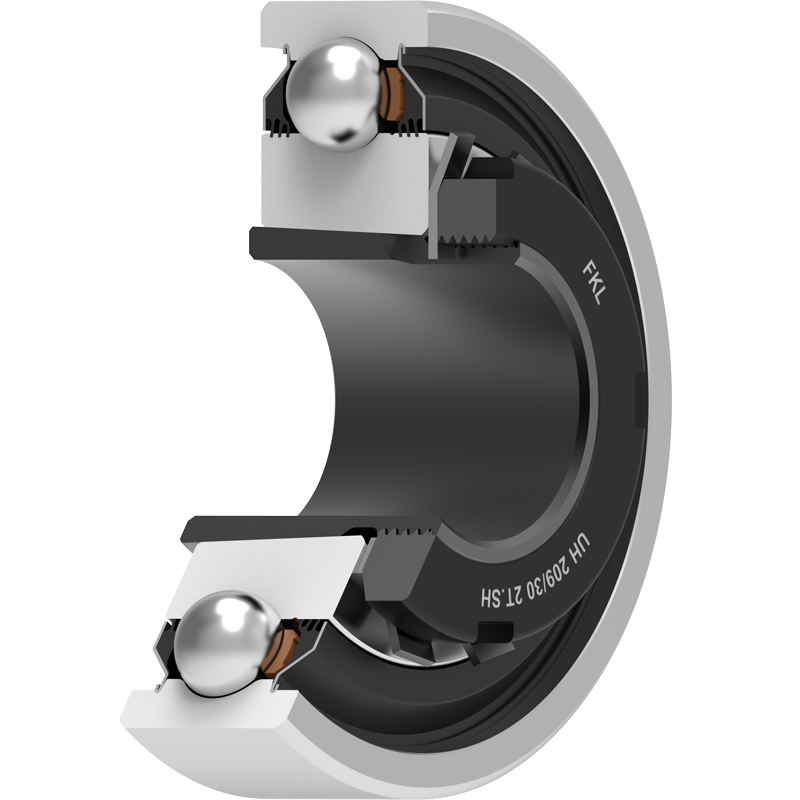

3D view
| d | Bore diameter | 30 | mm |
| D | Outside diameter | 85 | mm |
| W | KM nut outside diameter | 52 | mm |
| D2 | MB Washer outside diameter | 57 | mm |
| B1 | Width adapter sleeve | 35 | mm |
| C | Width outer ring | 23 | mm |
| L | KM nut width | 8 | mm |
| M | Thread adapter sleeve | 35x1.5 | mm |
| kg | Mass | 0.7 | kg |
| Cdyn | Dynamic load rating | 33.2 | kN |
| Co | Static load rating | 21.6 | kN |
| Pu | Fatigue load limit | 0.91 | kN |

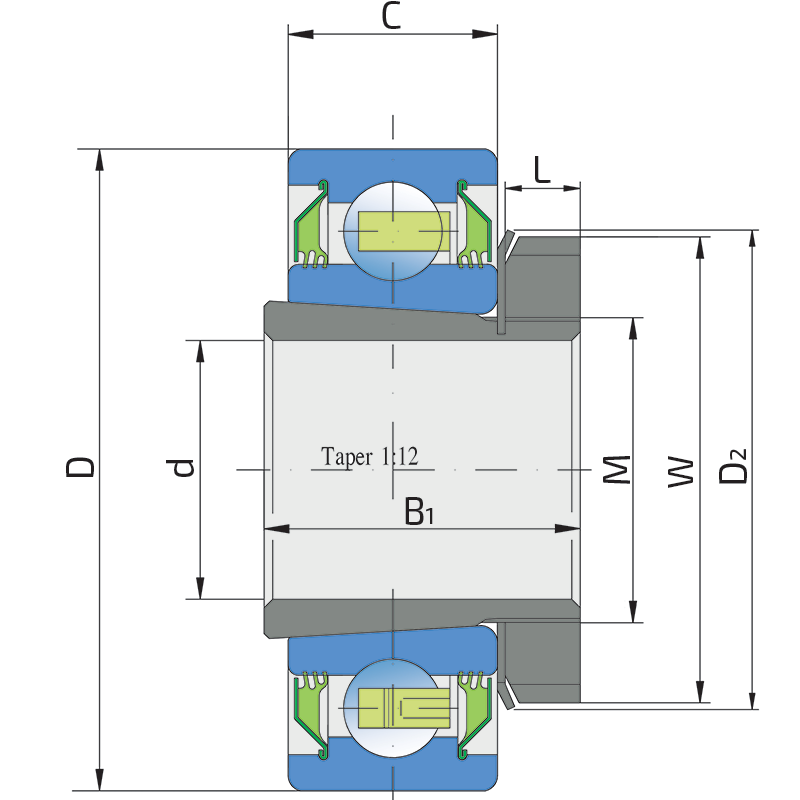

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
