SEEDING MACHINE
SLU 53-012-2T
Four Point Contact Ball Bearing
Application: Seeding Machine

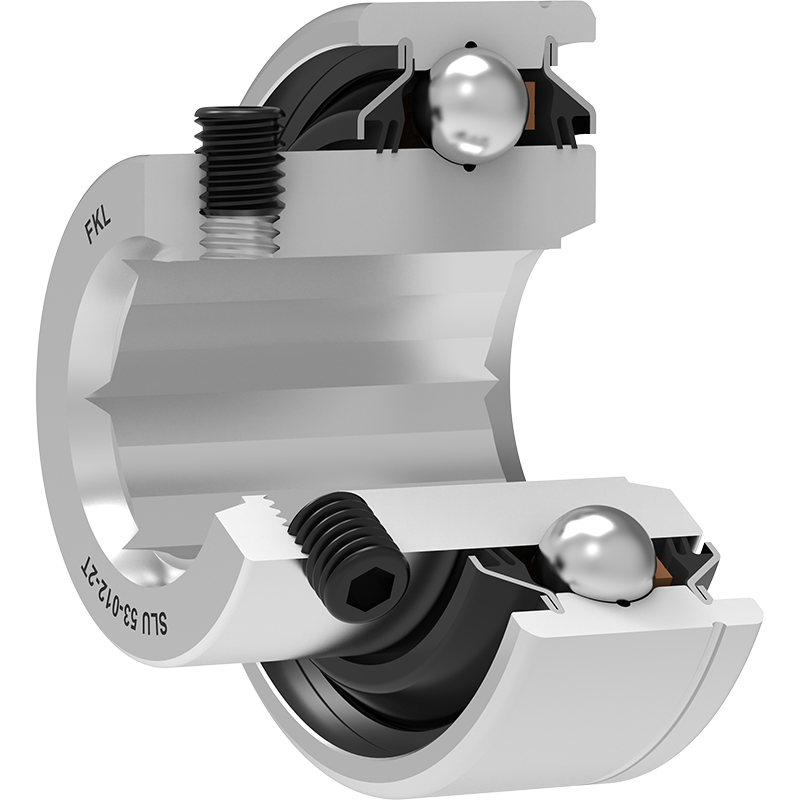

3D view
| Cdyn | Dynamic load rating | 14 | kN |
| Co | Static load rating | 7.8 | kN |
| D | Outside diameter | 53.086 | mm |
| d | Bore diameter | 19.6 | mm |
| C | D-shape hole cut out dimension | 18.288 | mm |
| kg | Mass | 0.257 | kg |
| B | Width inner ring | 34.2 | mm |
| α | Contact angle | 25 | ° |
| a | Shaft size | 19.18 | inch |

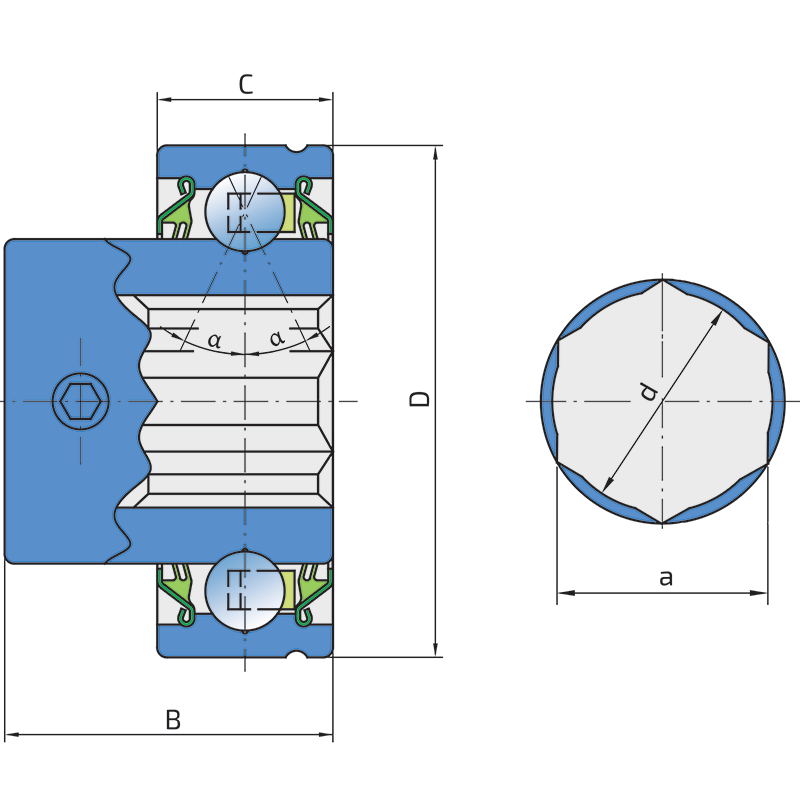

Tehnical Drawing
Sealing
D SEAL / D SEAL (2D)
The double lip seal provides twice as good a seal as the S seal, while the maximum permitted rotational speed is adequately lower, due to the greater friction of the rubber lips against the steel inner ring. However, this rotational speed may be higher than with a 3-lip seal, up to 1500rpm. The sheet metal part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The main area of application of bearings with such sealing are agricultural and construction machines at installation place where the rotational speed is up to 1500 rpm.
Sealing Drawing
