SEEDING MACHINE

VP-M20x1.5/40/72-R(L)

Double Row Ball Bearings With Shaft

Application: Seeding Machine

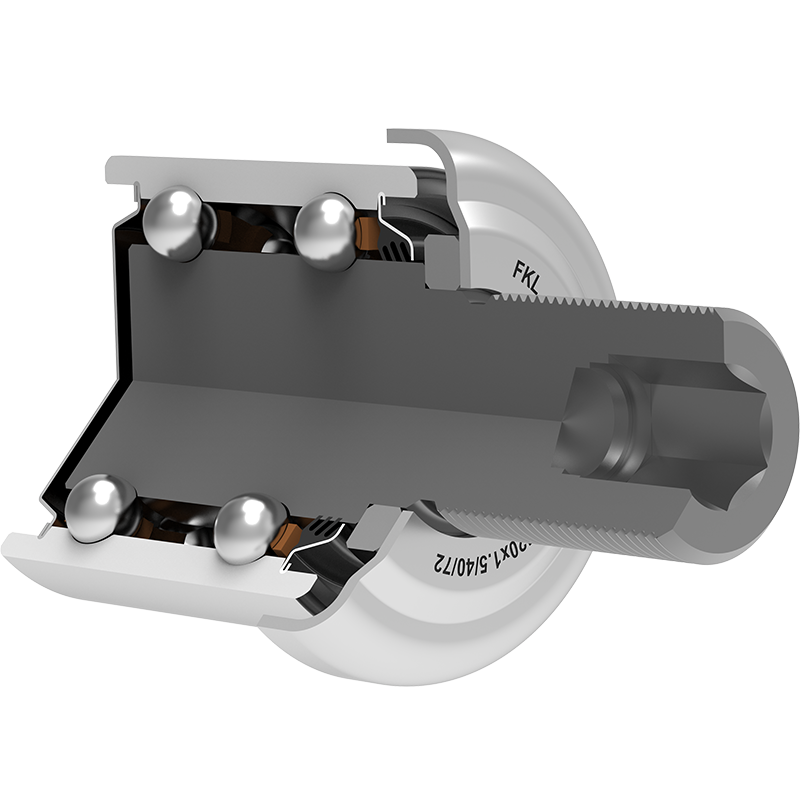

3D view

Technical Specification
aHexagonal bore10mm
dBore diameter24.2mm
DOutside diameter 40mm
LTotal length72mm
L1Installation length44mm
MOuther ThreadM20x1.5mm
αContact angle20°
kgMass0.44kg
CdynDynamic load rating14.2kN
CoStatic load rating8.8kN
PuFatigue load limit0.37kN

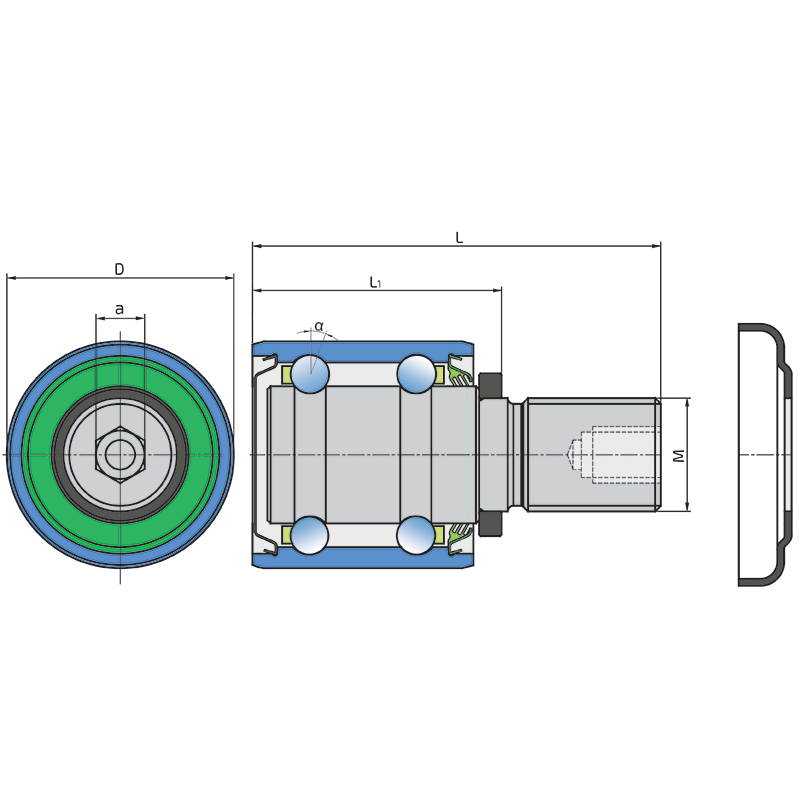

Tehnical Drawing

Sealing

SHEET METAL SHIELD / T SEAL

Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.

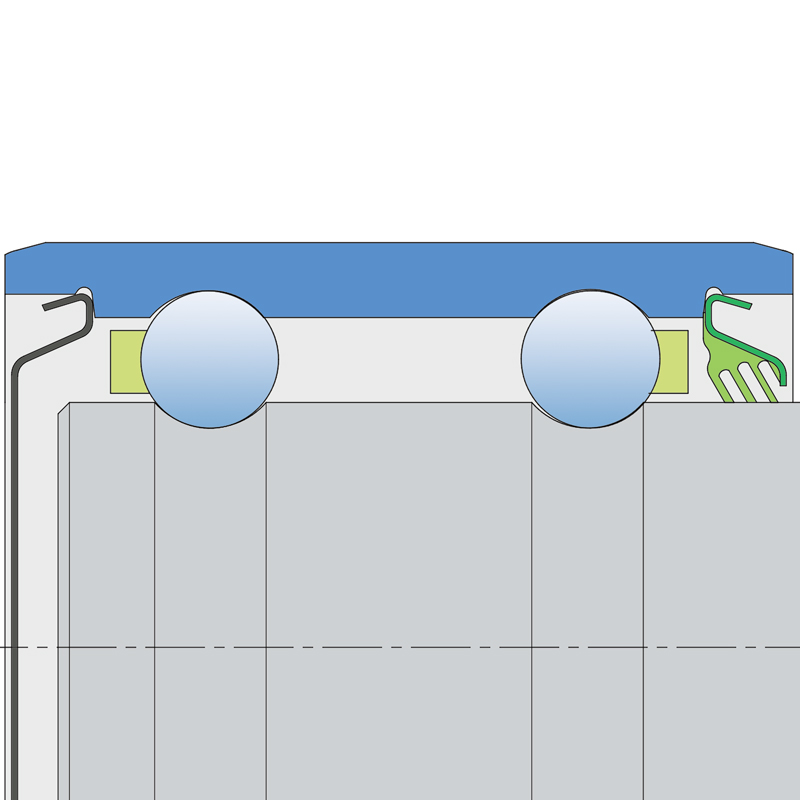

Sealing Drawing

VP-M20x1.5/40/72-R(L)

×

VP-M20x1.5/40/72-R(L)

×

Sealing Type:

The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
