SEEDING MACHINE
VP-16/40/74.5
Double Row Ball Bearings With Shaft
Application: Planter, seed drill

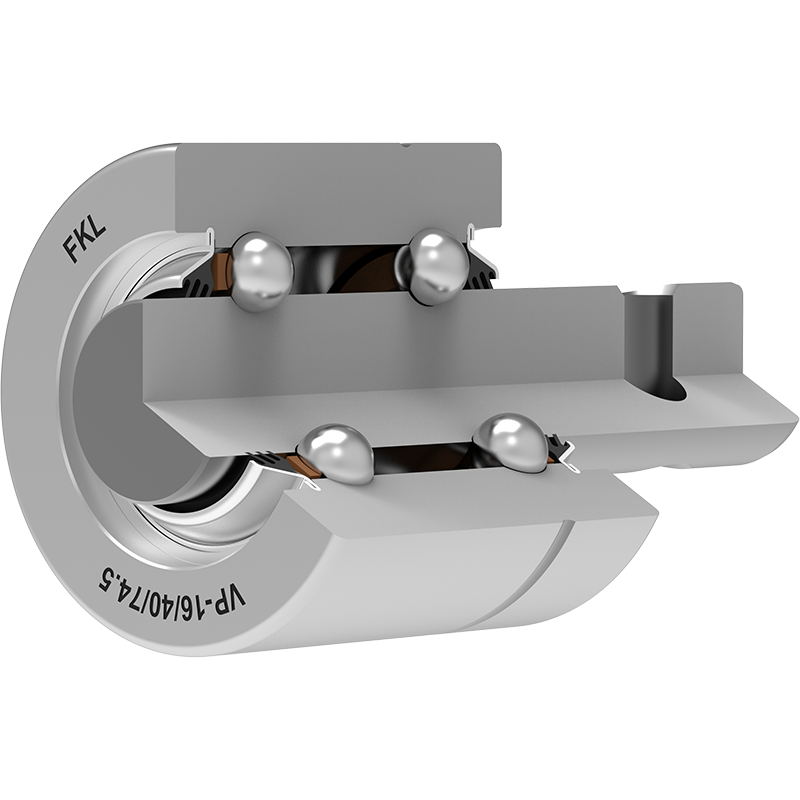

3D view
| D | Outside diameter | 40 | mm |
| d | Bore diameter | 15.918 | mm |
| L | Total length | 74.5 | mm |
| C | Width outer ring | 38.9 | mm |
| E | Hole center line distance to the side face of the inner ring | 12.95 | mm |
| H | Hole diameter | 6.5 | mm |
| α | Contact angle | ° | |
| kg | Mass | 0.44 | kg |
| Cdyn | Dynamic load rating | 5.15 | kN |
| Co | Static load rating | 2.94 | kN |
| Pu | Fatigue load limit | 0.124 | kN |

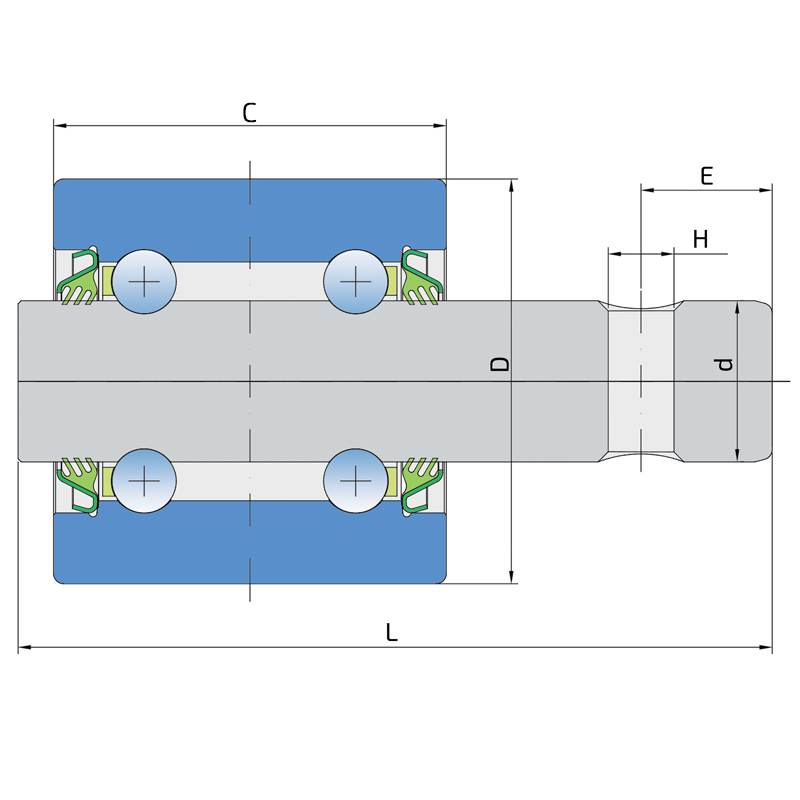

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

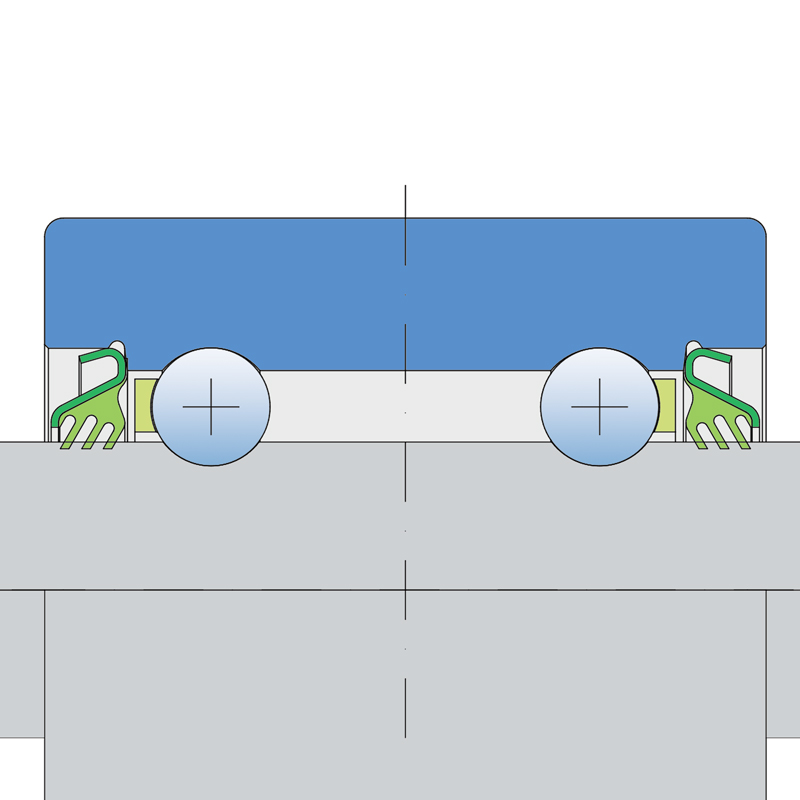

Sealing Drawing
