SEEDING MACHINE
06C04-TS
Four Point Contact Ball Bearing
Application: Disc opener for planter, grain drill and disc seed drill

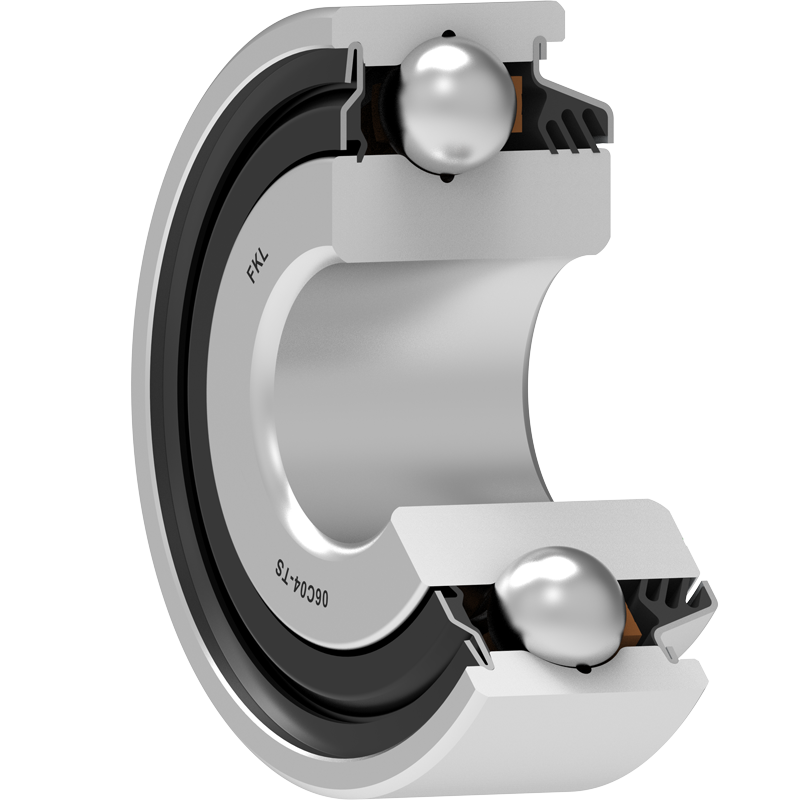

3D view
| d | Bore diameter | 16 | mm |
| D | Outside diameter | 45.2 | mm |
| B | Width inner ring | 18.67 | mm |
| C | Width outer ring | 15.4 | mm |
| α | Contact angle | 25 | ° |
| kg | Mass | 0.23 | kg |
| Cdyn | Dynamic load rating | 19.6 | kN |
| Co | Static load rating | 12.5 | kN |
| Pu | Fatigue load limit | 0.525 | kN |

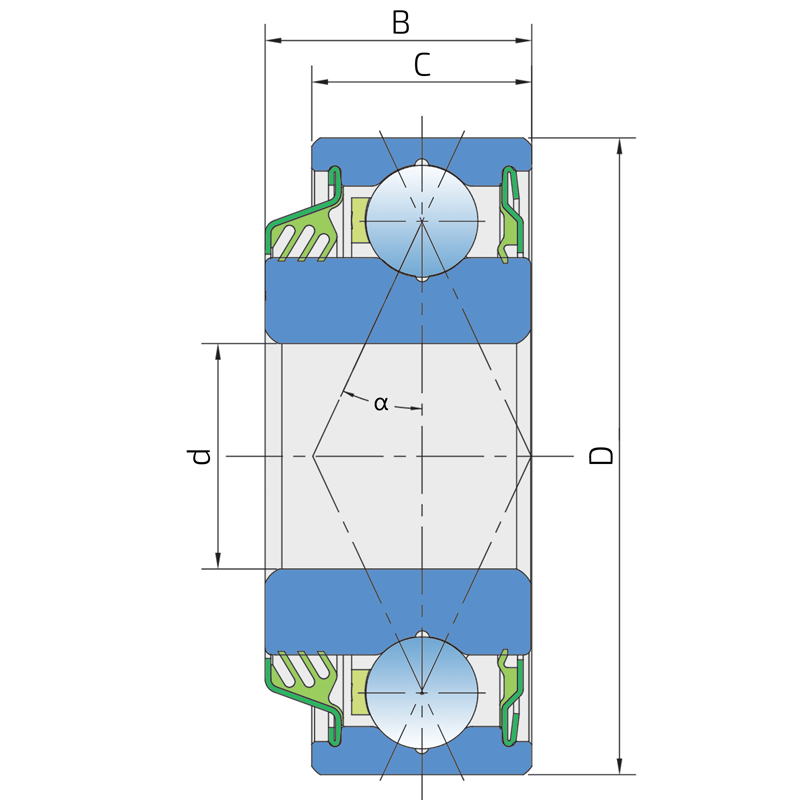

Tehnical Drawing
Sealing
S SEAL / T SEAL
S seal on the base side and 3-lip seal on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration.

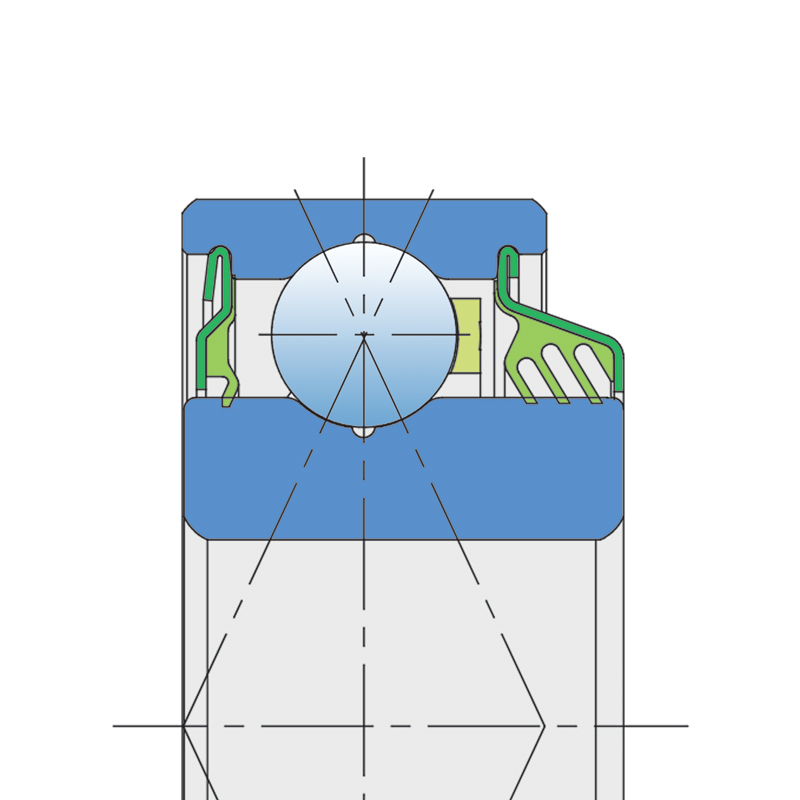

Sealing Drawing
