DISC HARROW
GWST 209PPB26
Square Series
Application: Disc Harrow

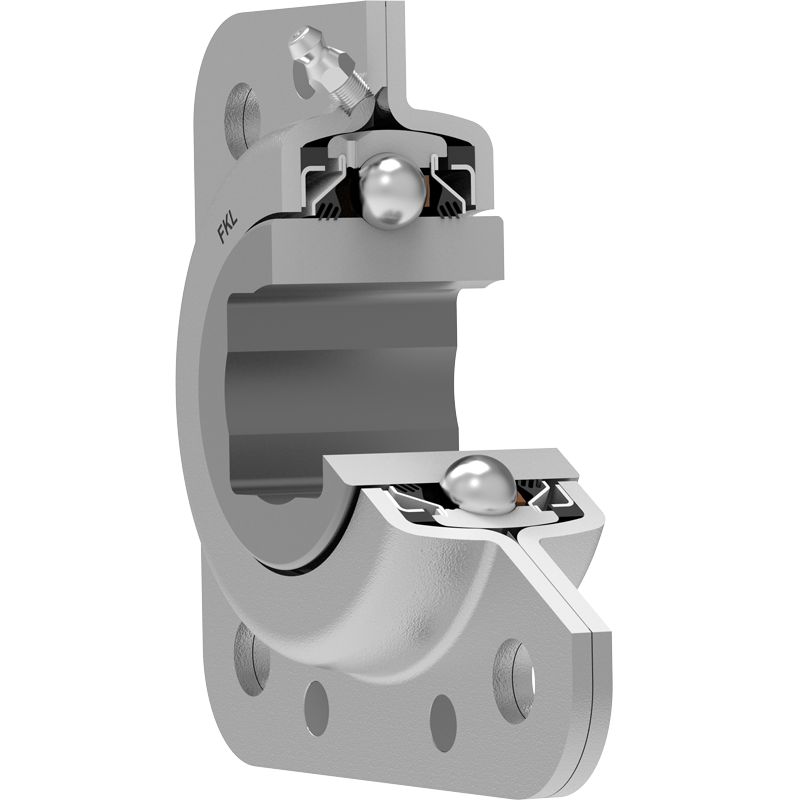

3D view
| a | Hexagonal bore | 25 | mm |
| d | Bore diameter | 2.765 | inch |
| d | Bore diameter | 45.831 | mm |
| B | Width inner ring | 42.85 | mm |
| C | Width outer ring | 22 | mm |
| a | Shaft size | 25.4 | inch |
| Da | Centering diameter | 97 | mm |
| L | Overall length | 127 | mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 39 | mm |
| A1 | Width of the top of the housing | 3.5 | mm |
| J | Pitch circle diameter | 127 | mm |
| N | Diameter of attachment slot | 13.5 | mm |
| Fr | Radial load | 7.7 | kN |
| Fa | Axial load | 3.8 | kN |
| kg | Mass | 1.78 | kg |
| Cdyn | Dynamic load rating | 32.5 | kN |
| Co | Static load rating | 20.4 | kN |
| Pu | Fatigue load limit | 0.857 | kN |

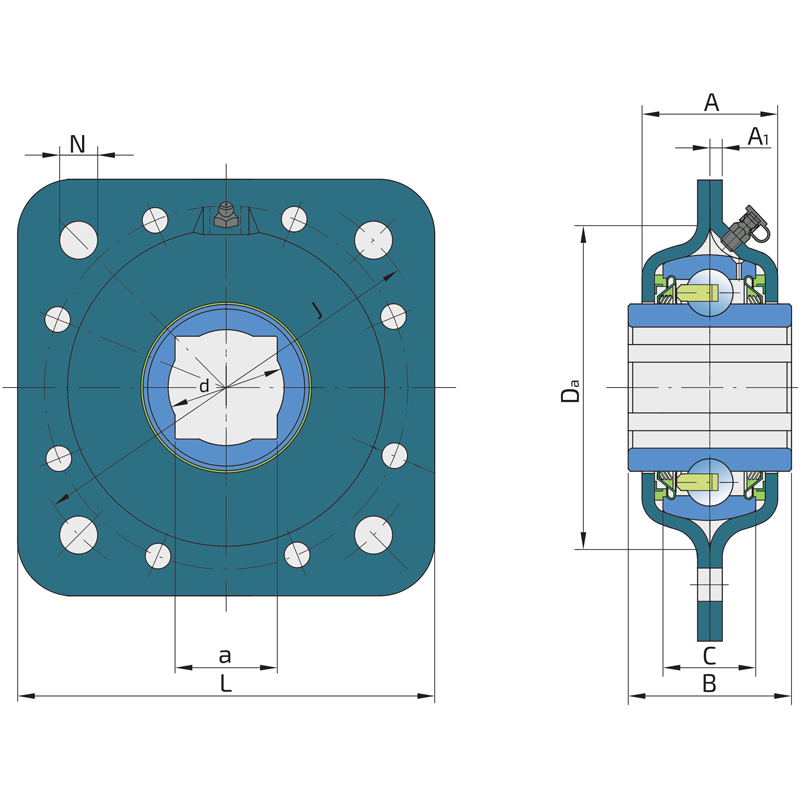

Tehnical Drawing
Sealing
RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG
3-lip seal seal on both sides provide long lasting protection of the bearing against the penetration of contaminants. Rubber plugs are protecting the area between the bearing and sheet metal housing.
Sealing Drawing
